PIX-CADDY 2 (Optional)

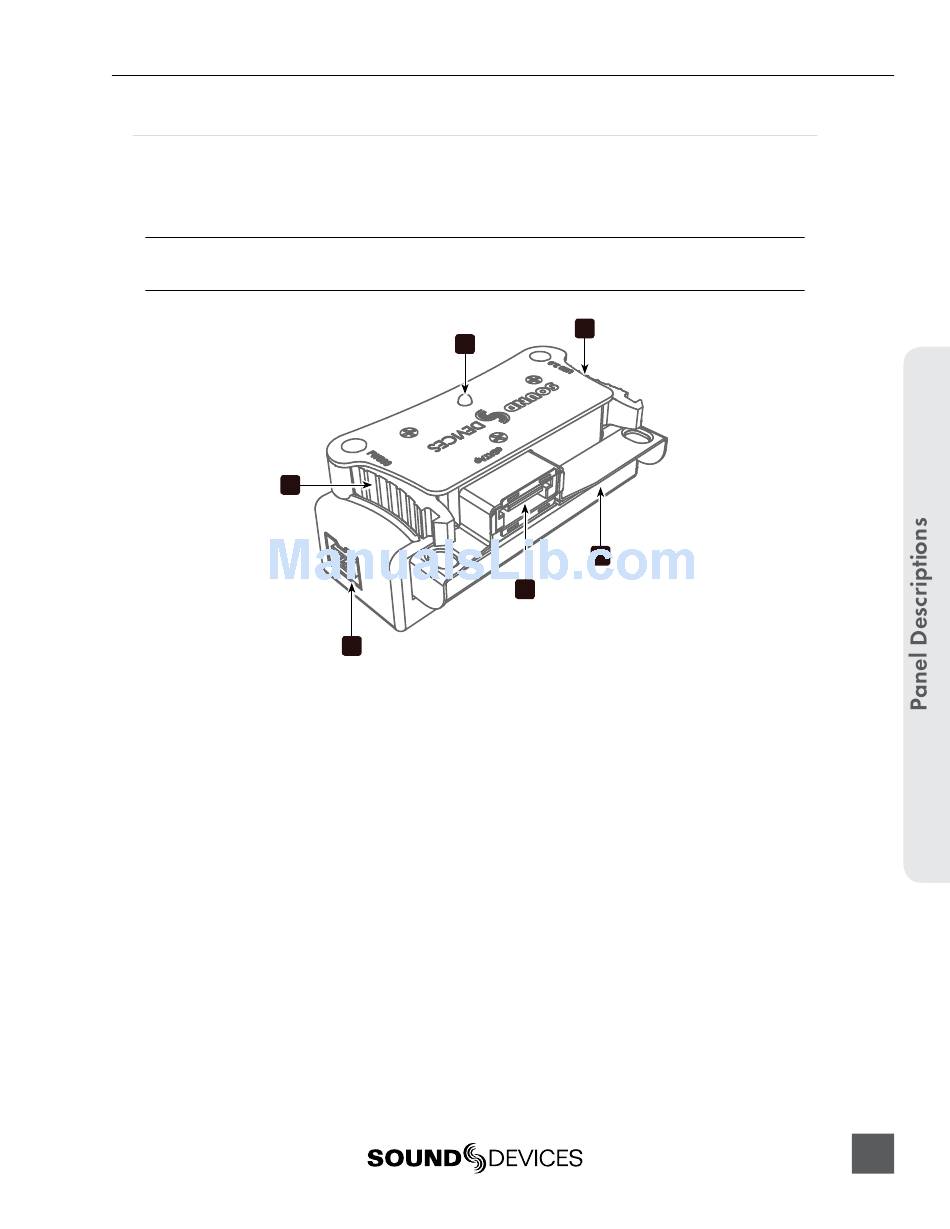

The PIX-CADDY 2 is an accessory to connect approved 2.5" drives to the front-panel drive bays.
When removed from a PIX 260i, the PIX-CADDY 2 operates as a high-speed drive interface to Mac
OS and Windows computers via the onboard FireWire800, USB 3.0, or the optional PIX-DOCK Thun-
derbolt interface.
For reliable operation, it is imperative that the 2.5" drive be firmly screwed to the PIX-CADDY 2 with
the supplied screws.
6
FireWire 800
1)
FireWire 800 or 400 (backward compat-
ible). Requires a powered FireWire 800 or
400 port.
eSATAp
2)
High-speed data transfer over 5V
eSATAp. Requires a 5V powered eSATAp
port.
USB 3.0
3)
High-speed data transfer over USB 3.0
(backward compatible with USB 2.0).
2.5" Drive Slot
4)
Connector for approved 2.5-inch SATA II
and SATA III drives. Sound Devices main-
tains a list of tested and approved SSD
drives for use with PIX video recorders.
Visit www.sounddevices.com/approved
an up-to-date list of tested and approved
drives.
PIX 260i User Guide and Technical Information
5
2
1
5)
6)
7)
for
3
4
Activity LED
Illuminates when recording, playing,
reading, or writing to the attached 2.5"
drive. Do not remove the caddy while the
Activity LED is illuminated. LED does not
illuminate when connected to a computer's
eSATA port.
Release Latches
Secures the PIX-CADDY to the recorder.
Press both latches to remove the caddy
assembly.
Screw Holes
For reliable operation, it is imperative that
the 2.5" drive be firmly screwed to the
PIX-CADDY 2 with the supplied screws.
5
