Menu and Navigation

LCD

From the Main View, press the LCD button to toggle the On-Screen Dis-
play (OSD) on or off, press and hold the LCD button for two seconds to
turn off the LCD, press again to turn on. From all other views, press the
LCD button to return to the Main View.

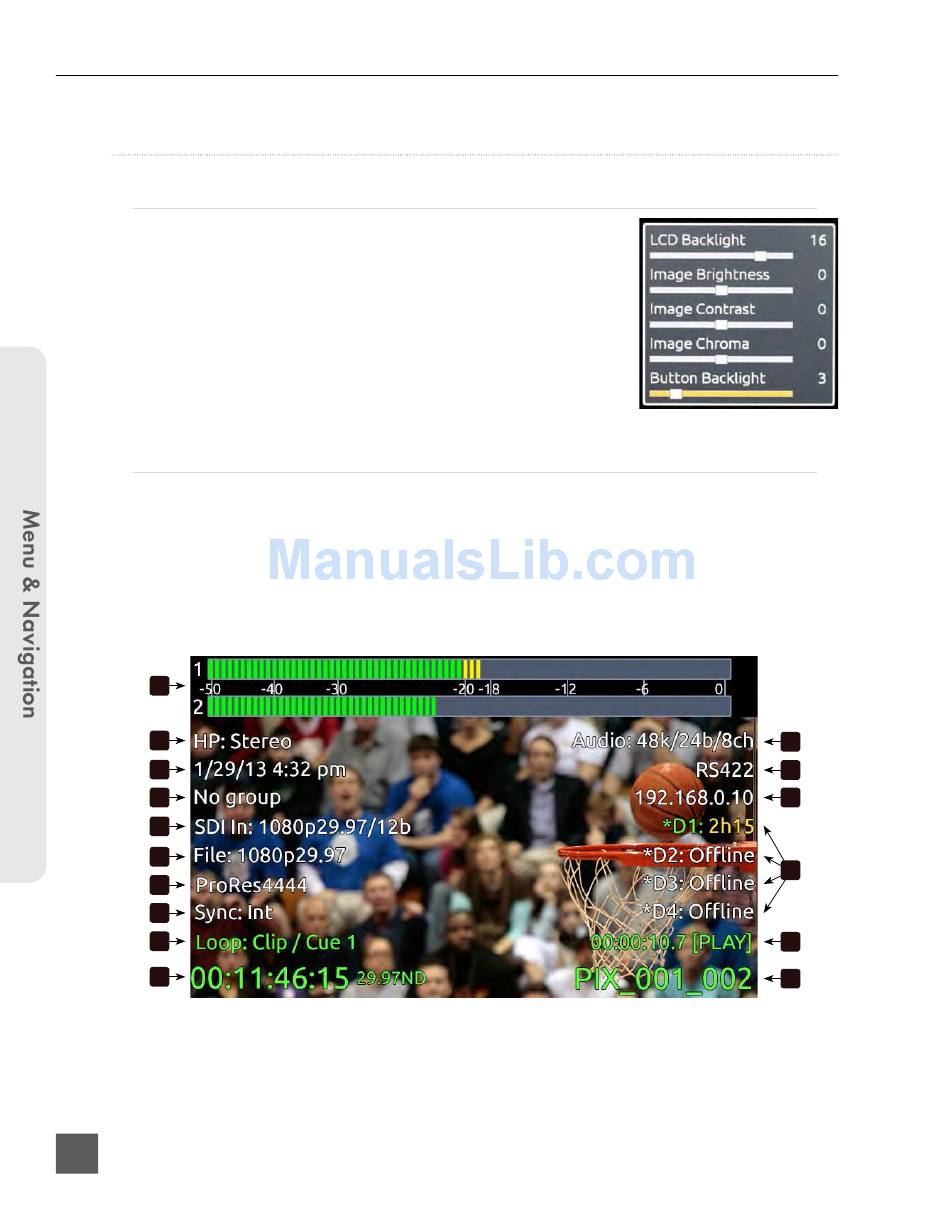

The LCD Control Panel provides adjustments to the LCD backlight,
button backlight, image brightness, image contrast, and image chroma.
To access the LCD Control Panel, press LCD button + Control Knob.
The parameter with the orange slider bar is the selected parameter. To
toggle through the parameters press the Control Knob, to adjust the
setting turn the Control Knob. Press LCD again to exit back to the Main
View.

Main View

The Main View displays the live or playback video and the On-screen Display. The Main View is the
default view which appears when no other views or menus are selected.
On-screen Display
The On-screen Display (OSD) provides information superimposed over the Main View. From the
Main View, the LCD button will toggle the OSD on and off. Items included in the OSD are config-
ured with the Setup Menu option On-Screen Display. When factory settings are loaded from the
Quick Setup menu item all OSD items are shown.
