PIXNET All Units Page

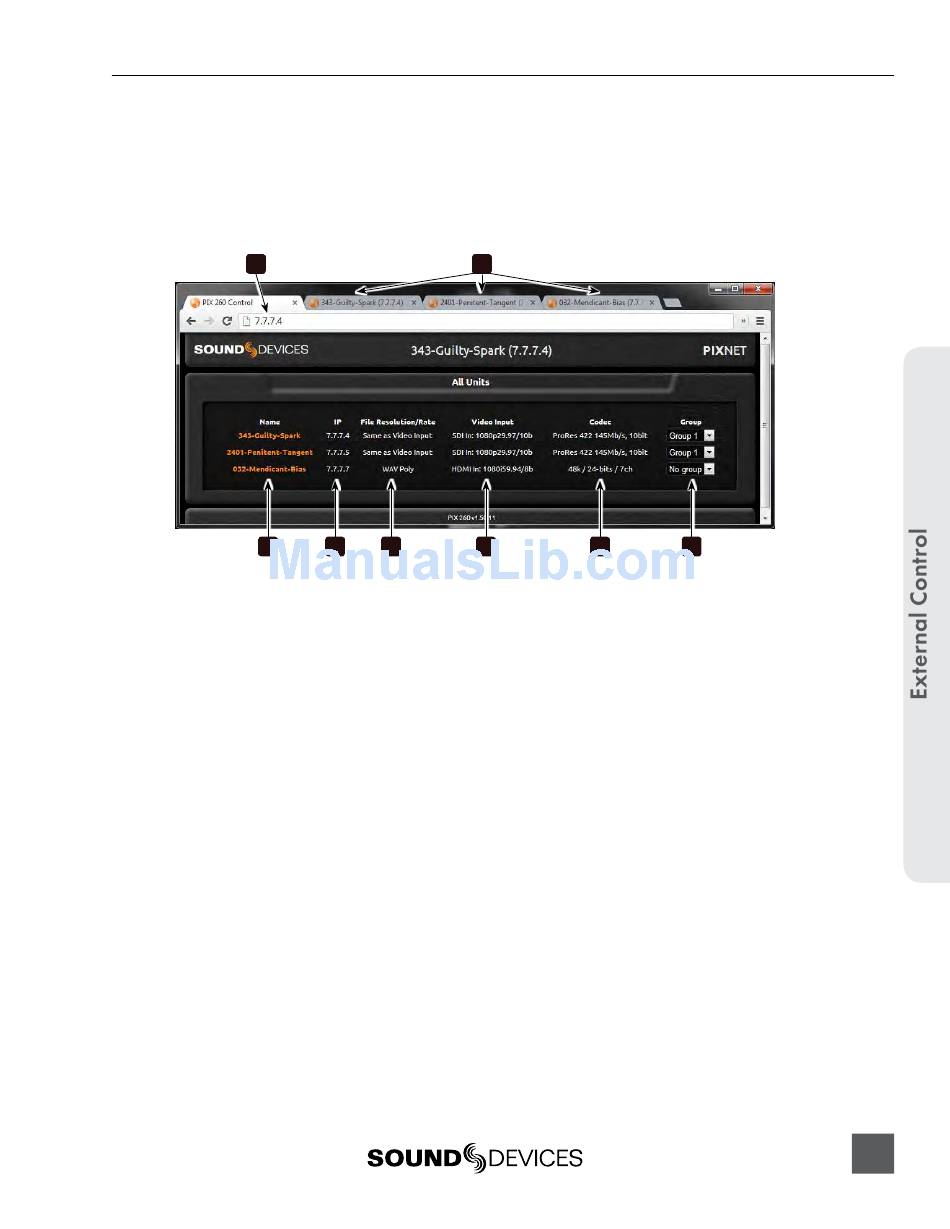

When PIXNET is launched the first page displayed is the All Units Page. This is a quick overview of
all PIX 260i units connected to the network. Information available is PIX Name, IP Address, Video
Input details, Video Codec details, and assigned Group number. From this page, a PIX 260i can be
alloted to a particular group
Unit Page for that particular PIX 260i.
1
3
Address Bar
1)
Type in PIX 260i IP Address to connect to
PIXNET.
Unit Page Tabs
2)
Each Unit Page can be opened in a sepa-
rate browser tab
PIX 260i Name
3)
Lists all PIX 260i connected to the net-
work. Click on a Name to open the Unit
Page for a particular unit.
IP Address
4)
Displays the IP Address for all PIX 260i
units currently on the network.
File Resolution / Rate
5)
When unit is in Video Mode: Displays
the resolution and frame rate that the
unit is configured to record. When unit
is in Audio Mode: Displays WAV Poly or
WAV Mono.
PIX 260i User Guide and Technical Information
(See "PIX Grouping", page
2
4 5 6
45). Click on the PIX 260i name to open the
7 8
Input Signal Information
6)
Displays the resolution, frame rate, and
source (SDI or HDMI) of incoming video
signal.
Codec List
7)
When unit is in Video Mode: Displays
details of the video codec the unit is set to
record. When unit is in Audio Mode: Dis-
plays sample rate, but depth, and armed
track count.
Group
8)
Displays Group settings for all PIX 260i
units currently on the network. Group
settings can be edited using the drop-
down menu for each PIX 260i.
