Panel Descriptions

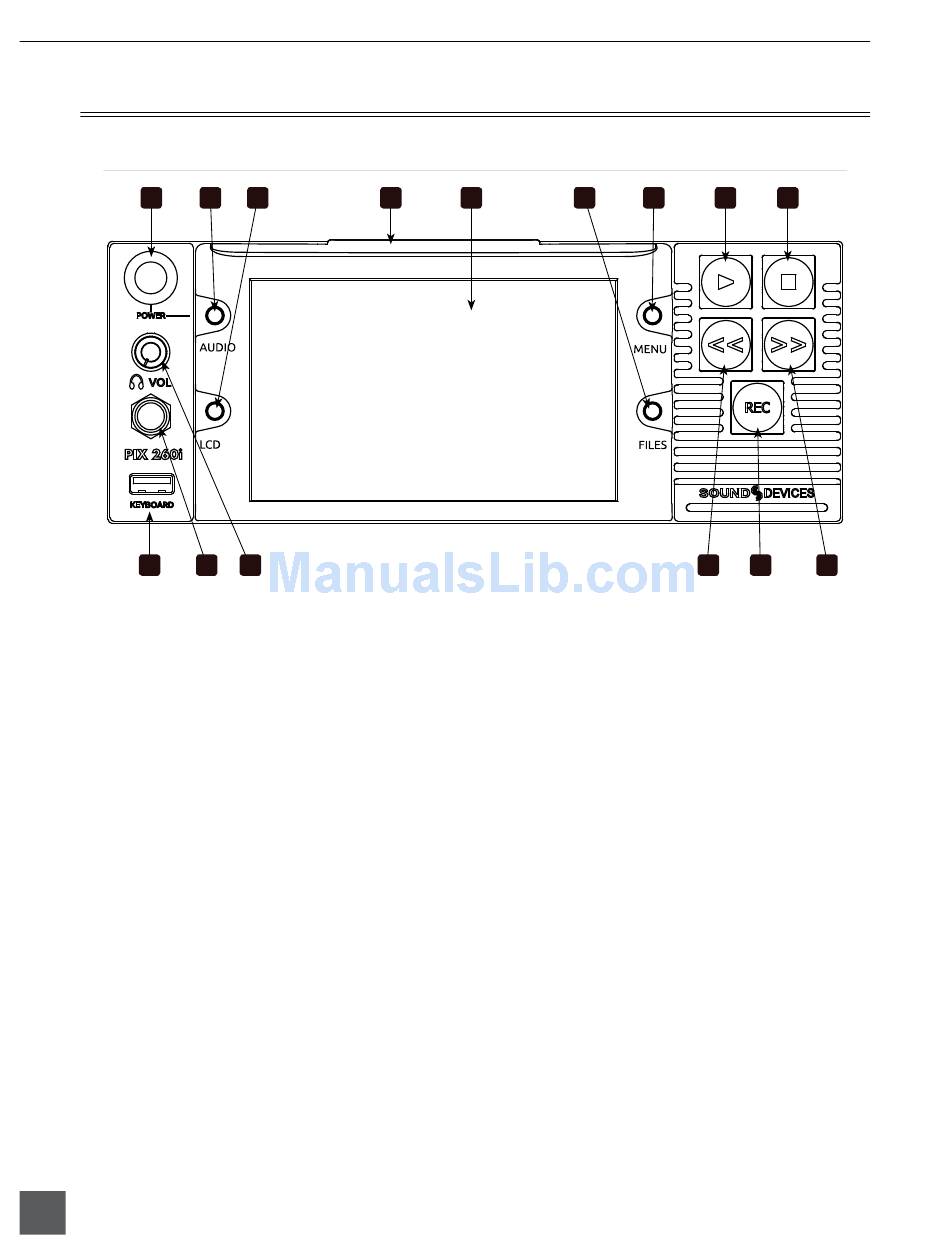

Front Panel

1
15
1) Control Knob
The Control Knob can be both turned and
pressed. Use the Control Knob to navi-
gate between menu settings and to select
menu items. Pressing during playback or
stop will toggle to Shuttle mode. Turning
while playback is paused will jog forward
or backward by single frames.
2)
Audio Button
Displays the Audio Screen. From the
Audio Screen: Select audio input sources,
Arm/disarm tracks, Set audio input gain
and delay,View audio input levels, and
Edit audio track names.
3)
LCD Button
Toggles the On-Screen Display. Hold for 2
seconds to toggle LCD on/off.
4)
Handle
This handle is designed to provide a grip-
ping point for tilting down the LCD.
5)
LCD Display
Displays operating information when the
On-Screen Display (OSD) is active
On-Screen
video, and playback video. 5-inch dis-
play; 800x480 resolution.
4
v . 1 .04 Features and specifications are subject to change . Visit www .sounddevices .com for the latest documentation .
2 3
14 13
Display), user interface, source
4 5
6) Files Button
Displays the File Browser Screen. Press
during record or playback to add a Cue
Marker, press and hold to delete a Cue
Marker (Video Mode).
7)
Menu Button
Displays the Setup Menu.
8)
Play Button
Plays the most recently recorded file
when pressed. In the File List View, plays
the selected video file from the File List.
Pauses video during playback. Press and
hold Play to activate Loop Play.
9)
Stop Button
Stops an active recording or playback.
When Stopped, hold the Stop button to
display the next filename.
10) Fast-Forward Button
When Stopped, press Fast-Forward to
cue up the next file for Playback. During
Playback or Pause, press once to jump
to the next Cue Marker, press and hold
(see to increase playback speed. Continue to
hold for faster speeds.
