FF Button
10)
When Stopped, press to cue up the next
file for Playback. During Playback or
Pause, press once to jump to the next Cue
Marker, press and hold to increase play-
back speed. Continue to hold for faster
speeds.
REC Button
11)
Begins recording. Optional: Splits the
recording and begins writing a new
file when pressed while recording.
[System - Rec Button File Split] (Not
available when recording mono WAV files)
RW Button
12)
When Stopped, press to cue up the previ-
ous file for Playback. During Playback
and Pause, press once to jump to the
previous Cue Marker or beginning of the
file, press and hold to reverse playback
speed. Continue to hold for faster reverse
speeds.

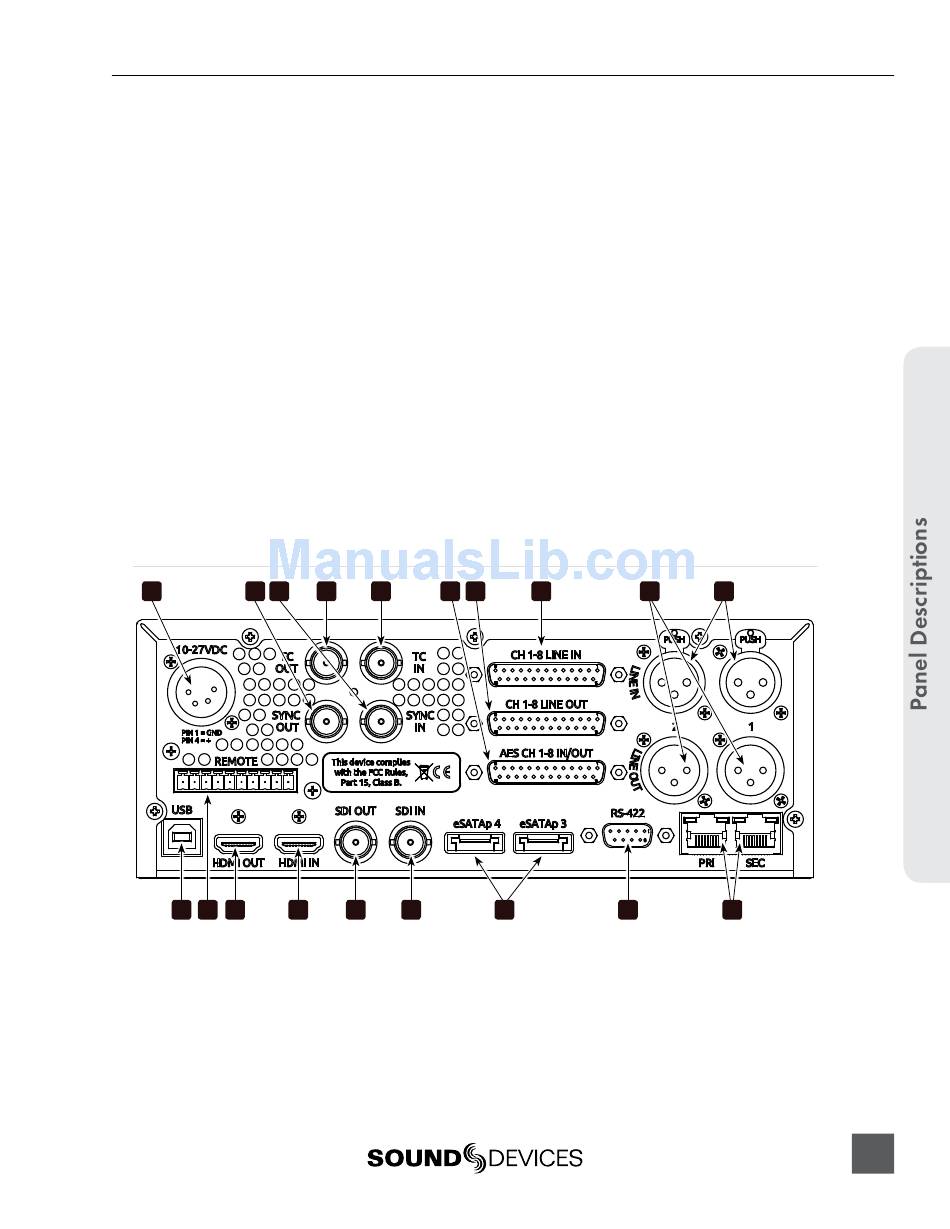

Rear Panel

1 2 3
19 18 17 16
DC Power Input (XLR 4-pin)
1)
Accepts 10–27 volts DC. XLR 4-pin con-
nector is wired pin-1 ground, pin-4 posi-
tive (+).
SYNC Output (BNC)
2)
Selectable genlock or wordclock output.
Configured with Setup Menu option
[Timecode/Sync - Sync Out].
4 5 6 7
15 14 13
PIX 260i User Guide and Technical Information
Headphone Volume Knob
13)
Adjusts the overall volume of the head-
phones. NOTE: the headphone output is
capable of ear-damaging levels. Take care
when adjusting among signal sources.
Headphone Output 1/4"
14)
TRS stereo headphone connector. Can
drive headphones from 8 to 100 ohms to
very high headphone levels.
USB Keyboard Input
15)
USB A female connector to connect a USB
keyboard. Keyboards can be used to navi-
gate, control, and enter metadata into the
PIX 260i. Keyboards with integrated USB
hubs are not compatible.
8 9
12
SYNC Input (BNC)
3)
Selectable Genlock or Wordclock input.
Configured with Setup Menu options
[Timecode/Sync - Sync Ref - ...]
Timcode Output (BNC)
4)
SMPTE timecode output.
Timcode Input (BNC)
5)
SMPTE timecode input.
10
11
