115C and 117C
Users Manual

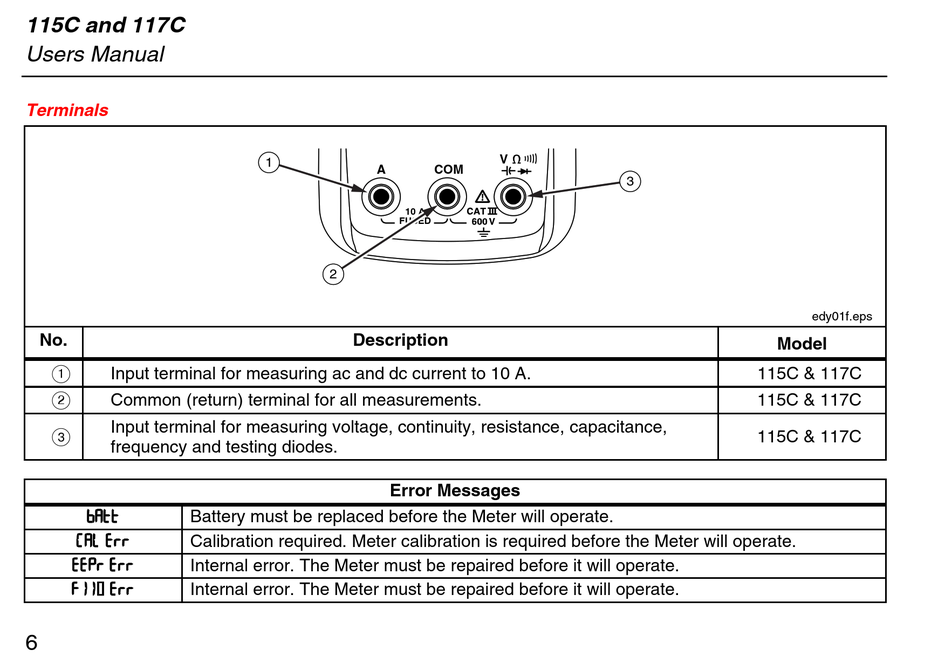

Terminals

No.
A
Input terminal for measuring ac and dc current to 10 A.
B
Common (return) terminal for all measurements.
Input terminal for measuring voltage, continuity, resistance, capacitance,
C
frequency and testing diodes.
bAtt
Battery must be replaced before the Meter will operate.
CAL Err
Calibration required. Meter calibration is required before the Meter will operate.
EEPr Err
Internal error. The Meter must be repaired before it will operate.
F11 Err
Internal error. The Meter must be repaired before it will operate.
6
1
A
COM
10 A
FUSED
2
Description
Error Messages
V
3
edy01f.eps
Model
115C & 117C
115C & 117C
115C & 117C
