Fluke 1587 FC, 1587, 1577 Manual

Introduction

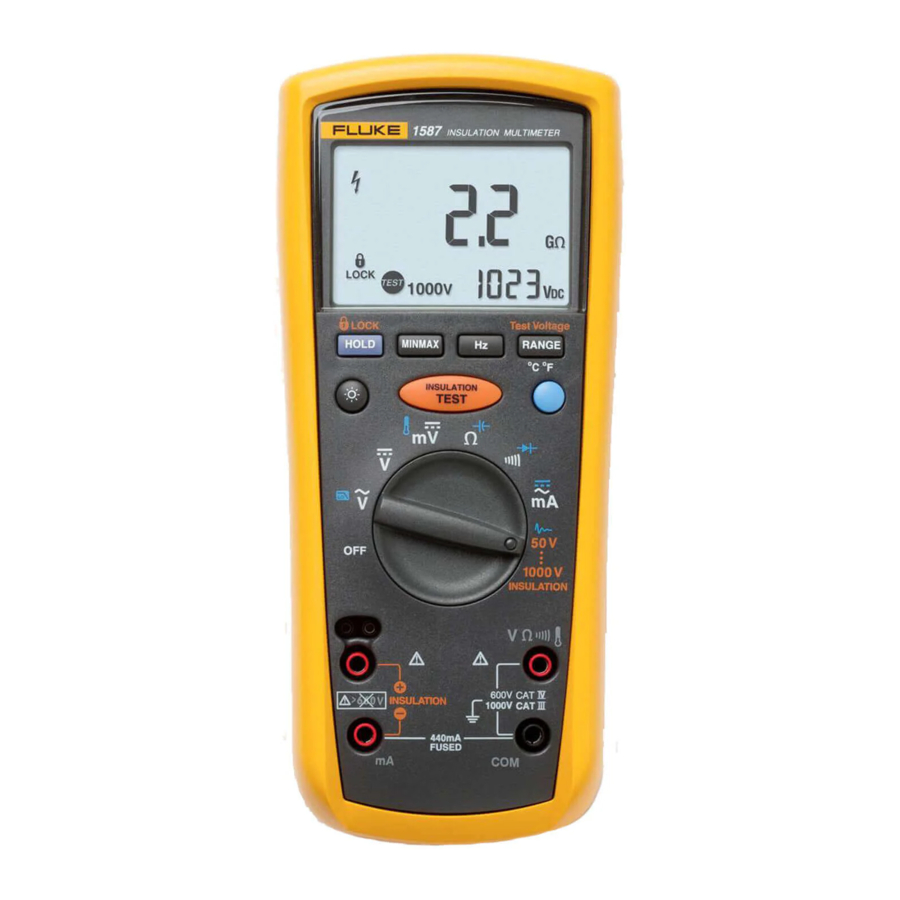

The Fluke 1587 FC, 1587, 1587T, and 1577 are battery-powered, true-RMS insulation multimeters (the Product or Meter) with a 6000-count display. Although this manual describes the operation of all models, all illustrations and examples assume use of Model 1587 FC.

The Meter measures or tests:

• AC / DC voltage and current
• Resistance
• Continuity
• Insulation resistance
• Voltage and current frequency
• Diodes (all 1587 models)
• Temperature (all 1587 models)
• Capacitance (all 1587 models)

The 1587 FC supports the Fluke Connect™ Wireless System (may not be available in all regions). Fluke Connect™ is a system that wirelessly connects your Meter with an app on your smartphone or tablet. The app shows the Meter measurement on your smartphone or tablet screen. You can save these measurements with Fluke Connect™ to share with your team.

Contacting Fluke

To contact Fluke, call one of the following telephone numbers:

• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: +31 402-675-200
• Japan: +81-3-6714-3114
• Singapore: +65-6799-5566
• Anywhere in the world: +1-425-446-5500

Or, visit Fluke's website at www.fluke.com.

To register your product, visit http://register.fluke.com.

To view, print, or download the latest manual supplement, visit http://us.fluke.com/usen/support/manuals.

Safety Information

A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test. See Table 1 for a list of symbols used on the Meter and in this manual.

To prevent possible electric shock, fire, or personal injury:

• Read all safety information before you use the Product
• Examine the case before you use the Product. Look for cracks or missing plastic. Carefully look at the insulation around the terminals.
• Do not use test leads if they are damaged. Examine the test leads for damaged insulation and measure a known voltage.
• Do not use the Meter around explosive gas, vapor, or in damp or wet environments.
• Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc.
• Only use probes, test leads, and accessories that have the same measurement category, voltage, and amperage ratings as the Product.

• Keep fingers behind the finger guards on the probes.
• Do not exceed the Measurement Category (CAT) rating of the lowest rated individual component of a Product, probe, or accessory.
• Use the Product only as specified, or the protection supplied by the Product can be compromised.
• Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame-resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed.
• Do not work alone.
• Do not apply more than the rated voltage between the terminals or between each terminal and earth ground.
• Limit operation to the specified measurement category, voltage, or amperage ratings.
• Use Product-approved measurement category (CAT), voltage, and amperage rated accessories (probes, test leads, and adapters) for all measurements.

• Measure a known voltage first to make sure that the Product operates correctly.
• Use the correct terminals, function, and range for measurements.
• Measure for hazardous voltage without the Low-Pass Filter.
• Do not use the Product if it operates incorrectly.
• Replace the battery when the low battery indicator () shows to prevent incorrect measurements.
• Remove the batteries if the Product is not used for an extended period of time, or if stored in temperatures >50°C. If the batteries are not removed, battery leakage can damage the Product.
• The battery door must be closed and locked before you operate the Product.
• Remove all probes, test leads, and accessories before the battery door is opened.
• Do not use the Product if it is damaged.
• Disable the Product if it is damaged.

Table 1. Symbols

Symbol	Description	Symbol	Description
	WARNING.RISK OF DANGER.		WARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
	Consult user documentation.		Battery (Low battery when shown on display.)
	AC (Alternating Current)		Earth
	DC (Direct Current)		Fuse
	Double Insulated		Conforms to relevant South Korean EMC Standards.
	Conforms to relevant Australian EMC standards.		Certified by CSA Group to North American safety standards.
	Conforms to European Union directives.		Certified by TÜV SÜD Product Service.
	Measurement Category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation.
	Measurement Category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation.
	Measurement Category IV is applicable to test and measuring circuits connected at the source of the building's low-voltage MAINS installation.
	This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation" product. Do not dispose of this product as unsorted municipal waste.

Unpack List

Table 2 is a list of accessories included with your Product.

Table 2. Unpack List

Accessories

Table 3 is list of optional accessories that are available for the Product.

Table 3. Accessories

Hazardous Voltage

To alert you to the presence of a potentially hazardous voltage, when the Meter detects a voltage ≥30 V or a voltage overload (), the symbol is displayed.

Test Lead Alert

To remind you to check that the test leads are in the correct terminals, shows momentarily when you move the rotary switch to or from the position.

To prevent possible electric shock, fire, or personal injury, use the correct terminals, function, and range for measurements.

Battery Saver (Sleep Mode)

The Meter enters "Sleep mode" and blanks the display if there is no function change or button press for 20 minutes. This is done to conserve battery power. The Meter comes out of Sleep mode when a key is pressed or when the rotary switched is turned.

To disable Sleep mode, hold down the blue button while you turn on the Meter. Sleep mode is always disabled in the MIN MAX AVG recording mode, AutoHold mode, or when the insulation test is active.

Rotary Switch Positions

Turn the Meter on by selecting any measurement function.

The Meter presents a standard display for that function (range, measurement units, modifiers, etc.). Use the blue button to select any rotary switch alternate functions (labelled with blue letters). Rotary switch selections are shown and described in Table 4.

Table 4. Rotary Switch Selections

		1587 FC	1587	1587T	1577
Switch Position	Measurement Function
	AC voltage from 30.0 mV to 1000 V.	•	•	•	•
	AC voltage with 800 Hz VFD low-pass filter.	•	•	•
	DC voltage 1 mV to 1000 V.	•	•	•	•
	DC mV 0.1 mV to 600 mV.	•	•	•	•
	Temperature from - 40°C to + 537°C (- 40°F to + 998°F). Celsius is the default temperature measurement unit. The temperature measurement you select is retained in memory when the Meter is turned off.	•	•	•
	Ohms from 0.1 Ω to 50 MΩ.	•	•	•	•
	Capacitance from 1 nF to 9999 μF.	•	•	•
	Continuity test. Beeper turns on at <25 Ω and turns off at >100 Ω.	•	•	•	•
	Diode test. There is no ranging in this function. Displays above 6.600 V.	•	•	•
	AC mA from 3.00 mA to 400 mA (600 mA overload for 2 minutes maximum). DC mA from 0.01 mA to 400 mA (600 mA overload for 2 minutes maximum).	•	•	•	•
	Ohms from 0.01 MΩ to 2 GΩ. The last selected output voltage setting is retained in memory when the Meter is turned off.	•	•	•
	Ohms from 0.01 MΩ to 600 MΩ. The last selected output voltage setting is retained in memory when the Meter is turned off.				•
	Performs insulation test with: 50 V, 100 V, 250 V, 500 V (default), and 1000 V source	•	•
	500 V (default) and 1000 V source				•
	50 V (default) and 100 V source			•
	Press the blue button to activate smoothing during insulation testing.	•	•	•

Buttons

Use the buttons to activate features that augment the function selected with the rotary switch. The buttons are shown and described in Table 5.

Table 5. Buttons

		1587 FC	1587	1587T	1577
Button	Description
	Press to freeze the displayed value. Press again to release the display. When a reading changes, the display updates and the Meter beeps. In Insulation Test mode, this schedules a test lock the next time you press on the Meter or on the remote probe. The test lock acts to hold down the button until your press or again to release the lock.	•	•	•	•
	In MIN MAX AVG or Hz mode, this button is the display hold.	•	•	•
	Press to start retaining maximum, minimum, and average values. Press successively to display maximum, minimum, average, and present values. Press and hold to cancel MIN MAX AVG.	•	•	•
	Activate frequency measurement.	•	•	•
	Toggles between degrees C and degrees F.	•
	Changes Ranging mode from Auto (default) to Manual Ranging mode. Switches between available ranges in a function. Press and hold to return to Auto Ranging mode. In Insulation Test mode, switches between available source voltages.	•	•	•	•
	Toggles between degrees C and degrees F.		•	•
	Turns the backlight on and off. The backlight goes off after two minutes.	•	•	•	•
	Initiates an insulation test when the rotary switch is on the INSULATION position. Causes the Meter to source (output) a high voltage and measure insulation resistance.	•	•	•	•
	The blue button functions as a shift key. Press to access blue functions on the rotary switch.	•	•	•	•
	Configures the Tester for a polarization index (PI) or dielectric absorption ratio test (DAR). Press to configure for PI mode, press again to configure for DAR mode. The test starts when you press the .	•
	Turn on the radio and set the Product to the module mode. shows in the display when the radio is on. When used with the Fluke Connect App on your smart device, saves a measurement to the Fluke Connect app. Press >2 s. to turn off the radio and exit the module mode.	•

Display

Display indicators are shown and described in Table 6. Error messages that may appear on the display are described in Table 7.

To prevent possible electric shock or personal injury, replace the battery when the low battery indicator () shows to prevent incorrect measurements.

Table 6. Display Indicators

		Model
		1587 FC	1587	1587T	1577
Indicator	Description
	Low battery. Time to replace the battery. When is on, the backlight button is disabled to conserve battery life. 1587 FC model: module mode is disabled when the battery is low.	•	•	•	•
	Indicates a test lock will be applied the next time you press  on the Meter or on the remote probe. The test lock acts to hold down the button until you press  or  again.	•	•	•	•
	Less than, minus, or greater than symbols	•	•	•	•
	Hazardous voltage warning. Indicates 30 V or greater (ac or dc depending on the rotary switch position) is detected on the input. Also appears when the display shows in theor switch positions, and when appears on the display. Thealso appears when insulation test is active, or in Hz.	•	•	•	•
	"Smoothing" enabled. Smoothing dampens display fluctuations of rapidly changing inputs by digital filtering. Smoothing is available for insulation testing on 1587 models only. For more on smoothing, see Power-Up Options.	•	•	•
	Indicates the VFD low-pass filter function for ac volts is selected.	•	•	•
	Indicates AutoHold is active. Indicates display hold is active.	•	•	•	•
	Indicates minimum, maximum, or average reading has been selected using the button.	•	•	•
	Continuity test function is selected.	•	•	•	•
	Diode test function is selected.	•	•	•
nF, μF, ° C, ° F, AC, DC, V, mV, mA, Hz, kHz, Ω, kΩ, MΩ, GΩ	Measurement units.	•	•	•	•
	Primary display.	•	•	•	•
VDC	Volts source for Insulation test.	•	•	•	•
	Secondary display for insulation test voltage.	•	•	•	•
Auto Range ManualRange 610000	Display range in use.	•	•	•	•
2500V 1000V	Source voltage rating for insulation test: 50, 100, 250, 500 (default) or 1000 V on the 1587. 500 (default) and 1000 V ranges available on the 1577. 50 (default) and 100 V on the 1587T.	•	•	•	•
	Insulation test indicator. Appears when insulation test voltage is present.	•	•	•	•
	Shows the Product is in PI or DAR mode.	•
	Shows that the radio is enabled.	•
ID#	When the Product is discovered by a Fluke Connect device, an ID number is shown on the secondary display. The ID number also shows on the Fluke Connect device with the Product's model number.	•

Table 7. Error Messages

Message	Description
	Appears on the primary display and indicates that the battery is too low for reliable operation. The Meter will not operate at all until the battery is replaced. The also appears when is on the primary display.
	Appears on the secondary display and indicates that the battery is too low to perform an insulation test. The button is disabled until the battery is replaced. This message disappears when the rotary switch is turned to any other function.
	Appears when an open thermocouple is detected.
	Test lead alert. The message appears briefly and a single beep will sound when you move the switch in or out of the position.
	Model detect error. Service Meter if this is displayed.
	Meter cannot discharge a capacitor.
	Invalid EEProm data. Have the Meter serviced.
	Invalid calibration data. Calibrate the Meter.

Input Terminals

Input terminals are shown and described in Table 8.

Table 8. Input Terminal Descriptions

Item	Description
	input terminal for insulation test.
	input terminal for insulation test. Use for ac and dc milliamp measurements to 400 mA and current frequency measurements.
	1577: input terminal for voltage, continuity, resistance 1587: input terminal for voltage, continuity, resistance, diode, capacitance, voltage frequency, and temperature measurements.
	Common (return) terminal for all measurements except insulation test.

Power-Up Options

Holding a button down while turning the Meter on activates a power-up option. Power-up options allow you to use additional features and functions of the Meter. To select a power-up option, hold down the appropriate button indicated while turning the Meter from OFF to any switch position. Power-up options are cancelled when the Meter is turned OFF. Power-up options are described in Table 9.

Note
Power Up options are active when the button is pressed.

Table 9. Power-Up Options

Button	Description
	(V ac and mA ac) switch position turns on all LCD segments.
	(V dc) switch position displays the software version number.
	(mV) switch position displays the model number.
	(Ohms/Capacitance) switch position turns on the backlight and the radio LED.
	(Continuity/Diode) switch position starts the Calibration Mode. The Meter shows and enters the Calibration Mode when you release the button.
	INSULATION switch position initiates a fully loaded battery test and displays the charge level of the battery until the button is released.
	Enables "Smoothing" mode for all of the functions except insulation. The display shows until the button is released. Smoothing dampens display fluctuations of rapidly changing inputs by digital filtering.
	Disables automatic power-off ("Sleep mode"). Display until you release the button. Sleep mode is also disabled while the Meter is in a MIN MAX AVG Recording mode, AutoHold mode, and when performing an insulation test.
	Disables the beeper. The display shows until you release the button.
	Disables the automatic backlight timeout. Display shows until you release the button.

AutoHold Mode

To prevent electrical shock, do not use the Display AutoHold mode to determine if a circuit is live. Unstable or noisy readings will not be captured.

In the AutoHold mode, the Meter holds the reading on the display until it detects a new stable reading. Then the Meter beeps and displays the new reading.

• Press to activate AutoHold. shows on the display.
• Press again or turn the rotary switch to resume normal operation.

MIN MAX AVG Recording Mode

The MIN MAX AVG mode records minimum and maximum input values. The Meter beeps and records a new value when the inputs go below the recorded minimum value, or above the recorded maximum value. This mode can be used to capture intermittent readings, record maximum readings while you are away or record readings while you are operating the equipment under test and cannot watch the Meter. MIN MAX AVG mode can also calculate an average of all readings taken since the MIN MAX AVG mode was activated.

The Meter tracks the minimum, maximum, and average values for each display which are updated 4 times per second.

To use MIN MAX AVG recording:

• Make sure the Meter is in the desired measurement function and range. (Autoranging is disabled in the MIN MAX AVG mode).
• Press to activate MIN MAX AVG mode. shows on the display.
• Press to step through the high (MAX), low (MIN), average (AVG), and present readings.
• To pause MIN MAX AVG recording without erasing stored values, press. shows on the display.
• To resume MIN MAX AVG recording, press again. turns off.
• To exit and erase stored readings, press for one second or turn the rotary switch.

Manual Ranging and Auto Ranging

The Meter has both Manual Range and Auto Range modes.

• In the Auto Range mode, the Meter selects the range with the best resolution.
• In the Manual Range mode, you override Auto Range and select the range yourself.

When you turn the Meter on, it defaults to Auto Range and Auto Range is shown.

1. To enter the Manual Range mode, press .Manual Range is shown.
2. In the Manual Range mode, press to increment the range. After the highest range, the Meter wraps to the lowest range.

Note
You cannot manually change the range in the MIN MAX AVG, or Display HOLD modes.

If you press while in MIN MAX AVG, or Display HOLD the Meter beeps twice, indicating an invalid operation and the range does not change.

3. To exit Manual Range, press for one second or turn the rotary switch. The Meter returns to Auto Range and Auto Range is shown.

AC Zero Input Behavior of True RMS Meters

True RMS Meters accurately measure distorted waveforms, but when the input leads are shorted together in the AC functions, the Meter displays a residual reading between 1 and 30 counts. When the test leads are open, the display readings may fluctuate due to interference. These offset readings are normal. They do not affect the Meter's ac measurement accuracy over the specified measurement ranges.

Unspecified input levels are:

• AC voltage: below 5% of 600 mV ac, or 30 mV ac.
• AC current: below 5% of 60 mA ac, or 3 mA ac.

VFD Low-Pass Filter (all 1587 Models)

The 1587 is equipped with an ac low-pass filter to measure the output of variable frequency motor drives (VFD). For ac voltage or ac frequency () measurements, press the blue button to activate the Low-Pass Filter function (). The Meter continues measuring in the selected ac mode, but now the signal diverts through a filter that blocks unwanted frequencies above 800 Hz. Refer to Figure 1. The low pass filter can improve measurement performance on composite sine waves that are typically generated by inverters and variable frequency motor drives.

To prevent possible electric shock or personal injury, do not use the VFD Low-Pass Filter function to verify the presence of hazardous voltages. Voltages that are greater than what is indicated may be present. First, make a voltage measurement without the filter to detect the possible presence of hazardous voltage. Then, select the filter function.

Note
When using the VFD Low-Pass filter function, the Meter goes to Manual mode. Select ranges by pressing the button. Autoranging is not available with the Low-Pass filter function.

Figure 1. VFD Low Pass Filter

Basic Measurements

The figures on the following pages show how to make basic measurements.

When connecting the test leads to the circuit or device, connect the common (COM) test lead before connecting the live lead; when removing the test leads, remove the live lead before removing the common test lead.

To prevent possible electrical shock, fire, or personal injury:

• Disconnect circuit power and discharge all high-voltage capacitors before you measure resistance, continuity, capacitance, or a diode junction.
• Remove circuit power before you connect the Product in the circuit when you measure current. Connect the Product in series with the circuit.

For better accuracy when measuring the dc offset of an ac voltage, measure the ac voltage first. Note the ac voltage range, then manually select a dc voltage range equal to or higher than the ac range. This procedure improves the accuracy of the dc measurement by ensuring that the input protection circuits are not activated.

AC and DC Voltage

Figure 2. Measuring AC and DC Voltage

Temperature (all 1587 Models)

The Meter measures the temperature of a type-K thermocouple (included). Choose between degrees Celsius (°C) or degrees Fahrenheit (°F).

1587 FC:
Press to toggle between °C or °F.

1587/1587T:
Press to toggle between °C or °F.

To prevent possible damage to the Meter or other equipment, remember that while the Meter is rated for -40 °C to 537 °C (-40 °F to 998.0 °F), the included K-type thermocouple is rated for 260 °C (500 °F). For temperatures out of that range, use a higher rated thermocouple.

To prevent risk of electric shock do not connect thermocouple to electrically live circuits.

Resistance

Figure 4. Measuring Resistance

Capacitance (all 1587 models)

Figure 5. Measuring Capacitance

Continuity

Figure 6. Testing for Continuity
The continuity test features a beeper that sounds as long as a circuit is complete. The beeper allows you to perform quick continuity tests without having to watch the display. To test for continuity, set up the Meter as shown in Figure 6. The beeper sounds when a short (<25 Ω) is detected.

To prevent possible damage to the Meter or to the equipment under test, disconnect circuit power and discharge all high voltage capacitors before testing for continuity.

Diodes (all 1587 models)

Figure 7. Testing Diodes

AC or DC Current

To prevent personal injury or damage to the Meter:

• Never attempt to make an in-circuit current measurement when the open-circuit potential to earth is >1000 V.
• Check the Meter's fuses before testing. See Testing the Fuses later in this manual.
• Use the proper terminals, switch position, and range for your measurement.
• Never place the probes in parallel with a circuit or component when the leads are plugged into the current terminals.

Turn OFF power to the circuit under test, break circuit, insert Meter in series, and turn ON power. To measure ac or dc current, set up the Meter as shown in Figure 8.

Insulation

Insulation tests should only be performed on dead circuits. Check the fuse before testing. See Fuse Test later in this manual. To measure insulation resistance, set up the Meter as shown in Figure 9 and follow the steps below:

1. Insert test probes in the and nput terminals.
2. Turn the knob to INSULATION position. A battery load check is initiated when the switch is moved to this position. If the battery fails the test and appear in the lower display. Insulation tests cannot be performed until the batteries are replaced.
3. Press to select the voltage.
4. Connect the probes to the circuit to be measured. The Meter automatically detects if the circuit is energized.

• The primary display shows until you press and a valid insulation resistance reading is obtained.
• The high voltage symbol () along with a primary display of >30 V warns if voltage more than 30 V ac or dc is present. In this condition, the test is inhibited. Disconnect the Meter and remove power before proceeding.

5. Push and hold to start the test. The secondary display shows the test voltage applied to the circuit under test. The high voltage symbol () along with a primary display showing the resistance in MΩ or GΩ appears. The icon appears on the lower portion of the display until is released. When resistance is higher than the maximum display range, the Meter displays the symbol and the maximum resistance for the range.
6. Keep the probes on the test points and release the button. The circuit under test then discharges through the Meter. The resistance reading remains on the primary display until a new test is started, a different function/range is selected, or >30 V is detected.

Figure 9. Testing Insulation

PI/DAR

Polarization Index (PI) is the ratio of the 10-minute insulation resistance to the 1 minute insulation resistance. Dielectric Absorption Ratio (DAR) is the ratio of the 1-minute insulation resistance to the 30 second insulation resistance.

Insulation tests should only be performed on de-energized circuits. To measure the polarization index or dielectric absorption ratio:

1. Insert test probes in the and input terminals.

Note
Because of the time required to perform the PI and DAR tests, use of test clips is recommended.

2. Press repeatedly to select the test voltage.
3. Press to select polarization index or dielectric absorption ratio.
4. Connect the probes to the circuit to be measured. The Tester automatically detects if the circuit is energized:

• The primary display shows ---- until you press the button and a valid resistance reading is obtained.
• The high voltage symbol () and a primary display of >30 V warns if voltage greater than 30 V ac or dc is present. If high voltage is present, the test is inhibited.

5. Press and release to start the test. The secondary display shows the test voltage applied to the circuit under test. The high voltage symbol () along with the primary display show the resistance in MΩ or GΩ. The icon shows on the lower portion of the display until the test is finished.

When the test is completed, the PI or DAR value is displayed on the primary display. The circuit under test will automatically be discharged through the Tester. If either value used to calculate PI or DAR was greater than the maximum display range, or the 1-minute value was greater than 5000 Mo, the primary display will show Err:

• When resistance is higher than the maximum display range, the Tester displays the > symbol and the maximum resistance for the range.
• To interrupt a PI or DAR test before it is completed, momentarily press . When you release , the circuit under test will automatically be discharged through the Tester.

Frequency (all 1587 Models)

The Meter measures the frequency of a voltage or current signal by counting the number of times the signal crosses a threshold level each second. To measure frequency, set up the Meter as shown in Figure 10 and follow the steps below.

1. Connect the Meter to the signal source.
2. Turn the rotary switch to the , or position.
3. In the position press the blue button to select dc if needed.
4. Press the button.
5. Press the button or change the rotary switch position to end this function.

Figure 10. Measuring Frequency

Fluke Connect™ Wireless System

The Product supports the Fluke Connect™ Wireless System (may not be available in all regions). Fluke Connect™ is a system that wirelessly connects your Fluke test tools with an app on your smartphone or tablet. It can show measurements from your Meter on a smartphone or tablet screen, save measurements to the asset's EquipmentLog™ history in the Fluke Cloud™, and share the information with your team.

Fluke Connect™ App
The Fluke Connect™ app works with the Apple and Android products. The app is available for download from the Apple App Store and Google Play.

How to access Fluke Connect:

1. Turn on the Meter.
2. Press to activate the Product's radio. See Figure 11.
3. On your smartphone, go toSettings > Bluetooth. Turn on the Bluetooth function.
4. Go to the Fluke Connect App and select your Meter from the list that shows in the app.

You are now able to take, save, and share measurements.

Go to www.flukeconnect.com for more information about how to use the app.

While in insulation test mode, the secondary display shows the output voltage of the test. When the radio is enabled (1587 FC only) the secondary display shows the ID number. If the radio is on while in insulation test mode, the secondary display shows the ID number for 2 seconds and then shows the test voltage.

Battery Test

To test the batteries, press and turn to the rotary switch to the INSULATION position. This initiates a battery test and displays the charge level of the battery.

Fuse Test

To prevent electrical shock or injury, remove the test leads and any input signals before replacing the fuse.

Test the fuse as described below and shown in Figure 12. Replace the fuse as shown in Table 10.

Figure 12. Testing the Fuse

1. Insert a test probe in the input terminal.
2. Turn the rotary switch to the position and verify the Meter is in Auto Range.
3. Insert the probe in the mA input terminal. If the display reading is , the fuse is bad and should be replaced.

Battery and Fuse Replacement

Replace the fuse and batteries as shown in Table 10.

Follow the steps below to replace the batteries.

To prevent possible electrical shock, fire, or personal injury:

• Replace the batteries when the battery indicator () shows to prevent incorrect measurements.
• Replace a blown fuse with exact replacement only for continued protection against arc flash.
• Do not operate the Product with covers removed or the case open. Hazardous voltage exposure is possible.
• Remove the input signals before you clean the Product.
• Have an approved technician repair the Product.

1. Turn the rotary switch to OFF and remove the test leads from the terminals.
2. Remove the battery door by using a standard screwdriver to turn the battery door lock until the unlock symbol aligns with the arrow.
3. Remove and replace the batteries.
4. Replace the battery door and secure by turning the battery door lock until the lock symbol aligns with the arrow.

Table 10. Fuse and Battery Replacement

General Specifications

Maximum Voltage Applied to
any Terminal and Common 1000 V

Fuse Protection for mA input 0.44 A, 1000 V, IR 10 kA

Batteries Four AA batteries (NEDA 15A or IEC LR6)

Battery Life Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.

Size 5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)

Weight 550 g (1.2 lb)

Altitude
Operating 2000 m
Storage 12,000 m

Over-Range Capability 110% of range except for capacitance which is 100 %

Frequency Overload Protection ≤10⁷ V Hz

Storage Temperature -40°C to 60°C (-40°F to 140°F)

Operating Temperature -20°C to 55°C (-4°F to 131°F)

Temperature Coefficient 0.05 x (specified accuracy) per °C for temperatures <18°C or >28°C (<64°F or >82°F)

Relative Humidity Noncondensing
0% to 95% @ 10°C to 30°C (50°F to 86°F)
0% to 75% @ 30°C to 40°C (86°F to 104°F)
0% to 40% @ 40°C to 55°C (104°F to 131°F)

Enclosure Protection IEC 60529: IP40 (non-operating)

Safety
IEC 61010-1 Pollution Degree 2
IEC 61010-2-033 CAT IV 600 V / CAT III 1000 V

Wireless Radio with Adapter
Frequency Range 2402 MHz to 2480 MHz
Output Power <10 mW
Radio Frequency Certification FCC: T68-FBLE, IC: 6627A-FBLE

Electromagnetic Compatibility
International IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object. The equipment may not meet the immunity requirements of this standard when test leads and/or test probes are connected.

Korea (KCC) Class A Equipment (Industrial Broadcasting & Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.

USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Electrical Specifications

AC Voltage Measurement
Accuracy (all 1587 models)

Low-Pass Filter Voltage (all 1587 models)

1577 Accuracy

AC Conversion Inputs are ac-coupled and calibrated to the rms value of sine wave input. Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 at up to 500 V, decreasing linearly to crest factor ≤1.5 at 1000 V. For non-sinusoidal waveforms add ±(2% reading + 2% FS) typical, for a crest factor up to 3.

Input Impedance 10 MΩ (nominal), <100 pF, ac-coupled

Common Mode Rejection Ratio
(1 kΩ unbalanced) >60 dB at dc, 50 or 60 Hz

DC Voltage Measurement

Input Impedance 10 MΩ (nominal), <100 pF

Normal Mode Rejection Ratio >60 dB @ 50 Hz or 60 Hz

Common Mode Rejection Ratio >120 dB @ dc, 50 Hz or 60 Hz (1 kΩ unbalance)

DC Millivolts Measurement

DC and AC Current Measurement

Overload 600 mA for 2 minutes maximum

Fuse Protection for mA Input 0.44 mA, 1000 V, IR 10 kA

AC Conversion Inputs are ac-coupled and calibrated to the rms value of sine wave input. Conversions are true-rms responding and specified from 5% to 100% of range. Input signal crest factor can be up to 3 up to 300 mA, decreasing linearly to crest factor ≤1.5 at 600 mA. For non-sinusoidal waveforms add +(2% reading + 2% FS) typical, for a crest factor up to 3.

Ohms Measurement

Overload Protection 1000 V rms or dc

Open Circuit Test Voltage <8.0 V dc

Short Circuit Current <1.1 mA

Diode Test (all 1587 models)
Diode Test Indication Display voltage drop: 0.6 V at 1.0 mA nominal test current:
Accuracy ±(2% + 3)

Continuity Test
Continuity Indication Continuous audible tone for test resistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω
Open Circuit Voltage <8.0 V
Short Circuit Current 1.0 mA typical
Overload Protection 1000 V rms
Response Time >1 m sec

Frequency Measurement (all 1587 models)

Frequency Counter Sensitivity (all 1587 models)

Capacitance (all 1587 models)

Temperature Measurement (all 1587 models)

Insulation Specifications

Measurement Range
Model 1587, 1587 FC 0.01 MΩ to 2 GΩ
Model 1577 0.1 MΩ to 600 MΩ
Model 1587T 0.01 MΩ to 100 MΩ

Test Voltages
Model 1587, 1587 FC 50, 100, 250, 500, 1000 V
Model 1577 500, 1000 V
Model 1587T 50, 100 V

Test Voltage Accuracy +20%, -0 %

Short-Circuit Test Current 1 mA nominal

Auto Discharge Discharge time <0.5 second for C = 1 μF or less

Live Circuit Detection Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum Capacitive Load Operable with up to 1 μF load

Model 1587/1587 FC

Model 1577

Model 1587T

Model 1587C FC
