Moxa Technologies V2101 series Specifications

Embedded Computing Solutions

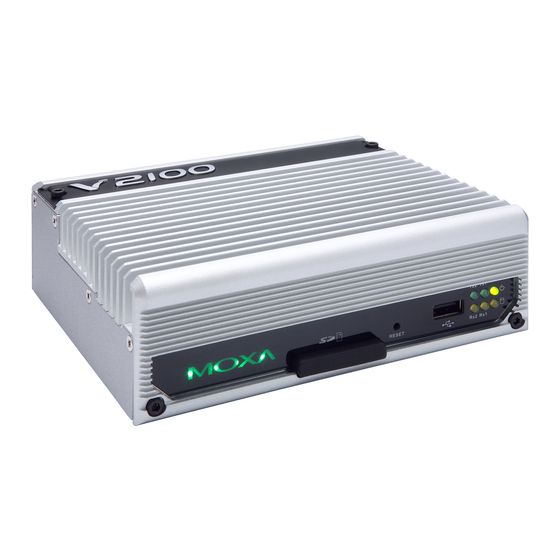

V2101 Series
x86 ready-to-run embedded computer with Intel Atom Z510PT, VGA,
LVDS, audio, 2 LANs, 2 serial ports, 3 DIs, 3 DOs, 4 USB 2.0 ports, SD
Overview
The V2101 embedded computers are based on the Intel Atom Atom
Z510PT x86 processor, and feature 2 serial ports, dual Gigabit LAN
ports, 4 USB 2.0 hosts, and SD socket. The V2100 Series offers both
VGA and LVDS outputs, making it particularly well-suited for industrial
applications, such as SCADA and factory automation.
The V2101 computers' 2 serial ports make them ideal for connecting a
wide range of serial devices, and the dual 10/100/1000 Mbps Ethernet
ports offer a reliable solution for network redundancy, promising
continuous operation for data communication and management. As
an added convenience, the V2101 computers have 3 DIs and 3 DOs
Appearance
Front View
SD Socket
Rear View
DI x 3/DO x 3
Audio Input Channels
Audio Output VGA Output
1
LED Indicators (Tx, Rx)
Reset Button
USB 2.0 Host x 1
LED Indicators
(Power/Storage)
10/100/1000 Mbps
USB 2.0 Host x 3
Ethernet x 2
RS-232/422/485
Serial Port x 2
›
Intel Atom Z510PT 1.1 GHz processor, 400/533 MHz FSB
›
DDR2 SODIMM socket, supports DDR2 400/533 up to 2 GB
›
Dual Independent Displays (CRT + LVDS)
›
2 Gigabit Ethernet ports
›
4 USB 2.0 ports for high speed peripherals
›
3 DIs and 3 DOs
›
2 RS-232/422/485 ports
›
Built-in CompactFlash for storing OS
›
LED indicators for power, storage
›
Ready-to-run Embedded Linux, WinCE 6.0, or Windows Embed-
ded Standard 2009 platform
›
-40 to 85°C wide operating temperature models available
for connecting digital input/output devices. In addition, the SD and
USB sockets provide the V2101 computers with the reliability needed
for industrial applications that require data buffering and storage
expansion.
Pre-installed with Linux, Windows CE 6.0, or Windows Embedded
Standard 2009, the V2101 Series provides programmers with a
friendly environment for developing sophisticated, bug-free application
software at a lower cost.
All V2101 models support a wide operating temperature range of -40
to 85°C for harsh industrial environments.
Side View
w w w. m o x a . c o m
LVDS Output
Power Input
Power Button
i n f o @ m o x a . c o m
