Pro-Form 730 Zlt Treadmill Manual page 13

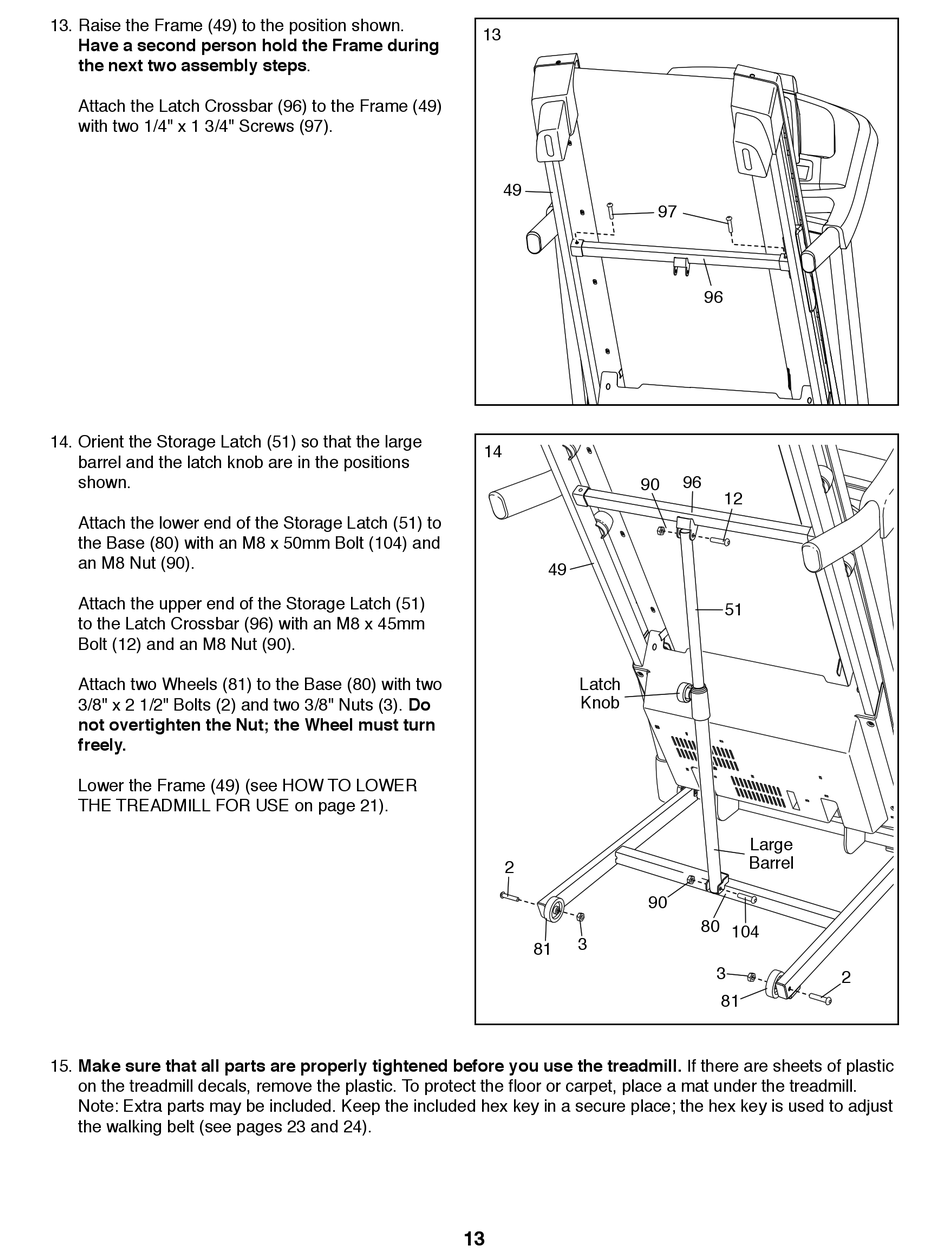

13. Raise the Frame (49) to the position shown.
Have a second person hold the Frame during
the next two assembly steps.
Attach the Latch Crossbar (96) to the Frame (49)
with two 1/4" x 1 3/4" Screws (97).
14. Orient the Storage Latch (51) so that the large
barrel and the latch knob are in the positions
shown.
Attach the lower end of the Storage Latch (51) to
the Base (80) with an M8 x 50mm Bolt (104) and
an M8 Nut (90).
Attach the upper end of the Storage Latch (51)
to the Latch Crossbar (96) with an M8 x 45mm
Bolt (12) and an M8 Nut (90).
Attach two Wheels (81) to the Base (80) with two
3/8" x 2 1/2" Bolts (2) and two 3/8" Nuts (3). Do
not overtighten the Nut; the Wheel must turn
freely.
Lower the Frame (49) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the  oor or carpet, place a mat under the treadmill.
Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust
the walking belt (see pages 23 and 24).
