Pro-Form 696 Elliptical User Manual page 9

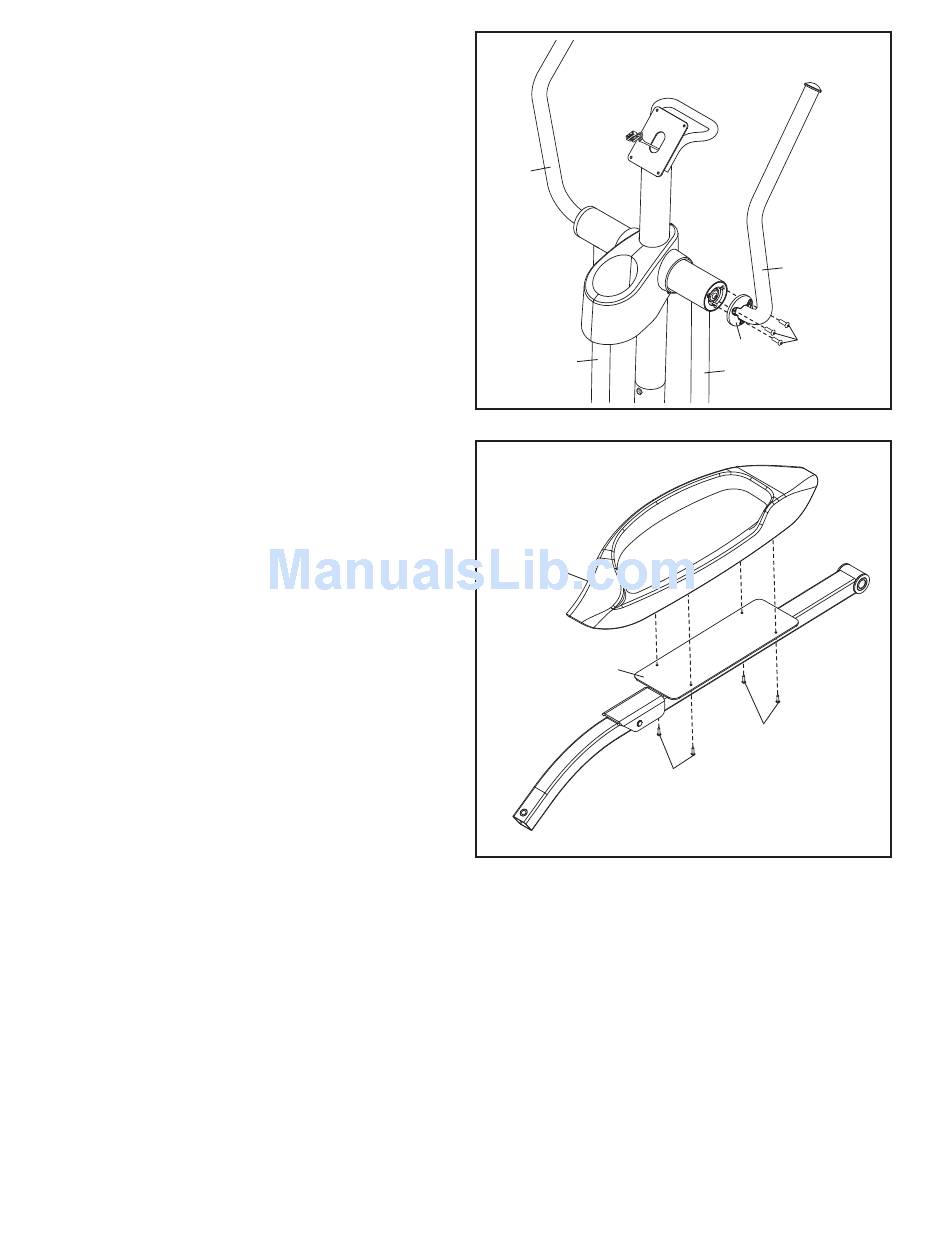

8. Identify the Right Handlebar (9), which is
marked with an "R" sticker. Attach the Right
Handlebar to the Right Upper Body Arm (12)
with three M8 x 38mm Button Screws (4) and a
Handlebar Cover (19).
Attach the Left Handlebar (8) to the Left
Upper Body Arm (11) in the same way.
9. Identify the Right Pedal (15) and the Right
Pedal Leg (16), which are marked with "R"
stickers, and orient them as shown.
Attach the Right Pedal (15) to the Right Pedal
Leg (16) with four M6 x 10mm Button Screws
(104).
Attach the Left Pedal (not shown) to the Left
Pedal Leg (not shown) in the same way.
8
8
11
9
15
16
9
9
4
19
12
104
104
