Pro-Form 696 Elliptical User Manual page 20

HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance of the pedals is at the high-
est setting, the Belt (51) may need to be adjusted.
First, see step 11 on page 10 and remove the link
arms. Next, see step 4 on page 7 and remove the
crank arms.
Then, remove all the screws from both side shields;
there are three sizes of screws in the side
shields—note which size of screw you remove
from each hole. Then, gently pry the side shields
away from the frame.

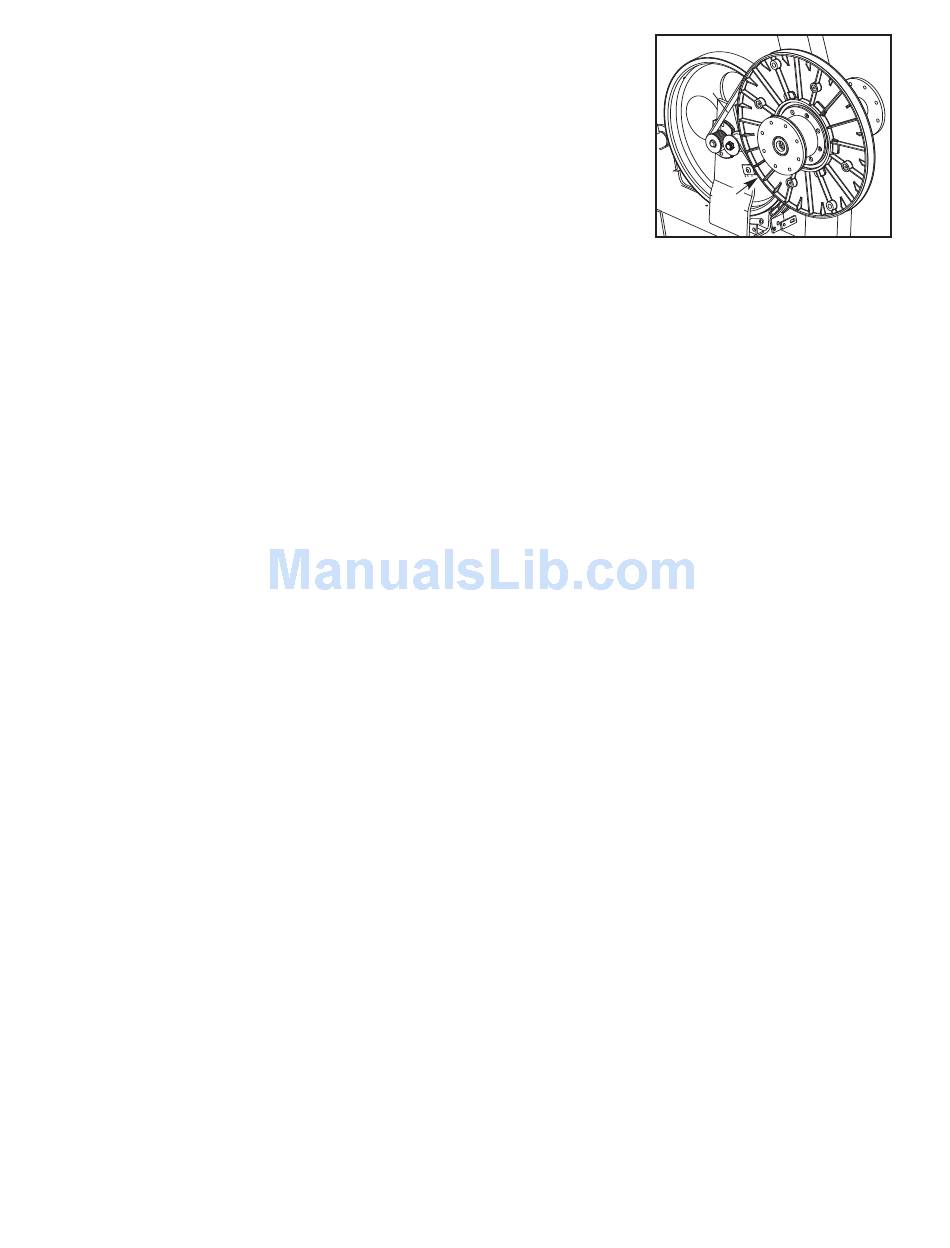

Next, tighten the
M8 x 35mm Screw
(96) until the Belt
(51) is tight. Then,
reattach the side
shields, the crank
arms, and the link
arms. Note: If you
have questions as
to which screw
should be in which
hole, see
EXPLODED DRAWING B on page 27 and the PART
LIST on page 24.
