Pro-Form 696 Elliptical User Manual page 6

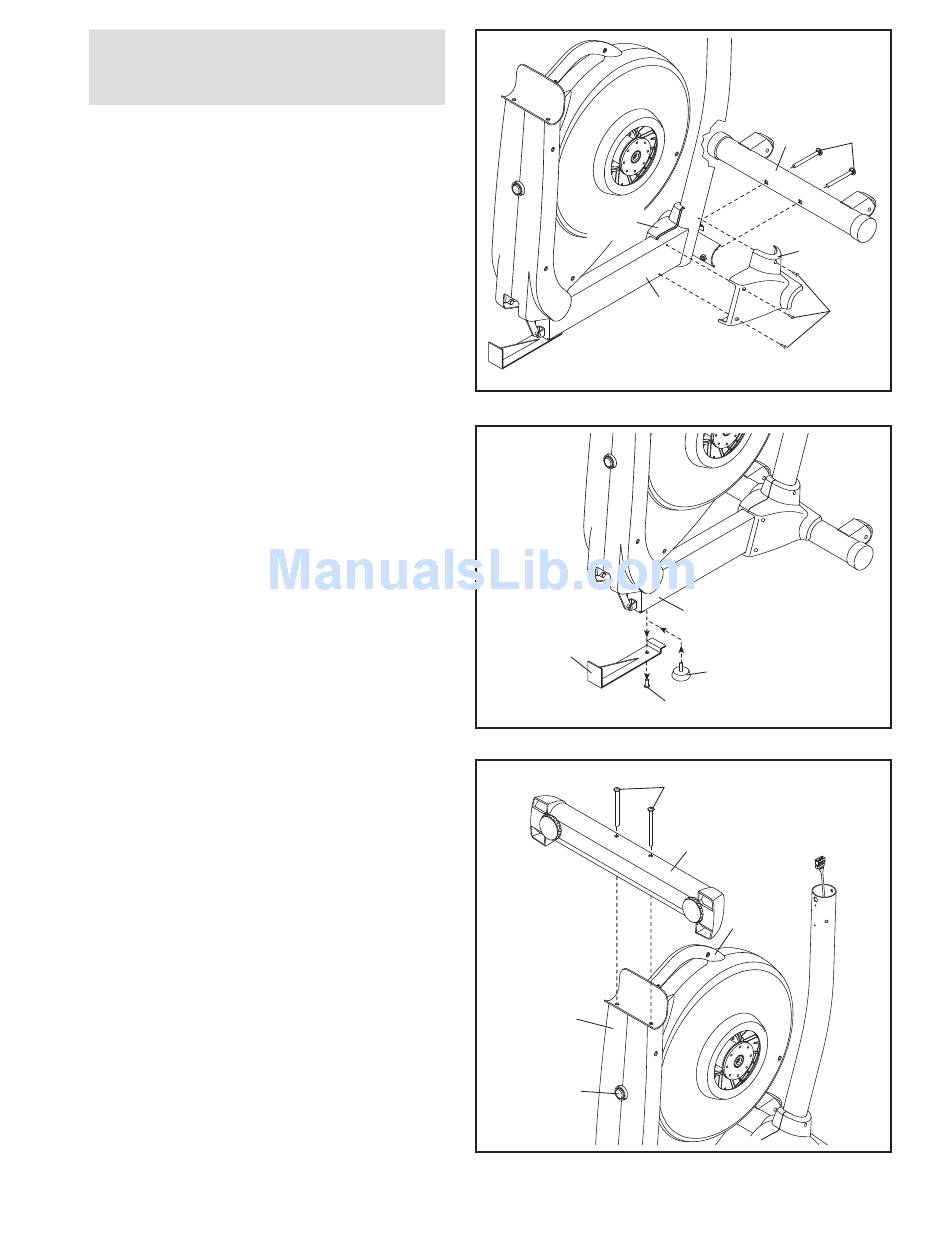

1.
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
While another person lifts the Base (1), attach
the Front Stabilizer (6) to the Base with two
M10 x 82mm Button Screws (82).
Next, hold the Left and Right Stabilizer Covers
(79, 109) around the Base (1). Attach the
Stabilizer Covers with six M4 x 16mm Round
Head Screws (101) (only three are shown).
2. Remove the indicated screw and bracket
from the Base (1). Discard the screw and the
bracket.
Next, turn the Base Foot (26) into the Base (1)
as far as possible.
3. Attach the Rear Stabilizer (7) to the Frame (2)
with two M10 x 127mm Button Screws (83).
Next, hold the handle on the Frame (2), press
the Latch Button (68), and lower the Frame until
the Rear Stabilizer (7) is resting on the floor.
