4.3 Interfaces

4.3.1 On/Off button

To turn on the NAVI-1, press the On/Off button for circa 2 seconds. In order
to turn it off again, press the On/Off button for approx. 2 seconds. Thereby,
a short acoustic signal (peep) will be generated each time.

4.3.2 LED's

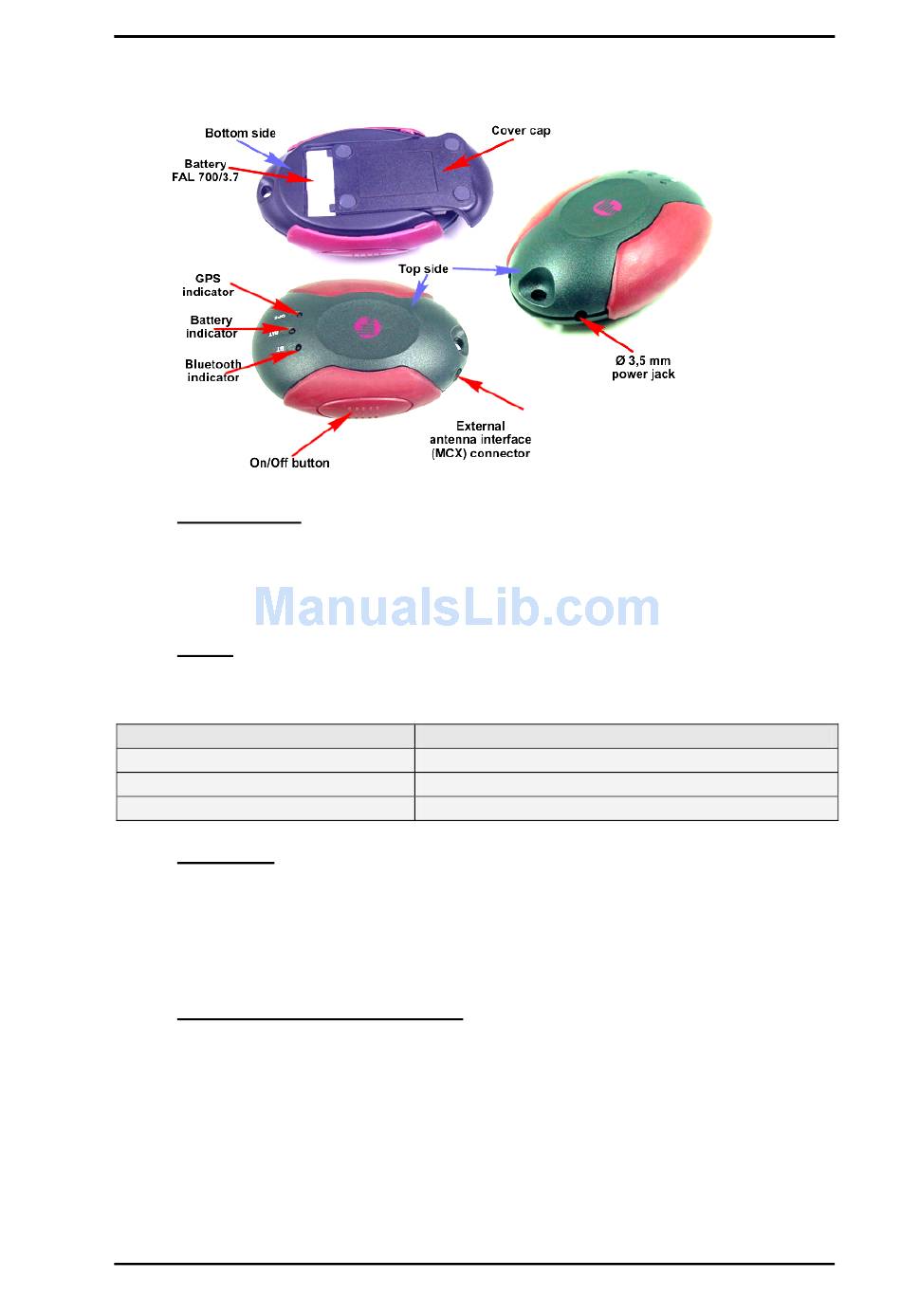

Following status indicators are integrated on the top side of NAVI-1:
Indicators
Yellow (labelled GPS)
Red/Green (labelled BAT)
Blue (labelled BT)

4.3.3 Power jack

In order to recharge the internal battery the Ø 3,5 mm power jack allows
you to connect either a car adapter cable (KA-NAVI-1-PS) or a power
charger (PS-003) to an DC electrical outlet. Both accessories are available
upon request (refer to chapter 0.2).

4.3.4 Interface for an external antenna

There is no active antenna included in the delivery packing, so the users
have to purchase one. For more information please contact one of our
distributors.
The order name is: FAL-ANT-3-MCX.
The NAVI-1 provides a MCX-connector for an external active antenna. An
external antenna can be used instead of the NAVI-1's internal antenna. The
operation of internal GPS antenna will be deactivated if this one is
externally connected.
