6. HARDWARE INTERFACES

This chapter describes the hardware interfaces:
Interface specifications
Antenna Ports
Main Port
NFC Windscreen port
NFC InCar port
Accessory Port
Optical LED Indicators
Aantenna port
Mounting Holes
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission.
ANUAL
FAKRA connectors for connecting GSM/3G & GNSS antennas.
The 8pin double-row connector, type: MOLEX-43045-08-MICRO FIT. It provides IN/OUT, power supply
and first serial port (SER0) lines.
The 4pin double-row connector for connecting NFC Windscreen BLE accessory
The 4pin double-row connector for connecting NFC InCar accessory
Reserved (6pin connector)
3 x LED indicators, free programmable
Reserverd (FAKRA connector)
4 x mounting holes for attaching the device to a suitable location.
Table 4: Interface specifications

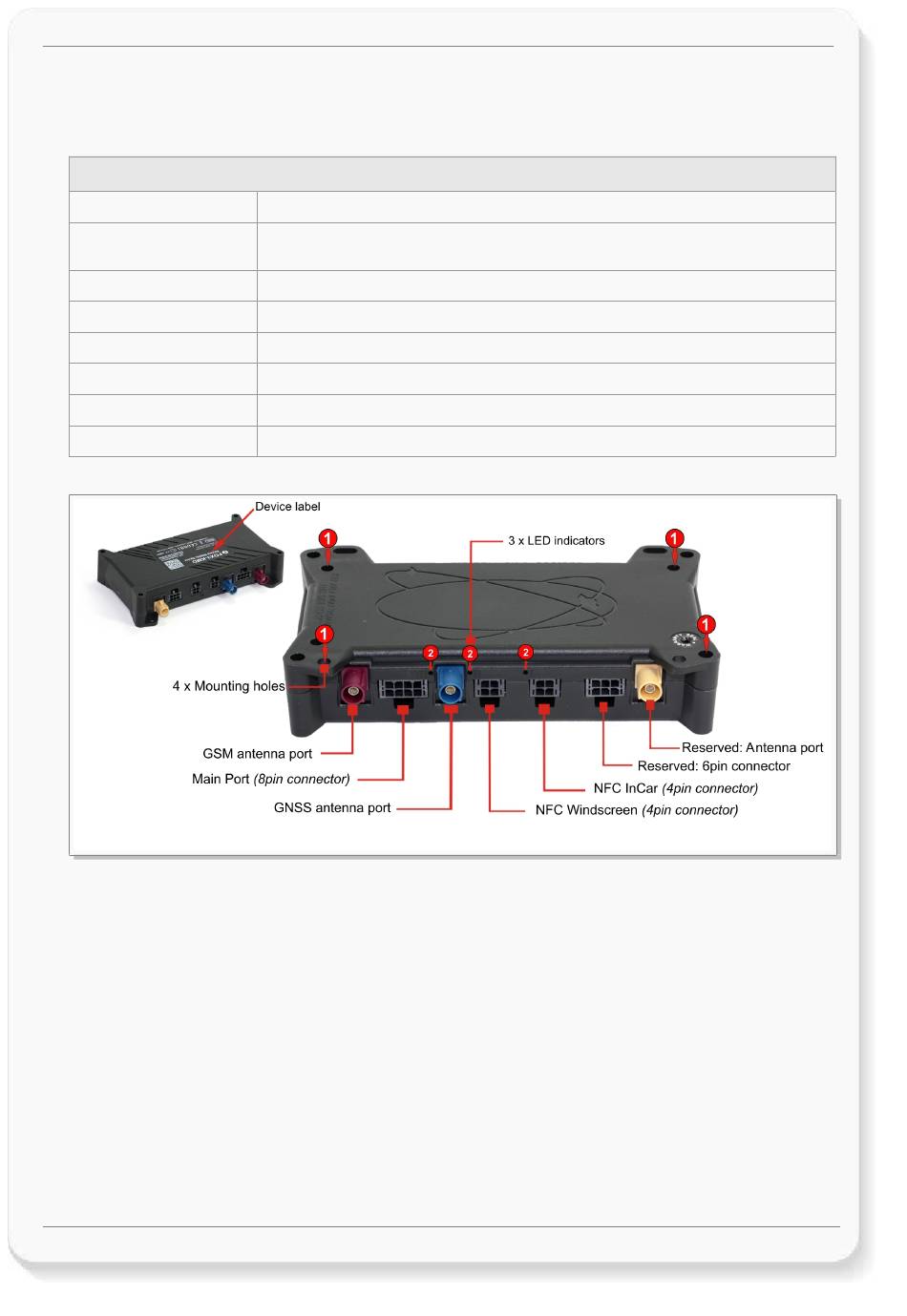

Figure 1: Interface specifications of the FOX3-KMD device.
