FALCOM NAVI-1/XT User Manual page 22

NAVI-1/NAVI-XT

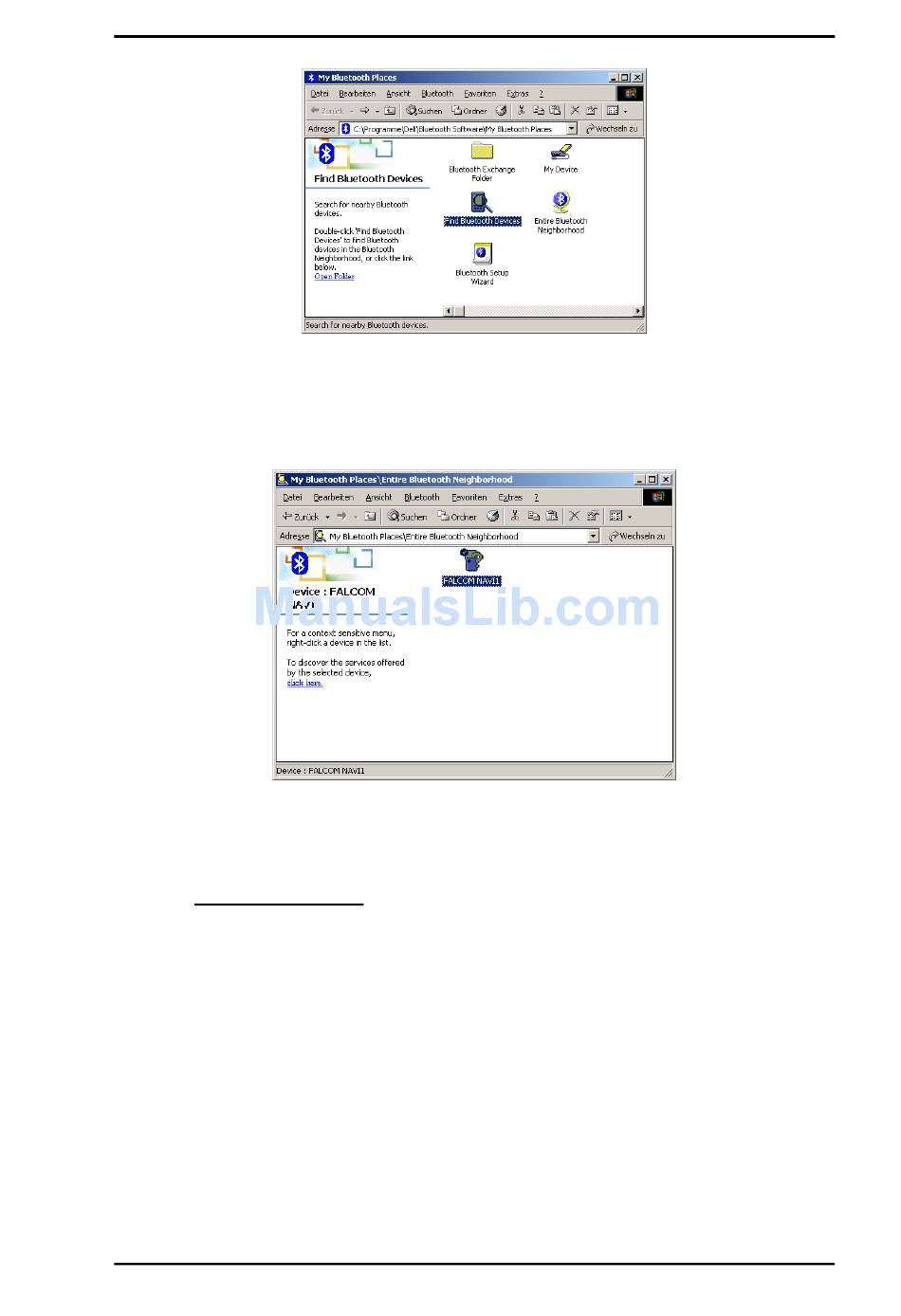

6. After a few seconds, a list of Bluetooth™ devices will appear on your
screen. You will see the FALCOM NAVI-1 appear in the Service
Selection. Select the FALCOM NAVI-1 icon. In order to discover the
services offered the FALCOM NAVI-1 click the link
left side of opened window.
7. The service appears below allows the users to establish a virtual serial
port. Right-click on the ... FALCOM NAVI-1 icon, on the appearing
popup menu click the Connect to Bluetooth™ Serial Port item. The
LED blue light constantly (means Bluetooth™ connection is created).
Secure Connection:
As far as the Secure Connection for NAVI-1 is concerned there is no
security entered i.e. there is no device pairing required if the Secure
Connection option is disabled for a Bluetooth™ service or application.
Please check the software configuration to disable the Secure
Connection (e.g. go to Start>Settings>Control Panel and click the
Bluetooth™ configuration, a Bluetooth™ configuration screen will
appear in the display. Select the Client Application tab, then double-
click on the Application Name "Bluetooth™ Serial Port" and
deactivate its Security Connection on the next appeared dialog box).
In order to pair two devices with each-other the Secure Connection
option has to be enabled for a Bluetooth™ service or application (e.g. go
to aforementioned directory and activate its Security Connection). After
inquiry process, the pairing process needs a valid PIN which for NAVI-1
is "1111" pre-defined
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
.
VERSION 1.06
'click here' on the
Page 22
