FALCOM NAVI-1/XT User Manual page 30

NAVI-1/NAVI-XT

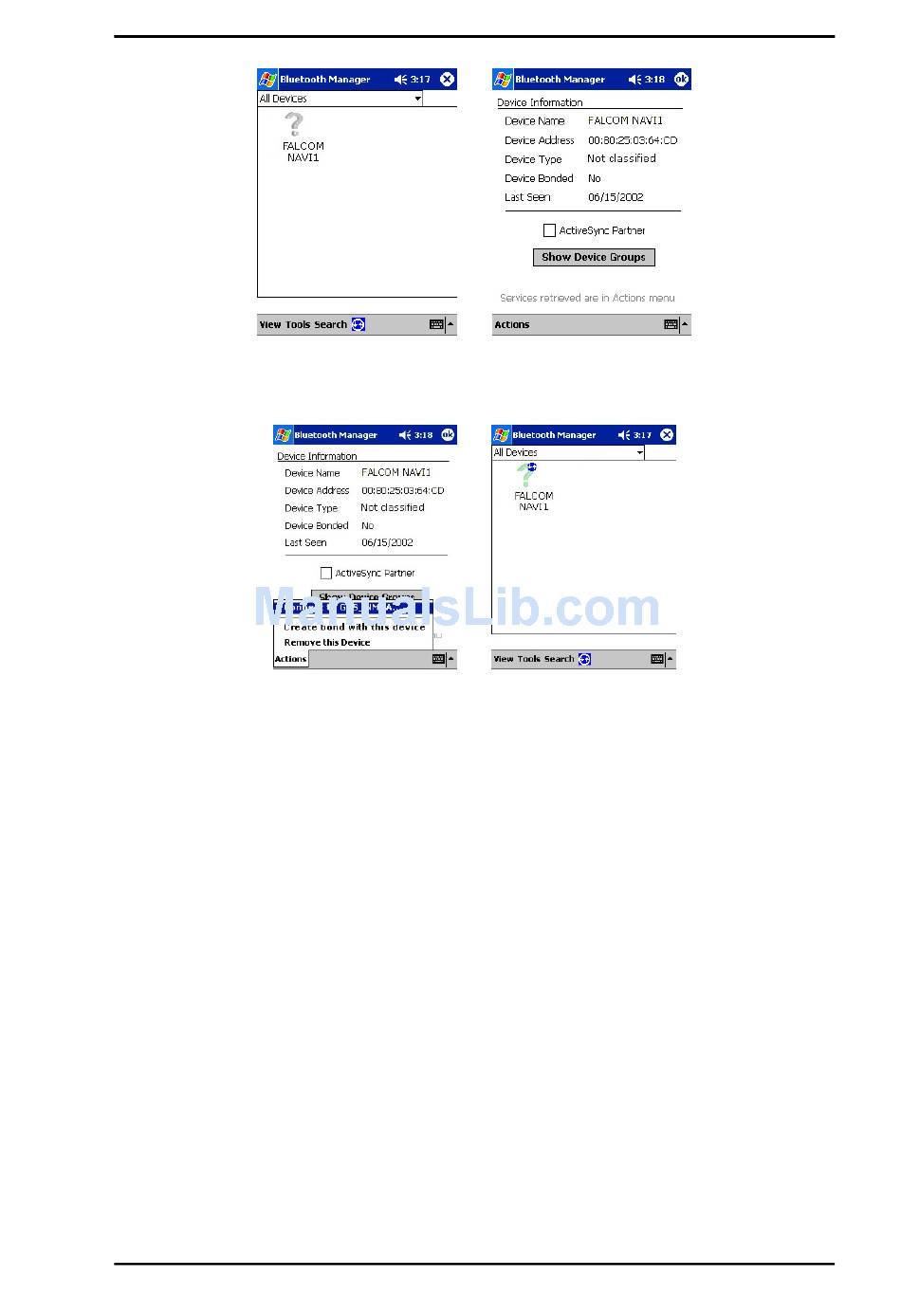

7. Tap on Actions menu and "Connect to GPS_NMEA .." (below left).
This will take a short time to be completed (below right). Now tap OK
to return to Devices list.
8. Your last step is to find which serial port is connected to. At the main
Bluetooth™ Manager screen, tap Tools Menu and "Settings for All
Devices" (below left).
On the Settings screen, tap "Serial Port" tab. Note the entry for
"Outbound Com Port" (COM8 in screenshot below right) and "Inbound
Com Port" (COM7 in screenshot below right).
As far as the Secure Connection for NAVI-1 is concerned, please, refer
to the chapter 5.2
selected, see figure right below, then enter "1111" when asked for a
passkey for the device.
For more details about Bluetooth™, please refer to the software manual
that you currently use.
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
(click here). If the option "Passkey is required" is
VERSION 1.06
Page 30
