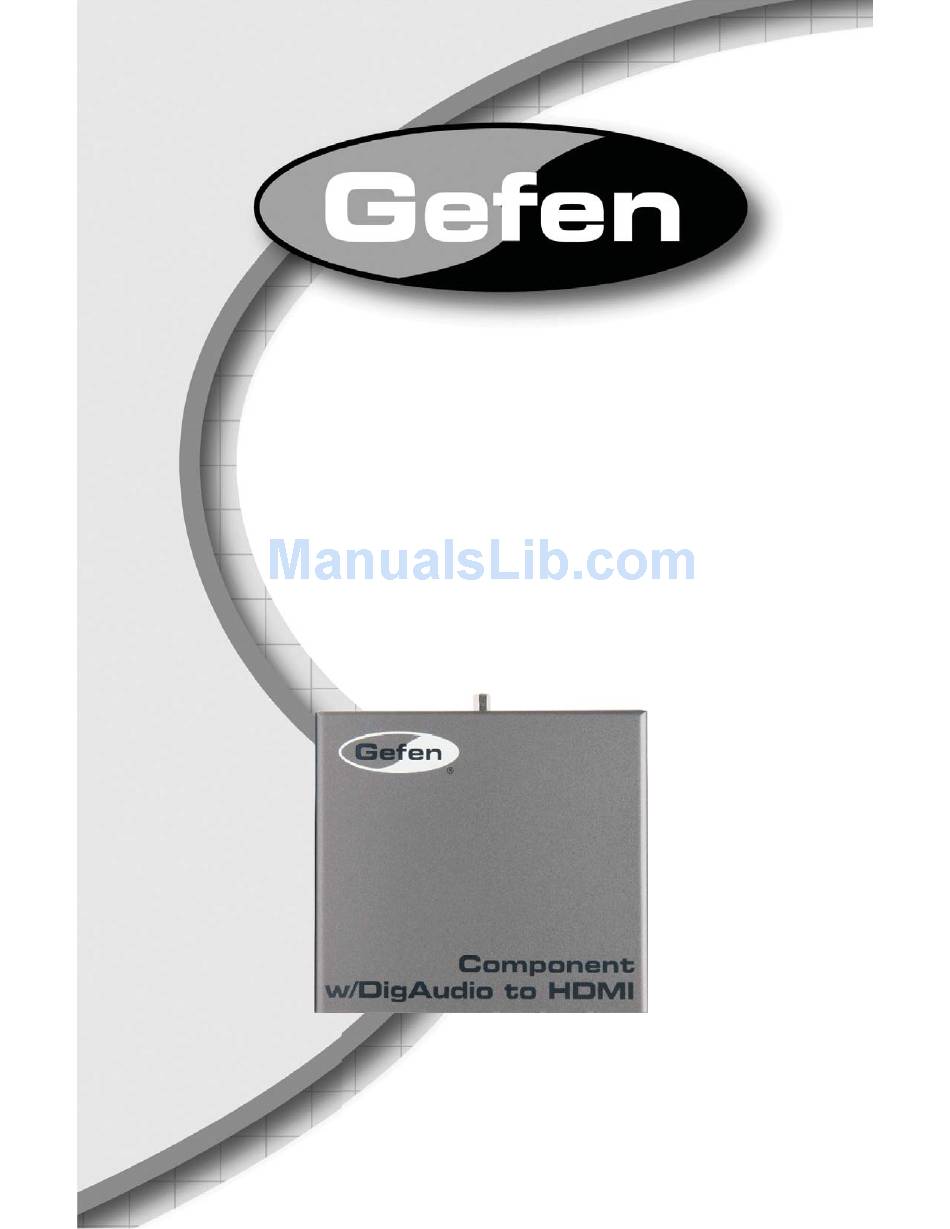

- Page 1 Component w/ Digital Audio ® to HDMI Adapter E X T - C O M P A U D - 2 - H D M I D U S E R ' S M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. ® Component w/ Digital Audio to HDMI Adapter is a trademark of Gefen, LLC All trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
CONTENTS Introduction Features Panel Descriptions Connecting and Operating the Component w/ Digital Audio to HDMI Adapter Specifi cations Warranty... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Includ- ed in that price is a lifetime of support from a team of outstanding engineers. Introduction The Component + Digital Audio to HDMI Adapter is a unique device that allows older analog devices to be integrated seamlessly into the modern home theater. -
Page 5: Features
FEATURES Features • Allows connection of YPbPr HDTV sources to an HDMI display • Encodes digital audio onto the video signal for HDMI video and audio • Supports HDTV resolutions up to 1080p • HDMI compliant Includes: (1) Digital Audio to HDMI Adapter (1) Component Cable (1) 6 ft TOSLINK Digital Audio Cable (1) 5V Power Supply... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS HDMI Output Connects to 5VDC Power Supply Component Input TOSLINK Input LED Power Indicator... - Page 7 Component Audio to HDMI Adapter and the TOSLINK audio output of your device. 4- Connect the 5V power supply. Connection Diagram for the Component Audio to HDMI Adapter COMPONENT CABLE TOSLINK CABLE HDMI CABLE Component Source Converter HDMI Display EXT-COMPAUD-2-HDMID...
-
Page 8: Specifi Cations
SPECIFICATIONS HDMI Video Amplifi er Bandwidth..............165 MHz VGA Amplifi er Bandwidth................350 MHz HDMI Connector...............type A (19 pin) female Video Connector................3-RCA Component Audio Connector................digital TOSLINK Power Consumption................5 watts (max) Power Supply....................5V DC Dimensions..................4”W x 1”H x 4”D Shipping Weight....................2 lbs. -
Page 9: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 11 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
