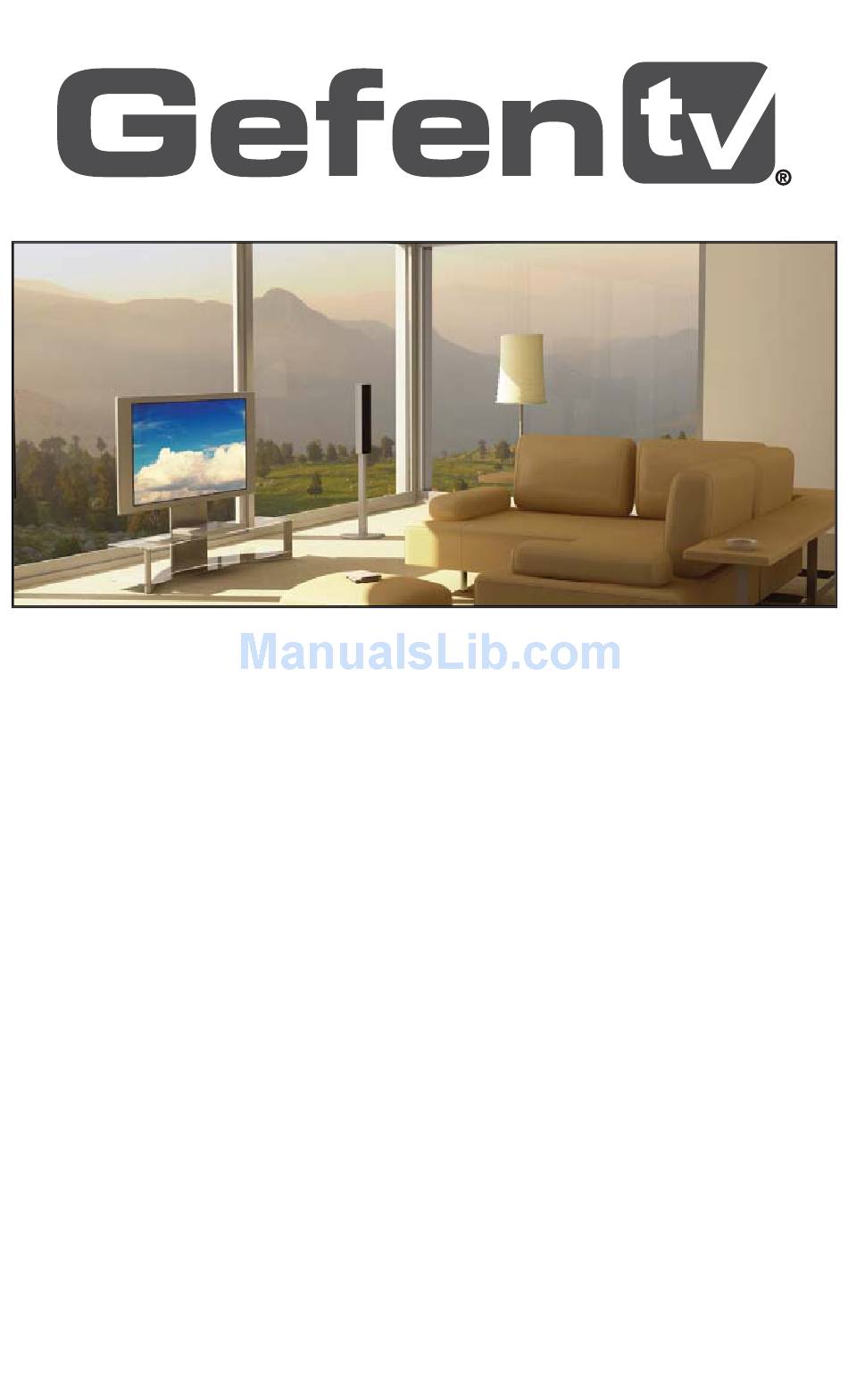

  • Page 1 Digital Audio to Analog Adapter GTV-DIGAUD-2-AAUD User Manual gefentv.com...
  • Page 3 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Digital Audio to Analog Adapter is a trademark of Gefen LLC © 2012 Gefen, LLC. All rights reserved.
  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connection the Digital Audio to Analog Adapter Wiring Diagram Operating the Digital Audio to Analog Adapter Specifications Warranty...
  • Page 5: Introduction

    INTRODUCTION Congratulations on your purchase of the GefenTV Digital Audio to Analog Adapter. Your complete satisfaction is very important to us. GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware.
  • Page 6: Operation Notes

    OPERATION NOTES THIS PAGE LEFT INTENTIONALLY BLANK...
  • Page 7: Features

    FEATURES Features • Converts S/PDIF or TOSLink digital audio signals to analog L/R audio • Digital interpolation fi lter and digital-to-analog converter (DAC) • Accepts uncompressed digital audio as input • Samples at 32, 44.1, 48 and 96 KHz • 2-channel LPCM (Linear Pulse Code Modulation) •...
  • Page 8: Panel Layout

    PANEL LAYOUT Front Back Side...
  • Page 9: Panel Descriptions

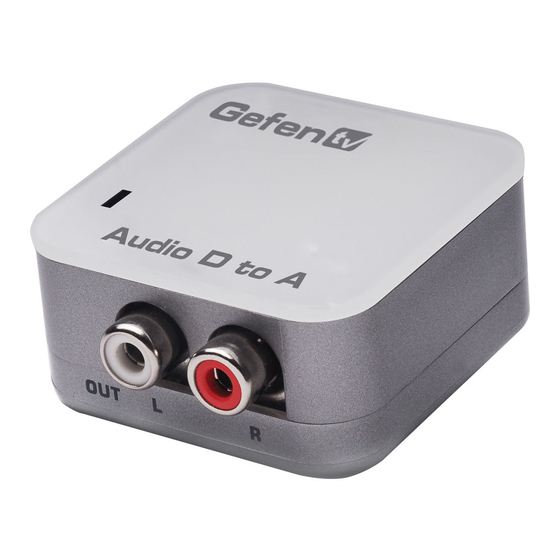

    PANEL DESCRIPTIONS Power Indicator This LED indicator will glow bright red once the included 5V DC power supply has been connected between the Digital Audio to Analog Adapter and an available electrical outlet. Out L Connect an RCA cable from this port to the left channel input of the A/V device.
  • Page 10: Connection The Digital Audio To Analog Adapter

    CONNECTING THE DIGITAL AUDIO TO ANALOG ADAPTER How to Connect the Digital Audio to Analog Adapter Connect an Optical and/or Coax cable from the audio source(s) to the Digital Audio to Analog Adapter. IMPORTANT: Before connecting the included optical cable between the audio source and the Digital Audio to Analog Adapter, be sure to remove the clear plastic protective cover on both end of the TOSLINK™...
  • Page 11: Operating The Digital Audio To Analog Adapter

    OPERATING THE DIGITAL AUDIO TO ANALOG ADAPTER Switching between Optical and Coax Switching to the Optical (TOSLINK™ ) input • Slide the Optical / Coax switch to the far left as shown in the photo below: Switching to the Coax (S/PDIF™ ) input •...
  • Page 12: Specifications

    SPECIFICATIONS Digital Audio Inputs............(1) TOSLINK™, (1) S/PDIF Analog Audio Outputs ..............(1) L+R RCA-type Distortion................... < 0.001% @ 1 kHz SNR............. > 90 dB (20 Hz - 20 kHz, A-weighted) Power Supply..................5V /1A DC Power Consumption................5W (max.) Operating Temperature................. 0 to +70° C Dimensions (W x H x D) ......1.8’’...
  • Page 13: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 16 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefentv.com This product uses UL or CE listed power supplies.
