- Page 1 DVI Detective U S E R M A N U A L www.gefen.com...
- Page 2 6265 Variel Ave. Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI Detective is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the DVI Detective Specifi cations Warranty... -
Page 4: Introduction
DDC CAT5 when your source is non HDCP. How it Works Connect your DVI or ADC monitor to the DVI Detective and then power the DVI Detec- tive. The DVI Detective then reads the EDID of your display, and once the LED stops blinking the DVI Detective has remembered the EDID of your display. -
Page 5: Features
• No need to be selected to the computer that is booting up with the DVI Switcher or ADC Switcher • Installs in seconds *Note - DVI pins are pass thru Includes: 1' DVI cable (m-m) 5VDC Power Supply DVI Detective User's Manual... -
Page 6: Panel Descriptions

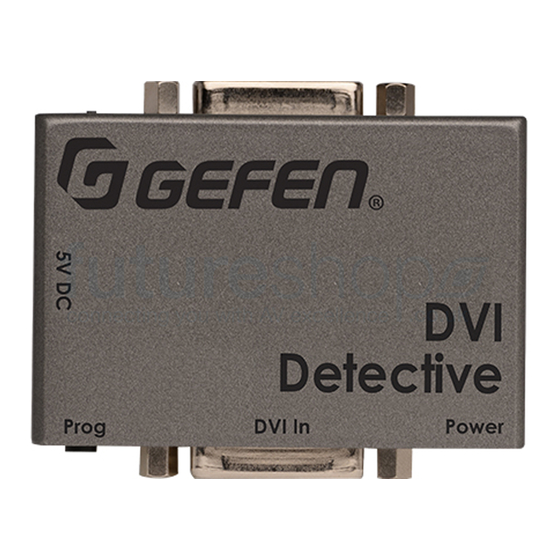

PANEL DESCRIPTIONS 5V Power Supply Input DVI Input DVI Input Power/Status Indicator light... -
Page 7: Connecting And Operating The Dvi Detective
How to Connect the DVI Detective 1- Power on your display, and connect your display to the DVI Out on the DVI Detective. 2- Plug the 5v power supply into the DVI Detective, once the LED stops blinking the DVI Detective has fi... -
Page 8: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ................. 1.65 GHz Input Video Signal ..................1.2 volts p-p Input DDC Signal ..................5 volts p-p (TTL) Maximum Single Link Range ............. 1920 x 1200 x 60hz DVI Input/Output Connector Type ................DVI-I Power Consumption .................. 5 Watts (max.) Power Supply ...................... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 10 6265 Variel Avenue Woodland Hills, CA 91367 1-800-545-6900 818-884-6294 fax: 818-884-3108 www.gefen.com gsinfo@gefen.com...
