- Page 1 Component w/ DigitalAudio to HDMI Adapter U S E R M A N U A L www.gefen.com...
- Page 2 Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Component w/ Digital Audio to HDMI Adapter is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the Component w/ Digital Audio to HDMI Adapter Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. Introduction The Component + Digital Audio to HDMI™... -
Page 5: Features
• Encodes digital audio onto the video signal for HDMI™ video and audio • Supports HDTV/YPbPr • Supports HDTV resolution up to 1080p • HDMI™ compliant Includes: (1) Component + Digital Audio to HDMI Adapter (1) 5V Power Supply (1) 6 ft Toslink Digital Audio Cable (1) Users Manual... -
Page 6: Panel Descriptions

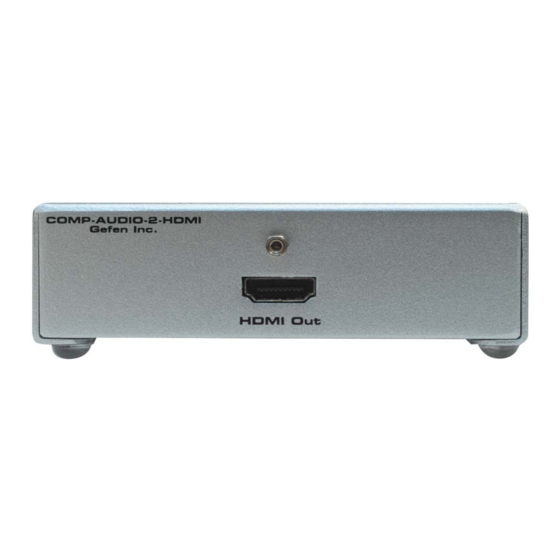

PANEL DESCRIPTIONS HDMI Output Connects to 5VDC Power Supply Component Input TOSlink Input LED Power Indicator... - Page 7 1- Connect your HDMI compliant monitor to the HDMI female connector at the output side of the Component Audio to HDMI Adapter. 2- Connect the Component cable between Component Audio to HDMI Adapter and the Component output of your device.
-
Page 8: Specifi Cations
SPECIFICATIONS HDMI Video Amplifi er Bandwidth...1.65 Gbps VGA Amplifi er Bandwidth...350 Mhz Input Video Signal...1.2 volts p-p Input DDC Signal...5 volts p-p (TTL) HDMI Connector...type A (19 pin) female Video Connector...3 RCA Component Audio Connector...digital Toslink Power Consumption...10 watts (max) Power Supply...5V DC Dimensions...4”W x 1”H x 4”D Shipping Weight...2 lbs. -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
