- Page 1 www.gefen.com...
- Page 2 Notice Gefen LLC. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. HDMI to DVI Audio Adapter is a trademark of Gefen LLC. © 2011 Gefen LLC, All Rights Reserved.
-
Page 3: Table Of Contents
CONTENTS CONTENTS CONTENTS Introduction Operation Notes Features / Package Includes Panel Layout Panel Descriptions Connecting and Operating the HDMI to DVI Audio Adapter EDID Guide DIP Switch Guide Specifi cations 10 Warranty... -
Page 4: Introduction
Congratulations on your purchase of the HDMI to DVI Audio Adapter. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE HDMI TO DVI AUDIO ADAPTER The HDMI source device needs an EDID (display information) to operate correctly. By default, the HDMI to DVI Audio Adapter will use the EDID from the device connected to the DVI output. -
Page 6: Features / Package Includes
FEATURES Features • Allows you to connect HDMI outputs to TOSLINK and a DVI display • Decodes digital audio and video signal from HDMI™ video and audio • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • Built in EDID selection for audio support •... -
Page 7: Panel Layout

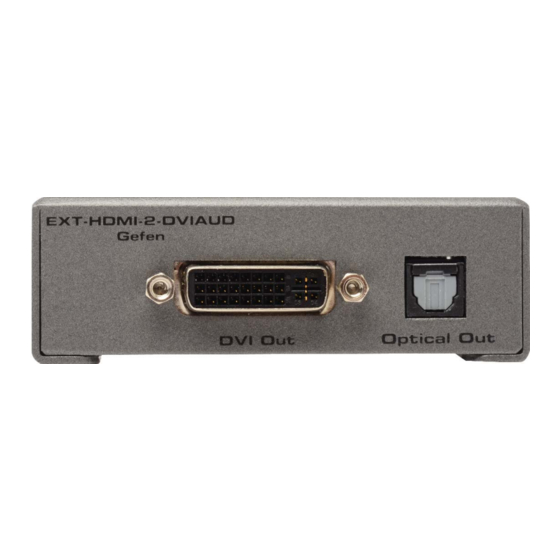

PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS DVI Output Connector This output will accept a single DVI output device via a DVI-D type connector. The video portion of the HDMI signal will be separated from the audio portion and output through this connector. TOSLINK Digital Audio Output Connector This output will accept a single TOSLINK (optical) digital audio device via a TOSLINK female connector. -
Page 9: Connecting And Operating The Hdmi To Dvi Audio Adapter
CONNECTING AND OPERATING THE HDMI TO DVI AUDIO ADAPTER How to Connect the HDMI to DVI Audio Adapter Connect the HDMI source device to the HDMI input on the HDMI to DVI Audio Adapter using the supplied HDMI cable. Connect the DVI capable output device to the DVI output on the HDMI to DVI Audio Adapter using a user supplied DVI cable. -
Page 10: Edid Guide
EDID GUIDE EDID. What is it and what is it used for? Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. - Page 11 USING PRE-PROGRAMMED EDID Some situations require forcing EDID (display and audio capability data) for troubleshooting purposes. The goal is to provide settings that the source device will understand, resolving cases where the data is indeterminate or wrong due to an interfacing issue and the source does not know what signal to output to the display.
-
Page 12: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock............. 165 MHz (HDMI and DVI) HDMI Input Connector............(1) Type A 19 pin female DVI Output Connector............(1) DVI-I 29 pin female Audio Output Connector............(1) Optical (TOSLINK) Power Supply....................5V DC Power Consumption................5 Watts (max) Dimensions................3.2”D x 3.4” W x 1”H Shipping Weight....................2 lbs. -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 This product uses UL listed power supplies.
