- Page 1 DVI Detective USER MANUAL www.gefen.com...
- Page 2 Gefen Inc. C/O Customer Service 20600 Nordhoff Street Chatsworth CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hardware, packaging and any accompanying ASKING FOR ASSISTANCE (818) 772-9100 (800) 545-6900 (818) 772-9120 Notice documentation without prior written notice.
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the DVI Detective Specifications Warranty TABLE OF CONTENTS... -
Page 4: Introduction

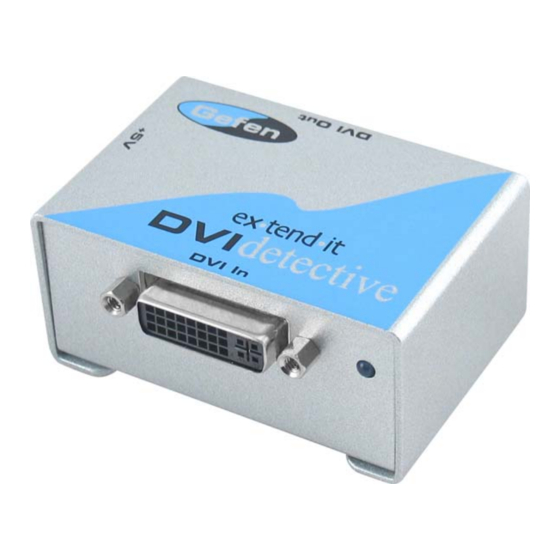

The ex•tend•it DVI Detective reads and remembers the EDID of your display. The DVI Detective allows you to use Gefen’s DVI Switchers or ADC Switchers without having to be selected to the computer that is booting up. It also allows you to use Gefen's DVI/HDMI extenders without the need for the DDC CAT5 when your source is non HDCP. -
Page 5: Features
Features • No power required after initial programming • Maintains highest DVI single link video resolution • Supports Apple Flat Panel Displays • Supports DDWG standard for DVI compliant monitors • No need to be selected to the computer that is booting up with the DVI Switcher or ADC Switcher •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The Dvi Detective
Connecting and Operating the DVI Detective 1- Power on your display, and connect your display to the DVI Out on the DVI Detective. 2- Plug the 5v power supply into the DVI Detective, once the LED stops blinking the DVI Detective has finished reading the EDID of the display. -
Page 8: Specifications
SPECIFICATIONS Video Amplifier Bandwidth ... 1.65 GHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200 x 60hz DVI Input/Output Connector Type ... DVI-I Power Consumption ... 5 Watts (max.) Power Supply ... -
Page 9: Warranty
Gefen Inc. is notified within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifica- tions.
