Component Audio to HDMI Adapter
Accessories
Convert Component Video and Analog Audio to HDMI

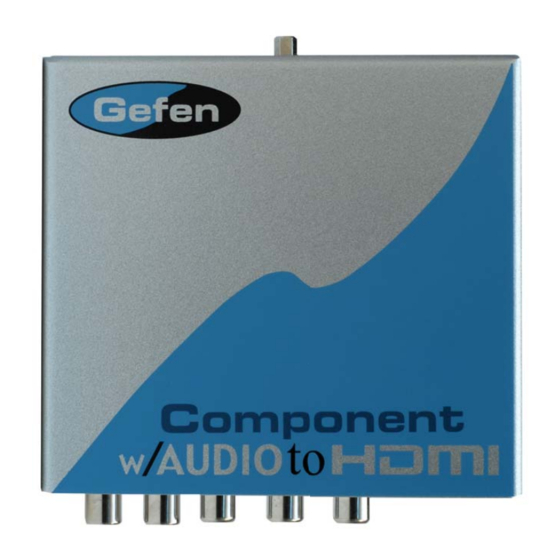

The Component Audio to HDMI™ Adapter is a unique device that allows older analog devices to be
integrated seamlessly into the modern home theater. This adapter connects component video
home theater devices to HDMI™ compliant digital monitors. This adapter also takes analog L+R
audio and encodes it onto the HDMI signal for the full HDMI video and audio effect. With the
Component Audio to HDMI Adapter legacy home theater devices and computer systems can be
easily connected any HDMI display for the full digital video and audio experience.
HDMI Cables
How It Works
Simply connect the supplied Component cable to the input side of the Component Audio to HDMI™
Adapter. Then connect the RCA audio cables to the audio inputs of the Component Audio to HDMI
Adapter. Then connect the HDMI display or projector to the HDMI output of the Component Audio
to HDMI Adapter. The adapter generates the compatible analog to digital conversion signals for
video and audio as well encoding the audio onto the HDMI to make the connection between the
3 RCA Component
analog inputs and the digital output work.
Cables
Features:
Allows you to connect YPbPr HDTV sources to an HDMI™ display
Encodes analog audio onto the video signal for HDMI™ video and audio
Supports HDTV resolution up to 1080p
HDMI™ compliant
Specifications:
Digital Video Amplifier Bandwidth: 165 MHz
Video Amplifier Bandwidth: 350 Mhz
Input Video Signal: 1.2 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
HDMI Connector: type A (19 pin) female
Video In: 3 RCA component
Audio Connector: analog RCA L+R
Power Consumption: 10 watts (max)
Power Supply: 5V DC
Dimensions: 4"W x 1"H x 4"D
Shipping Weight: 2 lbs.
Package Includes:
Component Audio to HDMI Adapter
One 5V Power Supply
One 6 ft RCA L+R Audio Cable
One 6 ft 3 RCA Cable
Users Manual
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-COMPAUD-2-HDMIN
Advertisement
Table of Contents
Related Manuals for Gefen EXT-COMPAUD-2-HDMIN
Summary of Contents for Gefen EXT-COMPAUD-2-HDMIN
-
Page 1: Specifications
One 5V Power Supply One 6 ft RCA L+R Audio Cable One 6 ft 3 RCA Cable Users Manual EXT-COMPAUD-2-HDMIN Dystrybucja i sprzedaż: Meditronik Sp. z o.o. 02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46 http://www.meditronik.com.pl... - Page 2 Component Audio to HDMI Adapter U S E R M A N U A L www.gefen.com...
- Page 3 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Component Audio to HDMI Adapter is a trademark of Gefen Inc. © 2007 Gefen Inc., All Rights Reserved...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the Component Audio to HDMI Adapter Specifi cations Warranty... -
Page 5: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. Introduction The Component Audio to HDMI™... -
Page 6: Features
FEATURES Features • Allows you to connect YPbPr HDTV sources to an HDMI™ display • Encodes analog audio onto the video signal for HDMI™ video and audio • Supports HDTV resolution up to 1080p • HDMI™ compliant Includes: (1) Component Audio to HDMI Adapter (1) 5V Power Supply (1) 6 ft RCA L+R Audio Cable (1) 6 ft 3 RCA Cable... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS HDMI Output Connects to 5VDC power supply L+R Audio Inputs Component Input LED Power Indicator... -
Page 8: Connecting And Operating The Component Audio To Hdmi Adapter
CONNECTING AND OPERATING THE COMPONENT TO HDMI ADAPTER How to Connect the Component Audio to HDMI Adapter 1- Connect your HDMI compliant monitor to the HDMI female connector at the output side of the Component Audio to HDMI Adapter. 2- Connect the Component cable between Component Audio to HDMI Adapter and the Component output of your device. -
Page 9: Specifi Cations
SPECIFICATIONS HDMI Video Amplifi er Bandwidth...............1.65 Gbps Video Amplifi er Bandwidth..................350 Mhz Input Video Signal...................1.2 volts p-p Input DDC Signal..................5 volts p-p (TTL) HDMI Connector................type A (19 pin) female Video In....................3 RCA component Audio Connector..................analog RCA L+R Power Consumption..................10 watts (max) Power Supply......................5V DC Dimensions....................4”W x 1”H x 4”D Shipping Weight......................2 lbs. -
Page 10: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
