Summary of Contents for Gefen EXT-COMPAUD-2-HDMIN

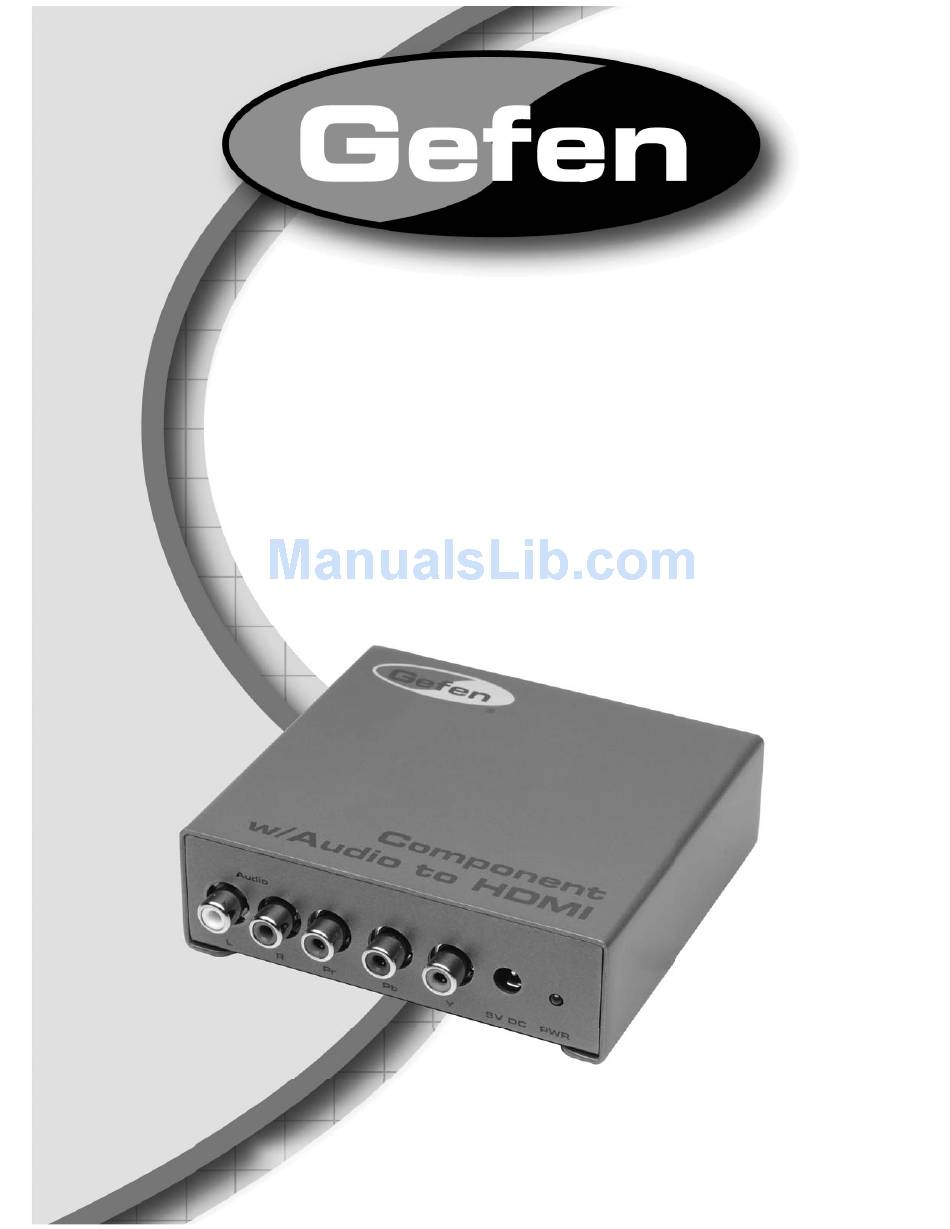

- Page 1 ® Component Audio to HDMI ® Adapter E X T - C O M P A U D - 2 - H D M I N U S E R ' S M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. ® HDMI , the HDMI Logo, and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing in the United States and other countries.
- Page 3 TABLE OF CONTENTS Introduction Features Panel Descriptions Connecting and Operating the Component Audio to HDMI Adapter Specifi cations Warranty...
- Page 4 Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. Introduction The Component Audio to HDMI Adapter is a unique device that allows older analog devices to be integrated seamlessly into the modern home theater.
- Page 5 FEATURES Features • Allows you to connect YPbPr HDTV sources to an HDMI display • Encodes analog audio onto the video signal for HDMI video and audio • Supports HDTV resolution up to 1080p • HDMI compliant Includes: (1) Component Audio to HDMI Adapter (1) 5V Power Supply (1) 5-Connector RCA-style Component/Audio cable (1) Users Manual...

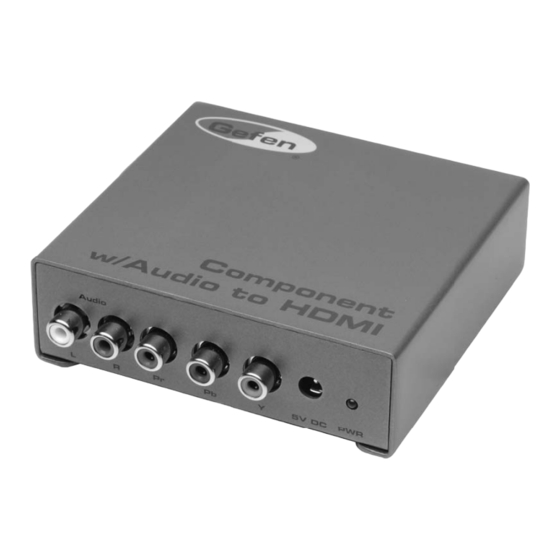

- Page 6 PANEL DESCRIPTIONS HDMI Output Connects to 5VDC power supply L+R Audio Inputs Component Input LED Power Indicator...
- Page 7 CONNECTING AND OPERATING THE COMPONENT TO HDMI ADAPTER How to Connect the Component Audio to HDMI Adapter 1- Connect your HDMI compliant monitor to the HDMI female connector at the output side of the Component Audio to HDMI Adapter. 2- Connect the included 5-RCA A/V cable between the Component Audio to HDMI Adapter and the 3 RCA Component Video output jacks on your source device.
- Page 8 SPECIFICATIONS HDMI Video Amplifi er Bandwidth.................165 MHz Video Amplifi er Bandwidth..................350 Mhz Input Video Signal...................1.2 volts p-p Input DDC Signal..................5 volts p-p (TTL) HDMI Connector................type A (19 pin) female Video In....................3 RCA component Audio Connector..................analog RCA L+R Power Consumption..................10 watts (max) Power Supply......................5V DC Dimensions....................4”W x 1”H x 4”D Shipping Weight......................2 lbs.
