Summary of Contents for Gefen DVI-EDIDN

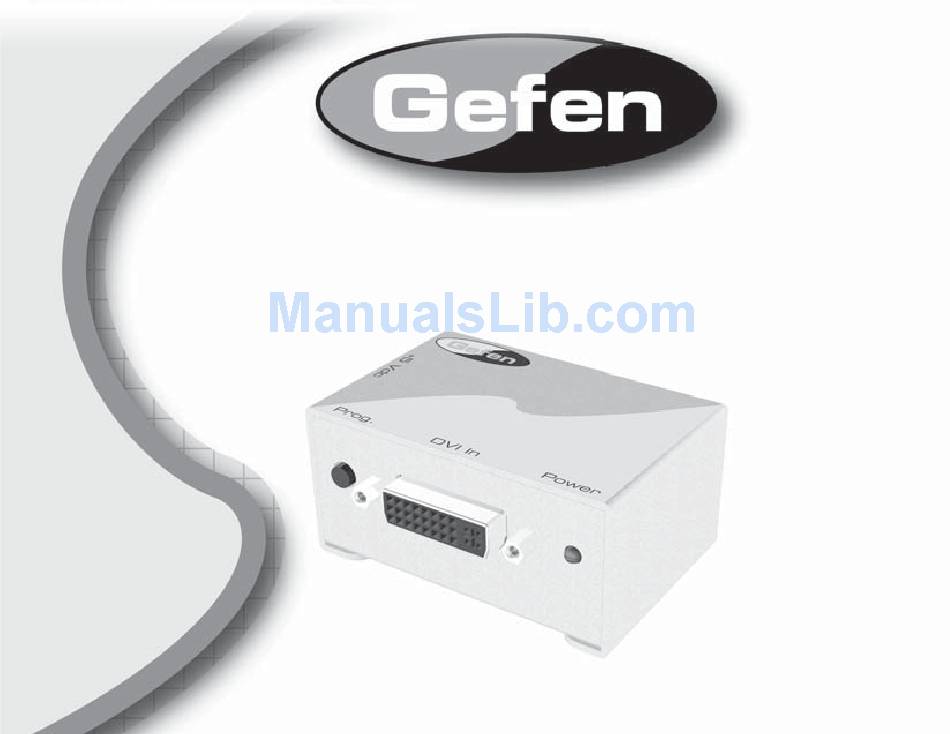

- Page 1 DVI Detective U S E R M A N U A L www.gefen.com...
- Page 2 20600 Nordhoff St. Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying The DVI Detective is a trademark of Gefen Inc. ASKING FOR ASSISTANCE (818) 772-9100 (800) 545-6900...
-
Page 3: Table Of Contents
Introduction Features Panel Layout Connecting and Operating the DVI Detective Write Protecting the DVI Detective Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
The Detective can connect to a DVI port or ADC port with the use of an adapter. It works with all digital displays (DVI) as well as Apple’s line of fl at panel displays (ADC). Even analog display EDID’s can be used with the DVI Detective by... -
Page 5: Features
Features • No power required after initial programming • Keeps computer systems from deactivating inactive DVI ports • Maintains highest Single Link and Dual Link resolutions • Works with all digital and analog displays • Installs in seconds Includes: (1) DVI Detective (1) 1’... -
Page 6: Panel Layout

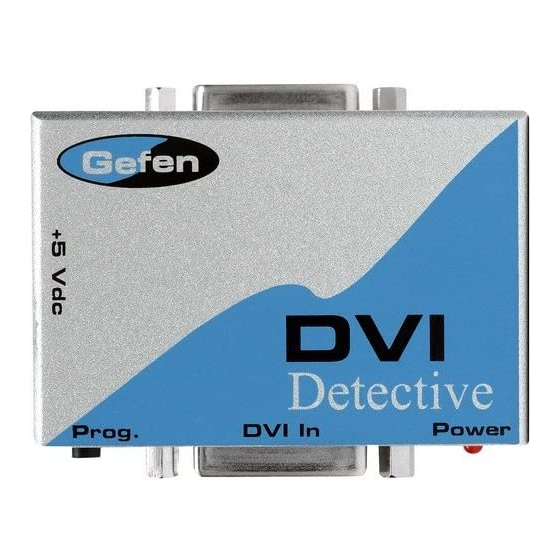

PANEL LAYOUT Front Panel Power LED Programming Indicator Button DVI Source Back Panel Write Protection Switch... -
Page 7: Connecting And Operating The Dvi Detective
CONNECTING AND OPERATING THE DVI DETECTIVE Before proceeding, please ensure that the write protect switch is in the E (write enabled) position. Please see the diagram on the next page. Connect your display to the DVI Out port on the DVI Detective. Plug the supplied 5V DC power supply into the DVI Detective. -
Page 8: Write Protecting The Dvi Detective
WRITE PROTECTING THE DVI DETECTIVE Write protection switch Once the DVI Detective is programmed and working, you can write protect the unit to prevent an accidental overwrite. This is done by simply moving the write protect switch to the D (write disabled) position. By default, the unit is shipped in the E (write enabled) position. -
Page 9: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 165 MHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200 x 60hz DVI Input/Output Connector Type ... DVI-I Power Consumption ... 5 Watts (max.) Power Supply ...
