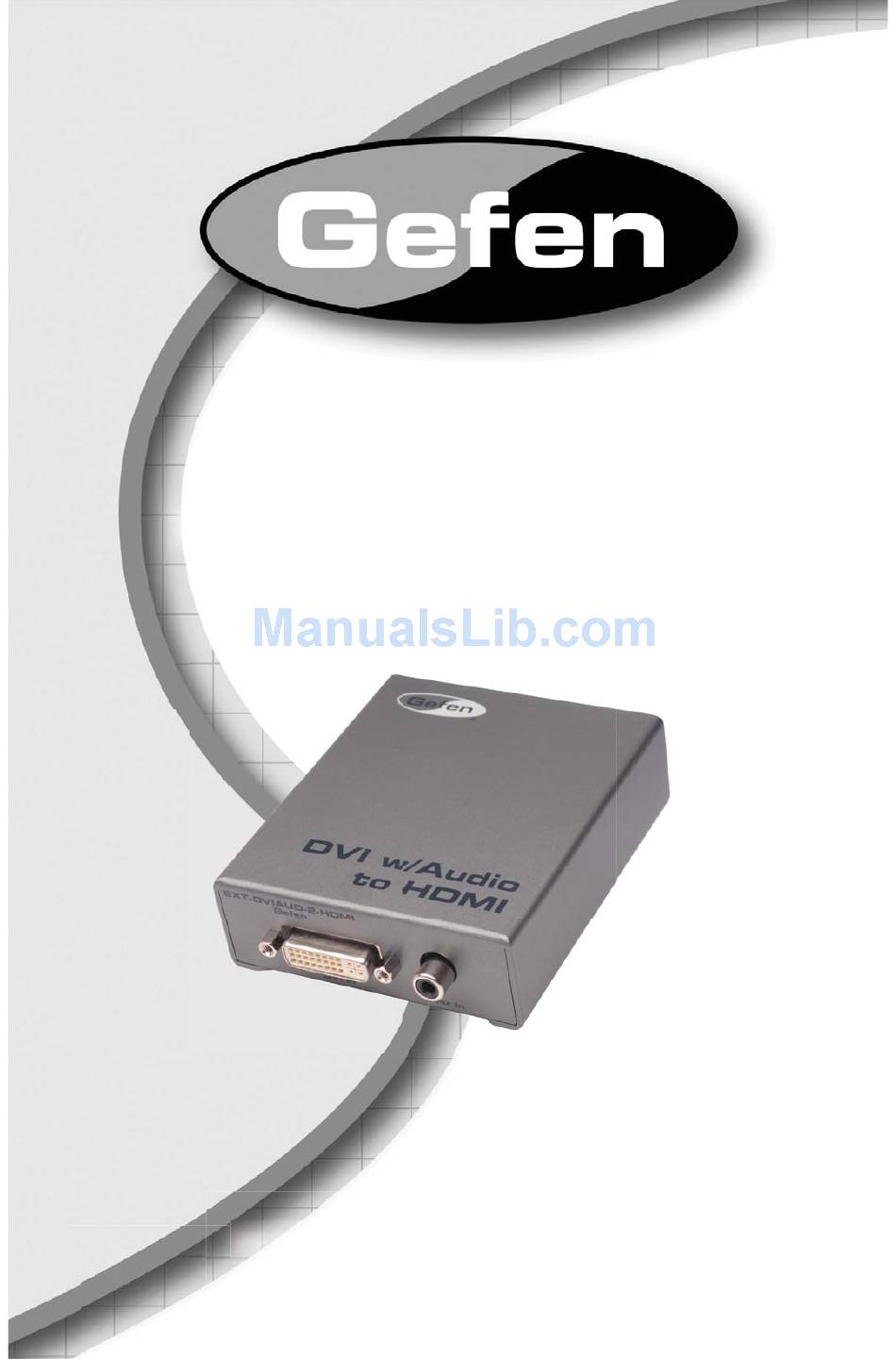

- Page 1 ® DVI Audio to HDMI Adapter EXT-DVIAUD-2-HDMI User Manual www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI Audio to HDMI Adapter is a trademark of Gefen LLC All trademarks are the property of their respective owners.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting & Operating The DVI Audio To HDMI Adapter DVI Pin Confi guration & Assignments HDMI Pin Confi guration & Assignments Specifi cations 10 Warranty... -
Page 4: Introduction
Congratulations on your purchase of the DVI Audio to HDMI Adapter. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE DVI AUDIO TO HDMI ADAPTER • The DVI Audio to HDMI is designed to include a S/PDIF digital audio source seamlessly integrating it into modern home theater situations. • The adapter encodes the digital audio onto the digital video signal to generate the HDMI signal. -
Page 6: Features
FEATURES Features • Allows the connection of computers or other sources with DVI output and S/PDIF to an HDMI-compliant display • Encodes digital audio on to the video signal for HDMI-compliant video and audio • Supports HDTV resolutions • Supports resolutions up to 1080p, 2K, and 1920 x 1200 •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS HDMI Output Jack Run an HDMI cord from here to the display 5VDC Input Jack Plug the 5VDC line from the Supplied Power Supply in here Power On LED When this LED is illuminated, the power to the device is on DVI Input Jack Plug the DVI cord from the source in here Coaxial (S/PDIF) Jack... -
Page 9: Connecting & Operating The Dvi Audio To Hdmi Adapter
CONNECTING & OPERATING THE DVI AUDIO TO HDMI ADAPTER How to Connect the DVI Audio to HDMI Adapter Connect your HDMI compliant display to the HDMI connector at the output side of the DVI Audio to HDMI Adapter. Then simply connect the supplied DVI cable, from your source, to the input side of the DVI Audio to HDMI Adapter. -
Page 10: Dvi Pin Confi Guration & Assignments
DVI PIN CONFIGURATION & ASSIGNMENTS DVI-I Input Pin Assignment DVI-Digital(DVI-D): Supports digital-only connections between the host computer and display. This interface is designed for a 12 or 24-pin connections to enable single or dual-link mode activation. DVI-I Input Pin Assignment Signal Assignment Signal Assignment Signal Assignment... -
Page 11: Hdmi Pin Confi Guration & Assignments
HDMI PIN CONFIGURATION & ASSIGNMENTS HDMI Output Pin Assignment HDMI Output Pin Assignment Function Assignment Function Assignment T.M.D.S. Data2+ T.M.D.S. Data2 Shield T.M.D.S. Data2- T.M.D.S. Data1+ T.M.D.S. Data1 Shield T.M.D.S. Data1- T.M.D.S. Data0+ T.M.D.S. Data0 Shield T.M.D.S. Data0- T.M.D.S. Clock+ TMDS Clock Shield T.M.D.S. -
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 165 MHz Pixel clock frequency ..............24Mhz - 165 Mhz Input Video Signal ................1.2 volts p-p Input DDC Signal ................. 5 volts p-p (TTL) HDMI Connector ............... Type A (19 pin) Female DVI Connector ..........DVI-I (29 pin) female (digital only) Audio Connector .................. -
Page 13: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 15 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
