Assembly – York Midi and Serrano Free-Standing
The stove will be supplied in two separate boxes. The first contains the cast iron stove body and
the second the Flame effect unit. Check that the specified components are included before you
start setting up your Stove.
Box 1
1 x Cast iron stove body
(with transit bar fitted)
1 x Set of Four Legs
1. Carefully remove all packaging and protective materials from the stove body. Remove
and discard the 'transit bar' from stove body. This item stops the sides of the stove body
from moving in transit. It has been positioned into the vertical channels where the Flame
Effect Unit is to be slotted into place.
2. Remove the cast iron lid from the stove body and lay the stove body on its back
3. Attach the four legs using the bolts/nuts provided. Please note these bolts/nuts will
normally be pre-fitted into the base of the stove. Stand the main stove body upright on its
feet.
4. Carefully remove all packaging and protective materials from the flame effect unit.
5. Insert the flame effect unit into the stove body. The unit is lowered down carefully from
the top of the body with the sides located into the grooves on each side of the stove
body. If the flame effect will not slide down easily, you may need to slacken the bolts
connecting the sides of the stove body to the front and base. Take care not to trap the
cable whilst lowering the flame effect unit into the stove body.
6. Open the main door (and ash door on York Midi). On the Serrano, the door simply pulls
open using the handle. For the York Midi you will need to turn the handle anti-clockwise
until it comes free from the locking thread.
7. Remove the Perspex from the stove. The Perspex is held in place by four screws which
will need to be removed.
8. Remove both sides of the protective covering from the Perspex.
Side View
9. Finally place the cast iron lid back on the stove.
York Midi Freestanding Remote
Serrano Freestanding Remote
Assembly Sequence:

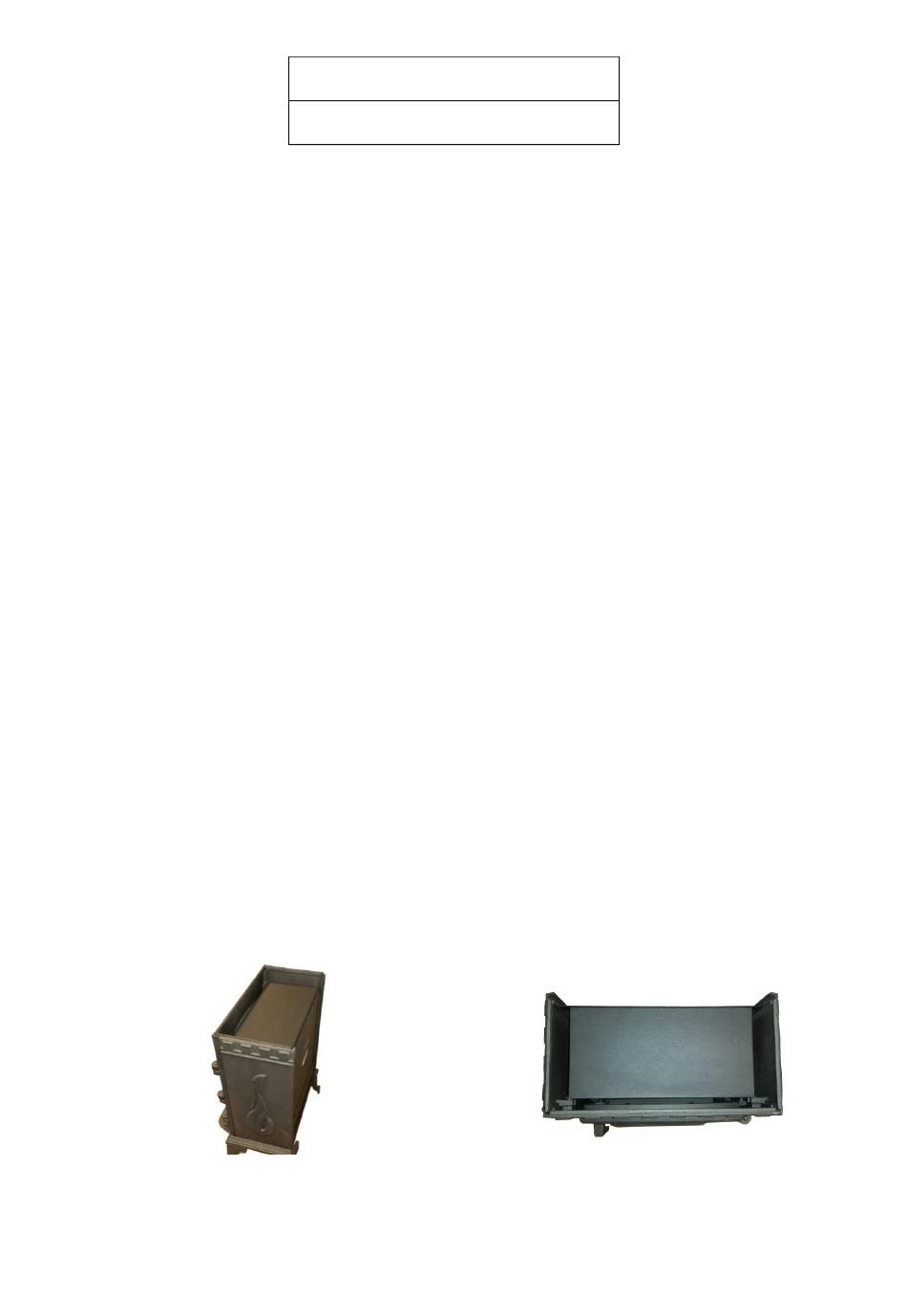

Flame Effect Unit – Position within stove body
Top View
Box 2
1 x Flame Effect Unit
1 x Decorative coal effect
1 x Instruction booklet.
