Panel Connector - AOpen AX59PRO User Manual

Hardware Installation

2.3.12 Panel Connector

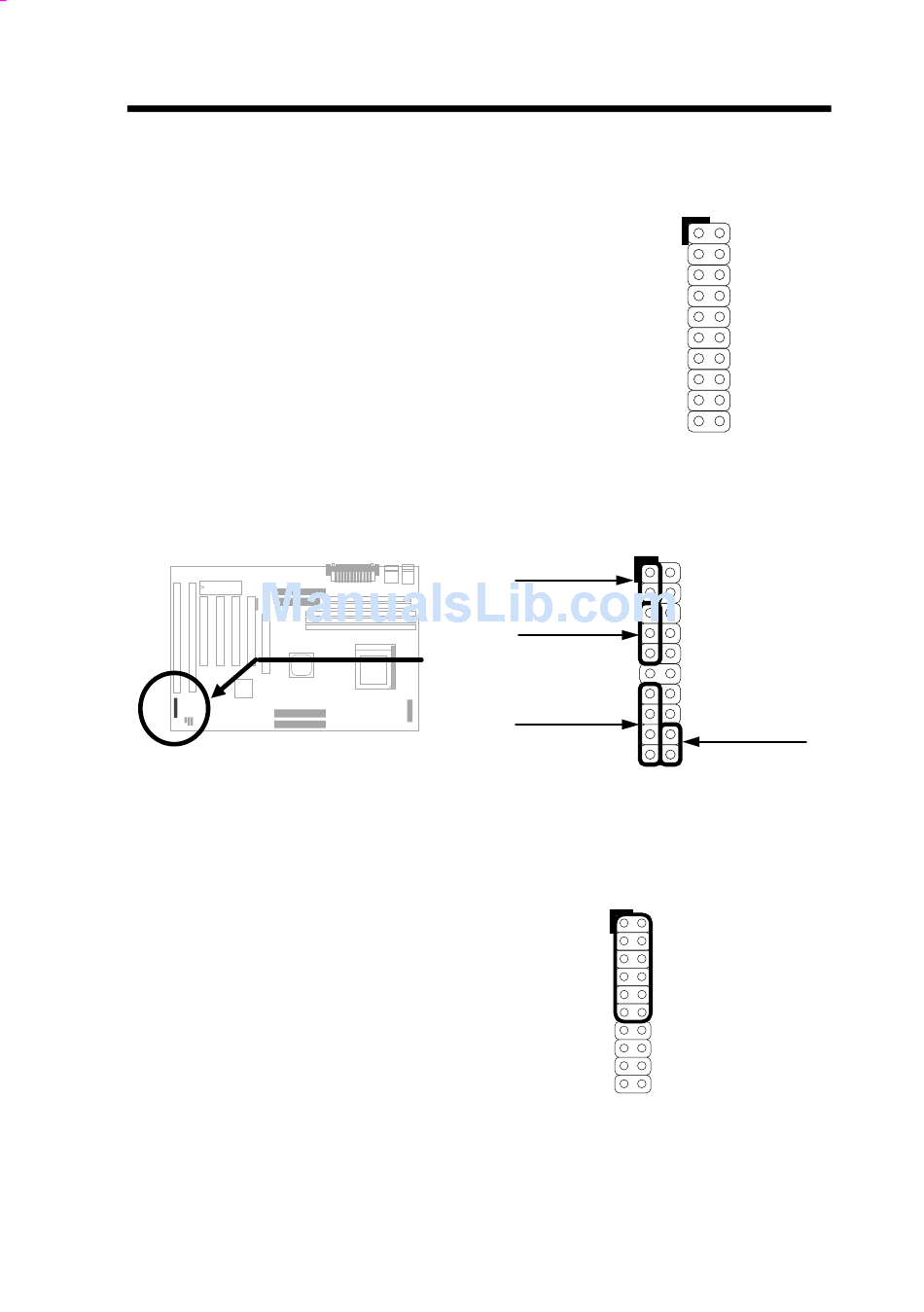

The Panel (multifunction) connector is a 20-
pin connector marked as PANEL on the
board. Attach the power LED, keylock,
speaker, and reset
corresponding pins as shown in the figure.
Some housings have a five-pin connector for
the keylock and power LED Since power
LED and keylock are aligned together, you
can still use this kind of connector.
Other housings may have a 12-pin
connector. If your housing has this
type of connector, connect it to
PANEL as shown in the figure. Make
sure that the red wire of the
connector is connected to +5V.
2-20
switch to the
Keylock
Power LED
Speaker
1 11
GND +5V
KEYLOCK GND
GND Reserved
RESET GND
POWER LED NC
SPEAKER NC
+5V GND
GND NC
NC RESET
SPEAKER GND
10 20
PANEL
1 11
+
+
+
+
Reset
10 20
PANEL
1 11
+5V
10 20
PANEL
