Hardware Installation

2.2 Jumpers

Jumpers are made by pin headers and plastic connecting caps for the purpose
of customizing your hardware. Doing so requires basic knowledge of computer
hardware, be sure you understand the meaning of the jumpers before you
change any setting. The onboard jumpers are normally set to their default with
optimized settings.

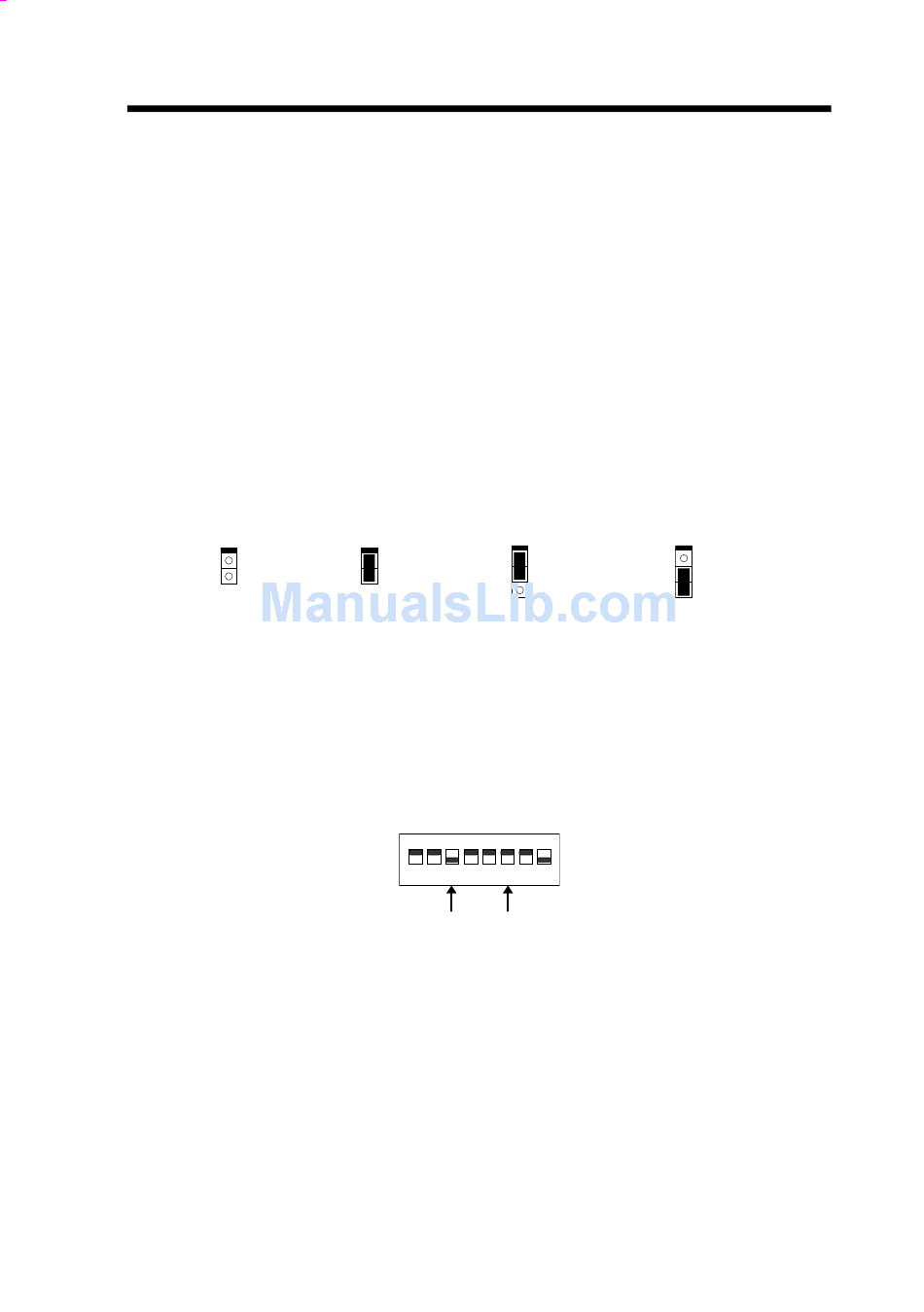

On the mainboard, normally there is a bold line marked beside pin 1 of the
jumper, sometimes, there are numbers also. If we connect (short) plastic cap to
pin 1 and 2, we will say set it at 1-2, and when we say jumper is open, that
means no plastic cap connected to jumper pins.
1
2
Open
For your convenience to install a CPU, this motherboard also use a DIP switch
to set CPU voltage and frequency ratio. The following figure simply shows you
how to set this DIP switch, please see also to next sections for more details.
2-4
1
2
Short
Jumper set at 1-2
ON
1 2 3 4 5 6 7
OFF ON
1 1
2 2
3 3
Jumper set at 2-3
8
