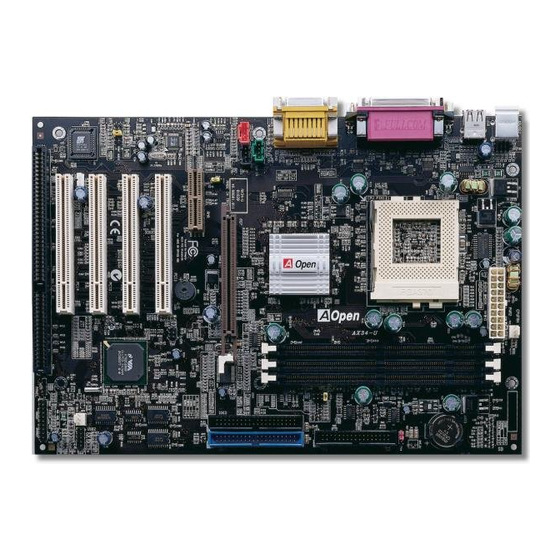

AOpen AX34 Easy Installation Manual

AOpen AX34 Easy Installation Manual

Motherboard aopen
Hide thumbs Also See for AX34:

Advertisement

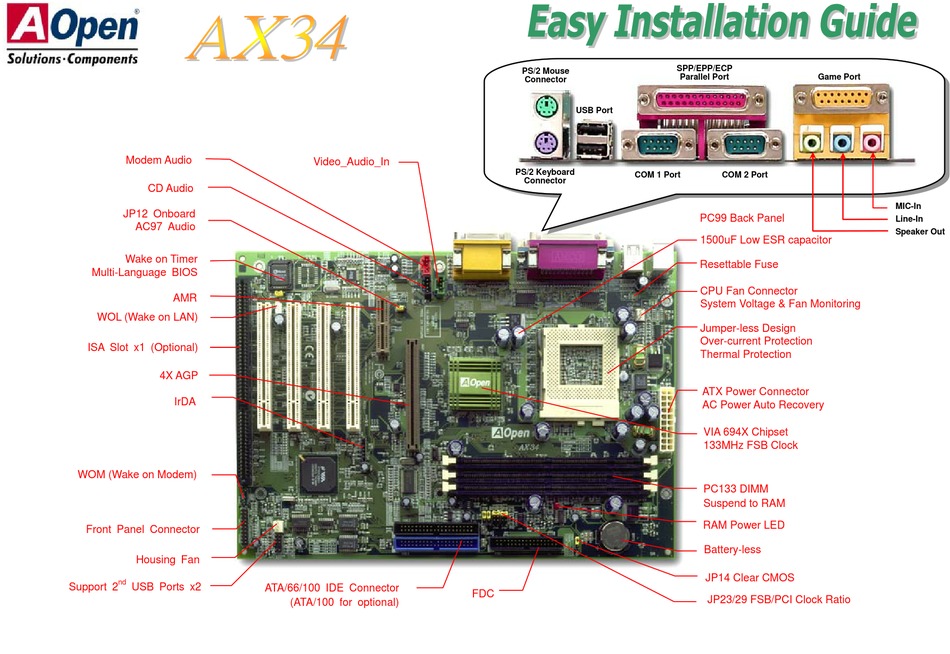

Modem Audio
CD Audio
JP12 Onboard
AC97 Audio
Wake on Timer
Multi-Language BIOS
AMR
WOL (Wake on LAN)
ISA Slot x1 (Optional)
4X AGP
IrDA
WOM (Wake on Modem)
Front Panel Connector
Housing Fan
nd
Support 2
USB Ports x2
Video_Audio_In
ATA/66/100 IDE Connector
(ATA/100 for optional)
PS/2 Mouse
Connector
USB Port
PS/2 Keyboard
COM 1 Port
Connector
FDC
SPP/EPP/ECP
Game Port
Parallel Port
COM 2 Port
PC99 Colored Back Panel
PC99 Back Panel
1500uF Low ESR capacitor
Resettable Fuse
CPU Fan Connector
System Voltage & Fan Monitoring
Jumper-less Design
Over-current Protection
Thermal Protection
ATX Power Connector
AC Power Auto Recovery
VIA 694X Chipset
133MHz FSB Clock
PC133 DIMM
Suspend to RAM
RAM Power LED
Battery-less
JP14 Clear CMOS
JP23/29 FSB/PCI Clock Ratio
MIC-In
Line-In
Speaker Out

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX34 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AOpen AX34

  • Page 1 SPP/EPP/ECP PS/2 Mouse Game Port Parallel Port Connector USB Port Modem Audio Video_Audio_In PS/2 Keyboard COM 1 Port COM 2 Port PC99 Colored Back Panel Connector CD Audio MIC-In JP12 Onboard PC99 Back Panel Line-In AC97 Audio Speaker Out 1500uF Low ESR capacitor Wake on Timer Resettable Fuse Multi-Language BIOS...
  • Page 2: Jp14 Clear Cmos

    This Easy Installation Guide x 1 This motherboard has AC97 sound onboard. JP12 is used to enable or disable onboard AD1885 CODEC chip. If you select Disable, you can use your preferred AMR sound card. PART NO.: 49.88902.002 DOC. NO.: AX34-EG-E0104C...
  • Page 3: Jp29/Jp23 Fsb/Pci Clock Ratio

    Installing CPU and Fan JP29/JP23 FSB/PCI Clock Ratio This jumper is used to specify the relationship of PCI and Plug CPU to Socket 370 connector. Be careful of FSB clock. Generally speaking, we suggest you do not CPU orientation. Plug in the fan cable to the 3-pin change the default setting.
  • Page 4: Connecting Front Panel Cable

    Connecting Front Panel Cable Configuring System Memory This motherboard has three 168pin DIMM sockets that allow you to install system memory up to 1.5GB. SDRAM, VCM SDRAM, Registered SDRAM are supported. SPWR ACPI & IDE LED Power LED Tip: The driving capability of new generation Speaker Reset chipset is limited due to the lack of a memory...
  • Page 5: Installing Windows

    Power-on and Load BIOS Setup Autorun Menu from Bonus CD Disc After you finish the setting of jumpers and connect correct cables. Power You can use the autorun menu of Bonus CD disc. Choose the utility and driver and on and enter the BIOS Setup, press <Del> during POST (Power-On select model name.
  • Page 6: Installing Via 4 In 1 Driver

    Installing VIA 4 in 1 Driver BIOS Upgrade AOpen Easy Flash is user-friendlier than traditional flash method. The BIOS binary file You can install the VIA 4 in 1 driver (IDE Bus master, VIA AGP, IRQ Routing Driver, and flash routine are combined together and you simply run a single file to complete the VIA Registry) from the Bonus Pack CD disc autorun menu.
  • Page 7: Part Number And Serial Number

    The problem should be caused by the Turn off the system and re-connect the IDE cable. Check if the system can reboot successfully. IDE cables or HDD itself. AX34 is model name of motherboard, R1.00 is BIOS version. Re-install Windows 95, Windows 98 or Windows NT.
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com.tw/tech/report/default.htm...
