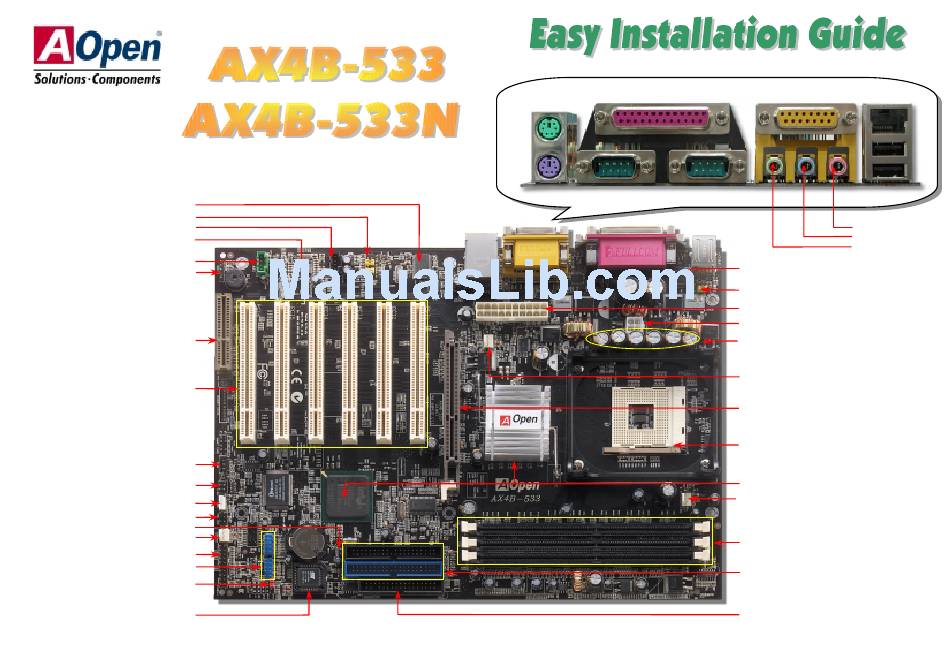

INTEL 8256ET LAN Chip
(AX4B-533N Only)
Front Audio Connector
CD-IN Connector
Onboard AC'97 CODEC
AUX-IN Connector
S/PDIF Connector
CNR Expansion Slot
32-bit PCI Expansion Slot x6
WOM Connector
IrDA Connector
WOL Connector
Dr. LED Connector
Chassis Intrusion Connector
SYSFAN3 Connector
Front Panel Connector
nd
rd
2
and 3
USB Connectors
JP14 CMOS Clear Jumper
4Mb Flash ROM BIOS
(AOpen reserves the right to revise all the specifications and information contained in this document which is
subject to change without notice.)
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2 Keyboard
COM 1 Port
COM 2 Port
Connector
LAN Connector
MIDI/Game Port
(for AX4B-533N)
USB Port
MIC-In
Line-In
Speaker Out
Resetable Fuse
JP28 Keyboard/Mouse Wakeup
Enable/Disable Jumper
ATX Power Connector
4-pin 12V. ATX Power Connector
3300
μ
F Low ESR Capacitors
SYSFAN2 Connector
AGP 4x Expansion Slot
(for 1.5V AGP card)
478-pin CPU socket with Voltage and
Frequency Auto-detection supporting
®
®
Intel
Pentium
4
®
Intel
845E chipset (Brookdale)
CPUFAN1 Connector
184-pin DIMM Socket x3 supports
DDR200/266 DDR SDRAM
maximum up to 2 GB
ATA/33/66/100 IDE Connector x2
FDD Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX4B-533 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AOpen AX4B-533

Summary of Contents for AOpen AX4B-533

  • Page 1 3 USB Connectors ATA/33/66/100 IDE Connector x2 JP14 CMOS Clear Jumper FDD Connector 4Mb Flash ROM BIOS (AOpen reserves the right to revise all the specifications and information contained in this document which is subject to change without notice.)

  • Page 2: Jp14 Clear Cmos

    1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3.

  • Page 3: Installing Processor

    3. Installing Processor 5. Setting CPU Voltage & Frequency This socket supports Micro-FC-PGA2 package CPU, which is the latest CPU package Setting CPU Core Voltage This motherboard supports CPU VID function. The CPU core voltage will be automatically developed by Intel. Other forms of CPU package are impossible to be fitted in. detected and the range is from 1.10V to 1.85V.

  • Page 4: Installing Memory Modules

    6. Installing Memory Modules 8. S/PDIF Connector Although Intel claims that 845E Chipsets only support two DIMM sockets (four banks), we S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides overcome this obstacle with special circuit design in order to provide better adaptability for impressive quality through optical fiber and allows you to enjoy digital audio instead of different combinations of various RAM modules.

  • Page 5: Front Panel Connector

    12. 2 and 3 USB2.0 Ports Supported 10. Front Panel Connector This motherboard provides six USB2.0 ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can use proper cables to connect USB devices from PC99 back panel or connect USB2 and USB3 headers to SPWR the front panel of chassis.

  • Page 6: Installing Lan Driver (For Ax4B-533N)

    BIOS version of your motherboard. If you had got the wrong BIOS, you will not be allowed to proceed with the flash steps. Insert the AOpen Bonus CD and click Have Disk. You may select preferred language in the main menu, then click [Start Flash] to start Enter the appropriate drive for your disk media (for example: D:\), and click OK.

  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. AX4B-533 is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://english.aopen.com.tw/tech/report/default.htm...
