GENICOM Intelliprint
cL160 User Guide
Apr 02
Genicom
Publication No. GEG-99141

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intelliprint cL160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Genicom Intelliprint cL160

Summary of Contents for Genicom Intelliprint cL160

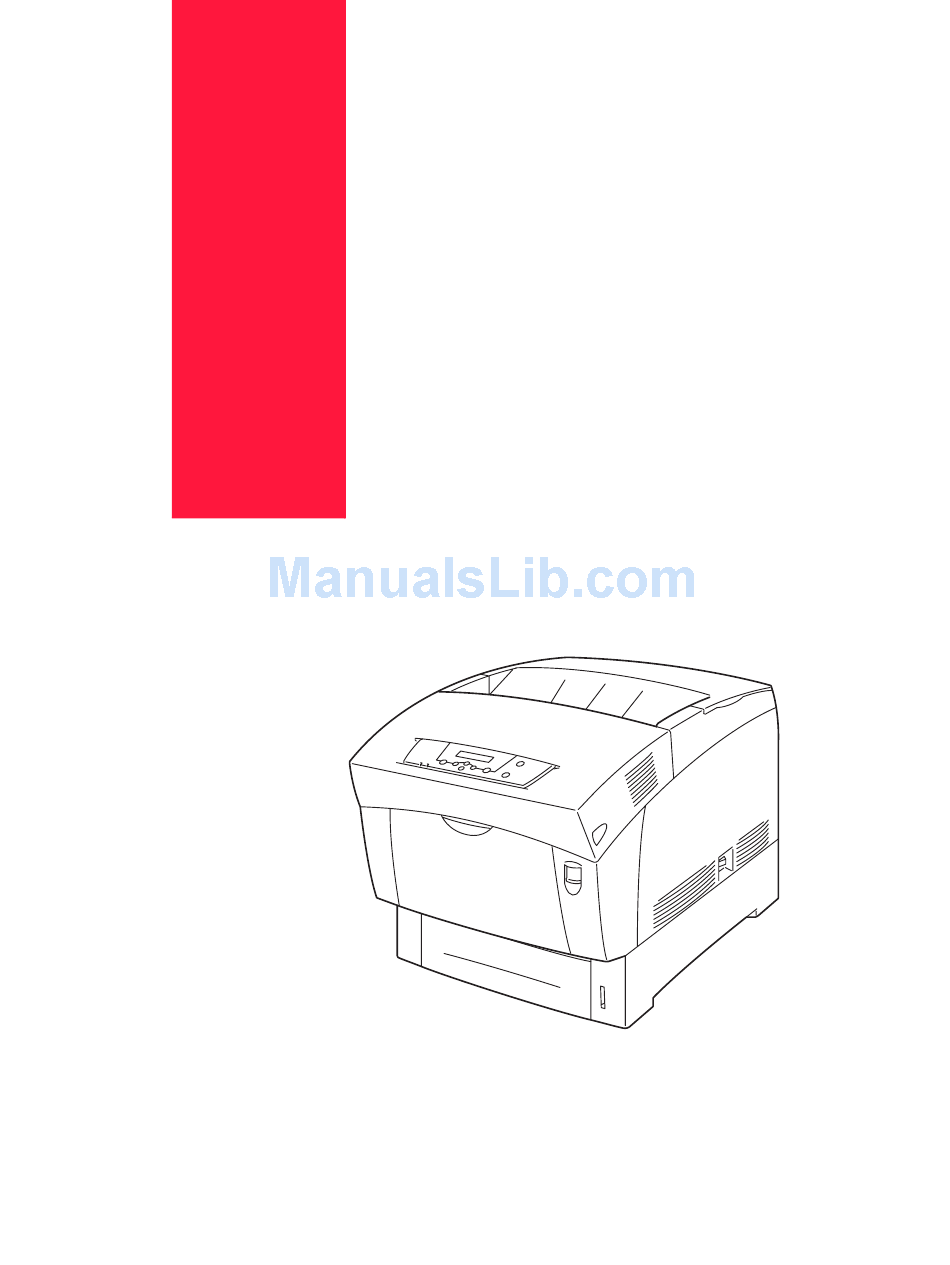

  • Page 1 GENICOM Intelliprint cL160 User Guide Apr 02 Genicom Publication No. GEG-99141...

  • Page 2: Proprietary Statement

    The digitally encoded software included with your Intelliprint cL160 is Copyrighted © 2001by GENICOM LLC. All Rights Reserved. This software may not be reproduced, modified, displayed, transferred, or copied in any form or in any manner or on any media, in whole or in part, without the express written permission of GENICOM LLC. Copyright Notice This manual is Copyrighted ©...

  • Page 3: Table Of Contents

    Printer Orientation 3 About the Printer 3 Features 3 Available Configuration 4 Safety Precautions 4 Conventions 5 Installing and Relocating Your Printer 5 Other Precautions 7 Precautions for Power and Earth Connections 7 Cautions 8 Other Precautions 9 Operating Precautions 9...
  • Page 4 GENICOM Intelliprint cL160 User Guide Chapter 1 Unpacking and Installing the Printer 1-1 Positioning the Printer 1-2 Installation Environment 1-2 Minimum Installation Clearances 1-3 Accessories 1-4 Transporting the Printer 1-7 Removing the packing tape 1-8 Removing the Spacers 1-9 Installing the Drum Cartridge 1-12...
  • Page 5 Consumables 5-1 Consumables Overview 5-2 Toner Cartridges 5-2 Drum Cartridge 5-2 Transfer Roller Cartridge 5-3 Fuser Unit 5-3 Paper Feed Roller 5-4 Toner Cartridges 5-4 Toner Cartridge Handling Precautions 5-4 Apr 02 GENICOM Intelliprint cL160 User Guide Genicom Publication No. GEG-99141...
  • Page 6 GENICOM Intelliprint cL160 User Guide Replacing Toner Cartridges 5-5 Drum Cartridge 5-8 Drum Cartridge Handling Precautions 5-8 Replacing the Drum Cartridge 5-9 Transfer Roller Cartridge 5-13 Transfer Roller Cartridge Handling Precautions 5-13 Replacing the Transfer Roller Cartridge 5-14 Fuser Unit 5-16...
  • Page 7 GENICOM LLC Service A-3 GENICOM LLC Worldwide Offices A-3 GENICOM Part Numbers A-4 Printers A-5 Paper Handling Options A-5 Network Interfaces A-5 Controller Options A-5 User Publications A-5 Consumables A-6 Apr 02 GENICOM Intelliprint cL160 User Guide Genicom Publication No. GEG-99141...
  • Page 8 GENICOM Intelliprint cL160 User Guide Appendix B Safety Notes and Regulatory Compliance B-1 Safety Notes B-2 Regulatory Compliance B-2 Safety Compliance B-2 EMC Compliance B-3 Appendix C Printing Font Summaries C-1 Printing a Font Summary C-2 PostScript Font Summary C-3 PostScript Font Summary (cont’d) C-4...

  • Page 9: Preface

    Preface In this Chapter . . . • “Welcome” on page 2 • “About this Manual” on page 2 • “About the Printer” on page 3 • “Safety Precautions” on page 4 Apr 02 Genicom Publication No. GEG-99141...

  • Page 10: Chapter 6 Options

    About this Manual Welcome Thank you for selecting the Intelliprint cL160 laser printer. This User Guide contains important information about the operation and care of your printer. Please read this manual in its entirety and keep it at hand for later reference.

  • Page 11: Printer Orientation

    Throughout this guide, the four sides of the printer are referred to as front, rear, right, and left. The front of the printer is the side near the control panel, and the rear of the printer is opposite the front. The left and right sides of the printer are defined as the sides to the left and right, respec- tively, of a person who is facing the front of the printer.

  • Page 12: Available Configuration

    Various optional accessories are also available for the printer. Please see GENICOM Part Numbers Safety Precautions To ensure safe operation of your printer, make sure you read this section thoroughly before use. Publication No. GEG-99141 to order optional accessories. Genicom...

  • Page 13: Conventions

    Pay close attention to these sec- tions and read them fully to prevent possible injury. GENICOM will not be responsible for damage that results from improper use of the printer.
  • Page 14 When moving the printer, be sure to unplug the power cord from the outlet. If the printer is moved with the power cord connected, it can cause damage to the cord, which could result in fire or electric shocks.

  • Page 15: Other Precautions

    Three power specifications are listed below. The specifications that apply to your printer depend on its configuration. Connect the power plug only to a properly rated power outlet. Otherwise, it can cause fire or electric shocks. If in doubt, contact your Genicom Customer Support Center.

  • Page 16: Cautions

    Water faucets or pipes whose electrical conductivity is broken by a non-metallic part If the power cord is broken or insulated wires are exposed, ask your Genicom Customer Support Center for a replacement. Using a damaged cord can cause fire or electric shocks.

  • Page 17: Other Precautions

    If you notice any unusual conditions, contact your Genicom Customer Support Center. When the printer is not used over an extended period of time, switch it off and unplug it. If an unused printer is left connected to a power source for a long period, degraded insulation can cause electric shocks, current leakages, or fire.
  • Page 18 Never touch a labeled area found on or near the fuser unit. You can burn yourself. If a sheet of paper is wrapped around the fuser roller, do not try to remove it by yourself to avoid inju- ries or burns. Turn off the printer immediately and contact your Genicom Customer Sup- port Center.

  • Page 19: Notes On Handling Consumables

    GENICOM Intelliprint cL160 User Guide Safety Precautions Notes on Handling Consumables Never throw a toner cartridge into an open flame. It can cause an explosion and injuries. Never throw a transfer roller cartridge into an open flame. It can cause an explosion and injuries.
  • Page 20 If you swallow toner, induce vomiting and consult your physician immediately. • When you remove the transfer roller cartridge from the printer because the waste toner col- lection box is full, do not attempt to empty the waste toner box and reuse the cartridge, as toner may spill inside the printer and cause damage.

  • Page 21: Unpacking And Installing The Printer

    “Selecting a Display Language” on page 1-25 • “Adjusting Color Registration” on page 1-26 • “Installing Printer Drivers and Locating User Documentation” on page 1-26 • “Printing a Configuration Summary” on page 1-27 • “Printing a Test Page” on page 1-29 •...

  • Page 22: Positioning The Printer

    Positioning the Printer About this Chapter This chapter describes how to select an appropriate installation location, what accessories are pro- vided with the printer, and the installation procedures required once you have chosen a location for your printer. Positioning the Printer For safe and convenient printer operation, take time to read the information in this section when deciding where to place your printer.

  • Page 23: Minimum Installation Clearances

    Using tap or well water with ultrasonic water vaporizers disperses impurities into the air. These impurities can accumulate inside the printer and cause print quality to deteriorate. If you install the printer in the same room as an ultrasonic water vaporizer, use only filtered water in the water vapor- izer.

  • Page 24: Accessories

    The standard printer package consists of the following items. Before installing the printer, confirm that all the items listed below are accounted for. NOTE: Keep the box and packaging in case you need to transport the printer over long distances in the future. NOTE:...
  • Page 25 GENICOM Intelliprint cL160 User Guide 1-5 Accessories Drum cartridge Toner cartridges: (Black, Yellow, Magenta, Cyan) Power Cord Apr 02 Publication No. GEG-99141 Genicom...
  • Page 26 GENICOM Intelliprint cL160 User Guide Accessories Tray cover NOTE: The tray cover does not come standard with the printer. User Manual CD-ROM GENICOM Intelliprint CL160 Electronic Library CD-ROM Publication No. GEG-99141 Genicom Apr 02...

  • Page 27: Transporting The Printer

    To lift the printer, face the front and back of the printer and grip the recessed areas at the bot- tom left and right with both hands. Never try to lift the printer by gripping any other areas. Lift- ing the printer by gripping other areas can cause the printer to fall, resulting in injury.

  • Page 28: Removing The Packing Tape

    Removing the packing tape When you first remove the printer from its box, there is packing tape in 8 places to secure the covers during shipping. Refer to the illustrations below and remove all the packing tape from the printer.

  • Page 29: Removing The Spacers

    Remove the spacer before using the printer. Follow the procedure below to remove the spacer from the paper tray. NOTE: Keep the spacer in case you need to transport the printer over long distances in the future. Apr 02 Publication No. GEG-99141...
  • Page 30 1-10 GENICOM Intelliprint cL160 User Guide Transporting the Printer Gently pull out the paper tray until it stops. Hold the tray with both hands, lift the front up slightly and pull it completely out of the printer. NOTE: Place the tray on a flat surface.
  • Page 31 NOTE: Keep the spacer in case you need to transport the printer over long distances in the future. Holding the paper tray with both hands, align it with the opening in the printer and gently insert it. Push the paper tray completely back into the printer.

  • Page 32: Installing The Drum Cartridge

    1-12 GENICOM Intelliprint cL160 User Guide Transporting the Printer Installing the Drum Cartridge Follow the procedure below to install the drum cartridge. Push up button ‘A’ 1 and fully open the front cover 2. Open the paper outlet cover. Publication No. GEG-99141...
  • Page 33 Pull the seals completely out. NOTE: Keep the aluminum package of the drum cartridge in case you need to transport the printer over long distances in the future. Hold the left and right sides of the drum cartridge and remove the protective cover from it.
  • Page 34 1-14 GENICOM Intelliprint cL160 User Guide Transporting the Printer Remove the protective sheet from the drum cartridge as shown in the illustration. NOTE: -Do not touch the transfer roller (black colored part). Make sure nothing touches or scratches the roll surface. Scratches or oil from your hands on the drum deteriorates print quality.

  • Page 35: Installing The Toner Cartridges

    NOTE: -Do not touch the transfer roller. -Lowering the cartridge into the printer without correctly aligning the shafts with the slots can damage the cartridge. -Do not allow the surface of the transfer roller to come into contact with anything.
  • Page 36 1-16 GENICOM Intelliprint cL160 User Guide Transporting the Printer Remove the top cover. Select the new toner cartridge whose color matches the label on the insertion point and remove it from its packaging. Publication No. GEG-99141 Genicom Apr 02...
  • Page 37 Shake the toner cartridge 7 or 8 times as shown in the illustration to distribute the toner evenly. Align the toner cartridge with the corresponding insertion point in the printer and insert it as shown in the illustration. Grip the levers at each end of the toner cartridge with your fingers, then push down lightly to rotate the levers forward.
  • Page 38 1-18 GENICOM Intelliprint cL160 User Guide Transporting the Printer Pull the toner seal straight up to remove it. NOTE: Pull the toner seal straight up. Pulling the toner seal diagonally may tear the seal. Repeat steps 2 - 6 Replace the top cover.

  • Page 39: Loading Paper

    Pull the paper tray out until it stops. Apr 02 GENICOM Intelliprint cL160 User Guide 1-19 Transporting the Printer for information about the types of paper suitable for printing. for more details on setting paper in Genicom Publication No.
  • Page 40 1-20 GENICOM Intelliprint cL160 User Guide Transporting the Printer Hold the tray with both hands lift up the front slightly and remove it from the printer. NOTE: Place the tray on a flat surface. Move the end and side paper guides to their outermost positions. Gently lift the end paper guide to move it.
  • Page 41 NOTE: Pushing the paper guides too hard against the edges of the paper stack can cause a paper jam. However, if the paper guide is too loose, the paper may twist as it feeds through the printer. Apr 02 GENICOM Intelliprint cL160 User Guide 1-21...
  • Page 42 1-22 GENICOM Intelliprint cL160 User Guide Transporting the Printer Hold the paper tray with both hands, align it with the opening in the printer and gently insert it. Push the paper tray completely back into the printer. NOTE: Do not use excessive force on the paper tray.

  • Page 43: Installing The Tray Cover

    NOTE: The tray cover does not come standard with the printer. Clip the hooks on the tray cover onto the 2 tabs at the back of the printer as illustrated. Connecting the Power Cord Follow the procedure below to connect the power cord.

  • Page 44: Turning The Printer On

    AC outlet. Connect the earth connection to the ground, if possible. Turning the Printer On On the printer’s right side, press the side of the power switch marked [ I ] to turn the printer on. NOTE: The printer motors run for 1 or 2 minutes when you first turn the power on.

  • Page 45: Selecting A Display Language

    Press NEXT or PREVIOUS until the desired default language appears on the bottom line of the display: Press SELECT. You have now changed the default language. Apr 02 GENICOM Intelliprint cL160 User Guide 1-25 Selecting a Display Language Menu Paper...

  • Page 46: Adjusting Color Registration

    GENICOM Intelliprint cL160 User Guide Adjusting Color Registration Adjusting Color Registration Follow the procedure below to adjust the color registration when first installing the printer or after moving it to a new location. Use the control panel to print the color registration adjustment chart.

  • Page 47: Installing Printer Drivers For Macos

    Refer to the README.TXT file included in this folder for more information. UnixSW Folder The UnixSW folder contains Genicom UNIX Printing Software, which is an enhanced print filter and network socket driver that allows you to take advantage of all of the printing fea- tures of your printer.
  • Page 48 1-28 GENICOM Intelliprint cL160 User Guide Printing a Configuration Summary Press PREVIOUS or NEXT until the display reads: Press SELECT, the display will read: Press NEXT or PREVIOUS until the display reads: Press SELECT. A two page Configuration Summary will print. An example of a Configura- tion Summary appears on the following page.

  • Page 49: Printing A Test Page

    Printing a Test Page Your printer can print a test page that lists the indicates, grey scale, resolution settings, page counter, and other relevant information about your printer. To print a Test Page, follow these steps: From the Ready status, press MENU, the control panel display will read:...

  • Page 50: Printing Pcl And Postscript Font Lists

    Sample to be provided. Printing PCL and PostScript Font Lists Your printer has the capability of printing lists of all installed PCL or PostScript fonts. To print a Font List, follow these steps: From the Ready status, press MENU, the control panel display will read:...

  • Page 51: Turning The Printer Off

    Press SELECT. A multi page resident Font List will print. Examples of a PCL and PostScript Font Lists appears in Appendix C of the Intelliprint cL160 User’s Guide located on the COM Intelliprint CL160 Electronic Turning the Printer Off Remember to turn off the printer at the end of day or when the printer will not be used for an extended period of time.
  • Page 52 1-32 GENICOM Intelliprint cL160 User Guide Turning the Printer Off Publication No. GEG-99141 Apr 02 Genicom...

  • Page 53: Chapter 2 Maintenance

    Maintenance In this Chapter . . . • “About this Chapter” on page 2-2 • “Names and Functions of the Printer’s Parts” on page 2-2 • “Paper Handling” on page 2-6 • “Loading Paper” on page 2-11 • “Cleaning” on page 2-21 •...

  • Page 54: About This Chapter

    This chapter explains any neccessary maintenance procedures, such as feeding paper, cleaning, and other procedures required for normal operation. Names and Functions of the Printer’s Parts The names and functions of the various parts of the printer are as follows: Front View Name...

  • Page 55: Operation Panel

    GENICOM Intelliprint cL160 User Guide 2-3 Names and Functions of the Printer’s Parts Operation Panel Display READY POWER START/STOP POWER SAVER NEXT CANCEL MENU STATUS RETURN SELECT ACTIVE FAULT PREVIOUS Buttons Indicators Apr 02 Publication No. GEG-99141 Genicom...

  • Page 56: Rear View

    The black, yellow, magenta, and cyan toner cartridges are inserted here. Acts as the top cover and the face down tray of the printer. Remove it to change the toner cartridges. Printed documents are output here, printed side down. Do not operate the printer without the Top Cover.

  • Page 57: Internal View

    Paper Outlet Cover Paper Rotator Fuser Unit Apr 02 GENICOM Intelliprint cL160 User Guide 2-5 Names and Functions of the Printer’s Parts < Cover open with button B > Description Transfers the image created on the drum surface to the paper, and collects used toner.

  • Page 58: Paper Handling

    Your printer can print on a variety of media, including plain paper, labels, transparencies, and enve- lopes. Always use print media that meet the guidelines for use with this printer. Print media that is not recommended for use with this printer may cause frequent paper jams or poor print quality.

  • Page 59: Print Media Weight, Type, And Size

    Do not use label stock or other special media in the 500 sheet paper tray. Front Tray Apr 02 GENICOM Intelliprint cL160 User Guide 2-7 Selecting Print Media Meter Weight Paper Type and Feed Direction 60 to 216g/m Any paper...

  • Page 60: Suitable Paper Types

    GENICOM Intelliprint cL160 User Guide Selecting Print Media Suitable Paper Types Paper Trays, Types, and Sizes You can load the following types of paper into the paper tray or multi purpose tray. Feeding Method Multi Purpose Tray Standard paper tray...

  • Page 61: Unsuitable Paper Types

    The illustrations below provide a description of ‘width,’ ‘length,’ ‘portrait’ and ‘landscape,’ mentioned in the tables above. Unsuitable Paper types Avoid using the following paper types as they can cause paper jams or damage to the printer. • Transparency sheets other than those recommended.

  • Page 62: Storing Paper

    2-10 GENICOM Intelliprint cL160 User Guide Selecting Print Media • Paper with a rough surface such as textured or fiber form paper • Using acidic paper can cause the characters to fade over time. Use neutral paper to prevent this problem.

  • Page 63: Loading Paper In The Paper Tray

    Load paper into the optional High Capacity Feeder (2 shelves) the same way. Gently pull out the paper tray until it stops. Hold the tray with both hands, lift the front slightly and pull it completely out of the printer. NOTE: Place the tray on a flat surface.
  • Page 64 2-12 GENICOM Intelliprint cL160 User Guide Selecting Print Media Move the end and side paper guides to their outermost positions. Gently lift the end paper guide to move it. NOTE: You do not need to move the paper guides if you are refilling the tray with paper of the same size.
  • Page 65 Do not use paper that is folded, creased, or heavily warped. Do not overload the paper tray. Align the side guides with the edges of the paper. Apr 02 GENICOM Intelliprint cL160 User Guide 2-13 Selecting Print Media Genicom Publication No. GEG-99141...
  • Page 66 Pushing the paper guides too hard against the edges of the paper stack can cause a paper jam. However, if the paper guides are too loose, the paper may twist as it feeds through the printer. Hold the paper tray with both hands, align it with the opening in the printer and gently insert it.

  • Page 67: Loading Paper In The Multi Purpose Tray

    To avoid damage to the tray, do not use excessive force or place heavy objects on the tray. Align the paper guide with the mark of the desired paper size. Apr 02 GENICOM Intelliprint cL160 User Guide 2-15 Selecting Print Media Genicom...
  • Page 68 2-16 GENICOM Intelliprint cL160 User Guide Selecting Print Media NOTE: When printing on long paper, pull out the tray extension. Printing long paper with the tray extension retracted can cause the paper to fall out or make feeding impossible. When using media such as transparency sheets, label sheets, or envelopes, fan the stack before loading so that there is air between the sheets.

  • Page 69: Loading Transparency Sheets In The Multi Purpose Tray

    Remove each transparency sheet from the face down tray as soon as it is ejected. If transparency sheets are allowed to accumulate in the face down tray, static electricity can build up and cause a jam. Apr 02 GENICOM Intelliprint cL160 User Guide 2-17 Selecting Print Media Genicom Publication No. GEG-99141...

  • Page 70: Genicom Intelliprint Cl160 User Guide

    Insert the transparency sheets into the multi purpose tray until they lightly touch the feeding slot. NOTE: Do not use full color transparency sheets. They can jam in the printer and damage the fuser unit. Loading Postcards in the Multi Purpose Tray Feed postcards from the multi purpose tray.

  • Page 71: Loading Envelopes In The Multi Purpose Tray

    (88.9 mm wide and 139.7 mm long). Load the envelopes with the flap pointing outward. Using poor quality envelopes can cause creasing and deteriorate print quality. Apr 02 GENICOM Intelliprint cL160 User Guide 2-19 Selecting Print Media Genicom Publication No. GEG-99141...
  • Page 72 2-20 GENICOM Intelliprint cL160 User Guide Selecting Print Media Publication No. GEG-99141 Larger than 5.5 in (139.7 Larger than 3.5 in (88.9 Genicom Apr 02...
  • Page 73 Cleaning Use a soft, damp, well-wrung cloth to clean the outside of the printer. Wipe any remaining water with a soft dry cloth. If some stains prove difficult to remove, use a cloth moistened with a mild neutral detergent.We recommend that you clean the printer at least once a month to keep it in good working condition and to maintain print quality.

  • Page 74: Storing The Printer

    Follow the procedure below when you do not need to use the printer for a long period. On the right side of the printer, press [O] on the power switch to turn off the printer. Disconnect the power cord, interface cable, and any other cables.
  • Page 75 Remove any remaining paper from the paper tray and store it in a dry, dust-free place. NOTE: If the paper proves difficult to remove, pull the tray completely out of the printer and try removing the paper again. Apr 02 Publication No.
  • Page 76 To lift the printer, face the front and back of the printer and grip the recessed areas at the bot- tom left and right with both hands. Never try to lift the printer by gripping any other areas. Lift- ing the printer by gripping other areas can cause the printer to fall, resulting in injury.
  • Page 77 On the right side of the printer, press [O] on the power switch to turn off the printer. Disconnect the power cord, interface cable, and any other cables. WARNING: To prevent electric shock, never touch the power plug with wet hands.
  • Page 78 2-26 GENICOM Intelliprint cL160 User Guide Selecting Print Media Gently pull out the paper tray until it stops. Hold the tray with both hands, lift the front up slightly and pull it completely out of the printer. Remove the paper from the paper tray, and store it in a dry, dust-free place.
  • Page 79 Insert the cardboard spacer in the tray as illustrated on the left. Hold the paper tray with both hands, align it with the opening in the printer and gently insert it. Push the paper tray completely back into the printer.
  • Page 80 2-28 GENICOM Intelliprint cL160 User Guide Selecting Print Media Remove the tray cover. Push up button ‘A’ 1 and fully open the front cover 2. Open the paper outlet cover. Publication No. GEG-99141 Genicom Apr 02...
  • Page 81 Grip the drum cartridge handle and gently lift it out of the printer. NOTE: Do not touch the transfer roller (black colored part). Hold the drum cartridge by the handle on top of the cartridge to prevent the cartridge from falling.
  • Page 82 Close the front cover. To protect the printer from damage, pack it in a box before transporting it. NOTE: After moving the printer to the new location, you need to readjust the color registration. For details, refer to Publication No. GEG-99141 ““...

  • Page 83: Dealing With Problems

    In this Chapter . . . • “About this Chapter” on page 3-2 • “Troubleshooting” on page 3-2 • “Solving Printer Power-on Problems” on page 3-11 • “Control Panel LCD Messages” on page 3-12 • “Ethernet Network Interface Troubleshooting” on page 3-13 Apr 02 Genicom Publication No.

  • Page 84: Troubleshooting

    Troubleshooting When your printer suffers from a problem, refer to one of the four categories below to determine the cause of your problem, and the action needed to rectify it.

  • Page 85: Print Quality Problems

    GENICOM Intelliprint cL160 User Guide 3-3 Action Turn off the unit, disconnect the power cord from the AC outlet, and contact your Genicom dealer or a Genicom Customer Service Center for assistance. Turn off the unit, confirm that the power cord is properly connected to the AC outlet, and turn the unit back on.
  • Page 86 See “Paper Handling“ on page Replace the drum cartridge. See “Drum Cartridge“ on page Contact your Genicom dealer or a Genicom Customer Service Center for assistance. Remove the paper stack from the tray, fan it, and reinsert it.
  • Page 87 Color around the edge of The color registration is incorrect. printing is incorrect Apr 02 GENICOM Intelliprint cL160 User Guide 3-5 Action Replace the paper. Replace the paper with a recommend size and type, and confirm that your printer driver settings are correct.
  • Page 88 GENICOM Intelliprint cL160 User Guide Troubleshooting Description Cause Partial blanks, creased paper The paper is damp. or blotted printing The paper is outside the recommended specification range. The transfer roller or fuser unit is not installed correctly. Publication No. GEG-99141 Action Replace the paper.

  • Page 89: Paper Transport Problems

    The paper is damp. There is paper jammed in the printer. The printer is not level. Apr 02 GENICOM Intelliprint cL160 User Guide 3-7 Action Reinstall the drum cartridge. See “Drum Cartridge“ on page Check the condition of the drum cartridge, transfer roller and fuser unit, and replace as necessary.

  • Page 90: Other Problems

    There is a foreign object inside the printer. Cleaning the Density Sensor When the printer’s density sensor dirty, follow the procedure below to clean it. Push the [O] mark on the power switch to turn off the printer. Publication No. GEG-99141 Action Reposition the printer on a flat, stable surface.
  • Page 91 Push up button ‘A’ Grip the tabs at both ends of the transfer roller and gently lift it out of the printer. NOTE: Lift the roller carefully to prevent waste toner from spilling out. Gently wipe the density sensor window with a clean dry cloth or cotton swab.
  • Page 92 Insert the pins at both ends of the transfer roller cartridge into the u-shaped bearings inside the printer. To lock the transfer roller cartridge into the printer, push down on the base of the tabs until you hear a click.

  • Page 93: Solving Printer Power-On Problems

    WARNING: Before cleaning the printer or performing any other maintenance, be sure to turn the printer off [ O ], and disconnect the power cord from the AC outlet to prevent the risk of electric shock.

  • Page 94: Control Panel Lcd Messages

    3-12 GENICOM Intelliprint cL160 User Guide Control Panel LCD Messages Control Panel LCD Messages LCD MESSAGE (LINE 1) TONER Y MISSING TONER M MISSING TONER C MISSING TONER K MISSING PHD MISSING BTR MISSING FUSER MISSING BAD PHD TYPE MEDIA MISMATCH...

  • Page 95: Ethernet Network Interface Troubleshooting

    These errors are only treated as faults when there is no alternative action to take. Your printer may be configured so that the problem is easily avoided. When the problem cannot be avoided, the described faults will be displayed.

  • Page 96: Power-Up Troubleshooting

    3-14 GENICOM Intelliprint cL160 User Guide Ethernet Network Interface Troubleshooting Power-Up Troubleshooting There are several possible error situations if the unit does not display the welcome message or the LEDs do not flash: Message Power-up diagnostic failure (hardware failure) The network interface boots but does...

  • Page 97: Printing Problems

    The network interface and host are in the same IP network Apr 02 GENICOM Intelliprint cL160 User Guide 3-15 Ethernet Network Interface Troubleshooting Explanation To test a non-PostScript printer use the Test Port 1 Count 100 command. This command will send 100 lines of test data to the printer.

  • Page 98: Dhcp Troubleshooting

    3-16 GENICOM Intelliprint cL160 User Guide Ethernet Network Interface Troubleshooting DHCP Troubleshooting Area to Check DHCP is enabled on the network interface. Make sure the DHCP server is operational. Did the network interface get its IP address from the DHCP server?

  • Page 99: Bitmap Graphics

    Status of the unit when the problem occurred (please try to include information on user and network activity at the time of the problem). Apr 02 GENICOM Intelliprint cL160 User Guide 3-17 Ethernet Network Interface Troubleshooting Explanation Issue the Show Service Characteristics command. If the service rating is zero, the parallel port is in use.
  • Page 100 3-18 GENICOM Intelliprint cL160 User Guide Ethernet Network Interface Troubleshooting Publication No. GEG-99141 Apr 02 Genicom...

  • Page 101: Chapter 4 Paper Jams

    Paper Jams In this Chapter . . . • “About this Chapter” on page 4-2 • “Clearing Paper Jams” on page 4-2 Apr 02 Genicom Publication No. GEG-99141...

  • Page 102: About This Chapter

    If paper is difficult to remove, turn off the power and con- tact your Genicom dealer or a Genicom Customer Service Center for assistance. To prevent burns, never touch the area marked “CAUTION! HOT!” (fuser area).

  • Page 103: Paper Jams In The Multi Purpose Tray

    CAUTION: If smoke comes out of the printer when a paper jam occurs, do not open the printer covers. Turn off the power, remove the power cord from the AC outlet, and contact your Genicom dealer or a Genicom Customer Service Center for assistance.

  • Page 104: Paper Jams In The Paper Tray

    GENICOM Intelliprint cL160 User Guide Clearing Paper Jams Pull the jammed paper out of the multi purpose tray. Push up button ‘A’ paper remaining inside the printer. Close the front cover. Paper Jams in the Paper Tray Follow the procedure below to remove paper jammed in the paper tray.
  • Page 105 Remove all the jammed and/or creased paper from the tray. If there is jammed paper remaining inside the printer, pull it out carefully to avoid tearing it. Apr 02 GENICOM Intelliprint cL160 User Guide 4-5 Clearing Paper Jams Genicom Publication No. GEG-99141...
  • Page 106 Push up button ‘A’ paper remaining inside the printer. Close the front cover. Hold the paper tray with both hands, align it with the opening in the printer and gently insert it. Push the paper tray completely back into the printer.

  • Page 107: Paper Jams Between The Drum Cartridge And Fuser Unit

    Follow the procedure below to remove paper jammed around the drum cartridge. Push up button ‘A’ Remove the jammed paper. If the paper is torn, remove any scraps of paper remaining inside the printer. Close the front cover. Apr 02...
  • Page 108 GENICOM Intelliprint cL160 User Guide Clearing Paper Jams Paper jams in the fuser unit: Follow the procedure below to remove paper jammed in the fuser unit. Press button ‘B’ Lift the levers at both ends of the fuser unit, and remove the jammed paper. If the paper is torn, remove any scraps of paper remaining inside the printer.

  • Page 109: Paper Jams In The Paper Rotator

    If the front cover is difficult to open, do not force it. Turn off the printer immediately and contact your Geni- com dealer or Genicom Customer Service Center for assistance.

  • Page 110: Paper Jams In The High Capacity Feeder (2 Shelves)

    Clearing Paper Jams Press button ‘B’ Remove the jammed paper. If the paper is torn, remove any scraps of paper remaining inside the printer. Close the front cover. Paper Jams in the High Capacity Feeder (2 shelves) Follow the procedure below to remove paper jammed in the High Capacity Feeder.
  • Page 111 NOTE: Paper in the High Capacity Feeder feeds to the printer from the front of the trays, therefore paper jammed in the lower tray can block the upper tray of the module or the paper tray in the printer, preventing you from opening them. Look for the jammed paper sequentially, starting with the lowest tray.
  • Page 112 4-12 GENICOM Intelliprint cL160 User Guide Clearing Paper Jams Close the front cover. Close all open paper trays. Publication No. GEG-99141 Genicom Apr 02...

  • Page 113: Chapter 5 Consumables

    “Consumables Overview“ on page 5-2 • “Toner Cartridges“ on page 5-4 • “Drum Cartridge“ on page 5-8 • “Transfer Roller Cartridge“ on page 5-13 • “Fuser Unit“ on page 5-16 • “Paper Feed Roller“ on page 5-21 Apr 02 Genicom Publication No. GEG-99141...

  • Page 114: Consumables Overview

    This chapter provides information about the expendables used with the printer, and also describes handling and replacement procedures. Consumables Overview The following consumables are provided with the printer. For replacements, contact your Genicom dealer. Toner Cartridges The printer uses four toner cartridges: black, yellow magenta, and cyan. When the toner supply in a cartridge begins to run out, an error message appears.

  • Page 115: Transfer Roller Cartridge

    Replace the transfer roller cartridge as soon as the message prompting you to do so appears. The printer stops operating if you do not replace the transfer roller cartridge when required.

  • Page 116: Paper Feed Roller

    Toner Cartridges Paper Feed Roller The paper feed roller feeds paper from the paper tray into the printer. Usually, the paper feed roller needs to be replaced after printing about 100,000 sheets. However, this figure varies depending on the size and type of paper used. When the paper feed roller deteriorates, paper may not feed cor- rectly from the paper tray, resulting in paper jams.

  • Page 117: Replacing Toner Cartridges

    • Only use toner cartridges recommended by Genicom. Using toner cartridges that are not rec- ommended may result in lower print quality and unsatisfactory printer performance. • Wrap used toner cartridges in plastic bags and dispose of them as non-burnable waste.
  • Page 118 GENICOM Intelliprint cL160 User Guide Toner Cartridges Grip the levers at the ends of the toner cartridge that you want to replace and pull them up. Pull out the toner cartridge. NOTE: Put the toner cartridge on a piece of paper to prevent toner from staining the floor or furniture.
  • Page 119 Shake the toner cartridge 7 or 8 times as illustrated to distribute the toner evenly. Align the toner cartridge with the corresponding insertion point in the printer and insert it as illustrated. Grip the levers at each end of the toner cartridge with your fingers and them push down lightly to rotate the levers forward.

  • Page 120: Drum Cartridge

    30,000 Letter/A4 sheets (continuous portrait, at the default print density with 5% color coverage) with a 1:1 color/monochrome ratio. CAUTION: To prevent electric shock, always turn off the printer and disconnect the power cord from the AC outlet before cleaning the printer or performing maintenance.

  • Page 121: Replacing The Drum Cartridge

    • Avoid removing the drum cartridge from the printer before it is time to replace it. Removing and replacing the drum cartridge can cause dirt to stick to the cartridge and deteriorate print quality.
  • Page 122 GENICOM Intelliprint cL160 User Guide Drum Cartridge Push up button ‘A’ Open the paper outlet cover. Grip the handle on top of the drum cartridge and gently lift it out of the printer. Publication No. GEG-99141 and fully open the front cover Genicom...
  • Page 123 Pull the seals completely out. NOTE: Keep the aluminum package of the drum cartridge in case you need to transport the printer over long distances in the future. Hold the left and right sides of the drum cartridge and remove the protective cover from it.
  • Page 124 NOTE: Do not touch the transfer roller. Lowering the cartridge into the printer without correctly aligning the shafts with the slots can damage the cartridge. Do not allow the surface of the transfer roller to come into contact with anything.

  • Page 125: Transfer Roller Cartridge

    Avoid removing the transfer roller cartridge before it is time to replace it. • Replace the transfer roller as soon as the message prompting you to do so appears. The printer stops operating if you do not replace the transfer roller cartridge when required.

  • Page 126: Replacing The Transfer Roller Cartridge

    • Do not remove the transfer roller from the printer before it is time to replace it, as toner may spill inside the printer and cause damage. Replacing the Transfer Roller Cartridge Follow the procedure below to replace the transfer roller cartridge.
  • Page 127 Unpack a new transfer roller cartridge and insert the stubs on both ends of the transfer roller cartridge into the u-shaped guides inside the printer. To lock the transfer roller cartridge into the printer, push down on the base of the tabs until you hear a click.

  • Page 128: Fuser Unit

    If paper proves difficult to remove, turn off the printer and contact your Genicom dealer or a Genicom Customer Service Center for assistance.
  • Page 129 Push up button ‘A’ Open the paper outlet cover. Apr 02 GENICOM Intelliprint cL160 User Guide 5-17 and fully open the front cover Genicom Fuser Unit Publication No. GEG-99141...
  • Page 130 5-18 GENICOM Intelliprint cL160 User Guide Fuser Unit Close the front cover. Press button ‘B’ Move the slide switches at both ends of the fuser unit forward. Publication No. GEG-99141 and open the upper part of the front cover Genicom...
  • Page 131 Lift up the levers at both ends of the fuser unit. Grip the levers and gently lift the fuser unit out of the printer. Unpack a new fuser unit, lift up the levers at both ends align it with the slots in the printer, and slowly push it in...
  • Page 132 5-20 GENICOM Intelliprint cL160 User Guide Fuser Unit Completely push down the levers at both ends of the fuser unit. Move the slide switches at both ends of the fuser unit all the way to the back. Close the paper outlet cover.

  • Page 133: Paper Feed Roller

    Paper Feed Roller This section describes the procedure for replacing the paper feed roller. CAUTION: To prevent electric shock, always turn off the printer and disconnect the power cord from the AC outlet before cleaning the printer or performing maintenance procedures.
  • Page 134 Pull the paper tray out of the printer until it stops. Hold the tray with both hands, lift the front slightly, and remove it from the printer. Push the tabs of the paper feed roller cover to open the cover.
  • Page 135 Align the new paper feed roller axis with the shaft in the paper tray as illustrated and slide the shaft through the roller until the clip locks into the groove at the end of the shaft. Apr 02 GENICOM Intelliprint cL160 User Guide 5-23 Paper Feed Roller Genicom...
  • Page 136 GENICOM Intelliprint cL160 User Guide Paper Feed Roller Close the paper feed roller cover. Hold the paper tray with both hands, align it with the opening in the printer and gently insert it. Push the paper tray completely back into the printer.
  • Page 137 GENICOM Intelliprint cL160 User Guide 5-25 Paper Feed Roller NOTE: Do not use excessive force on the paper tray. Apr 02 Publication No. GEG-99141 Genicom...
  • Page 138 5-26 GENICOM Intelliprint cL160 User Guide Paper Feed Roller Publication No. GEG-99141 Apr 02 Genicom...

  • Page 139: Options

    Options In this Chapter . . . • “About this Chapter” on page 6-2 • “Options Overview” on page 6-2 • “High Capacity Feeder (2 Shelves)” on page 6-2 Apr 02 Genicom Publication No. GEG-99141...

  • Page 140: Options Overview

    This chapter describes any available options and the procedures for their installation and removal. Options Overview The following optional accessories are available with this printer. To order any of the options, con- tact your Genicom dealer. High Capacity Feeder (2 Shelves) This option allows you to attach an additional 2 trays to the printer.

  • Page 141: Installing The High Capacity Feeder (2 Shelves)

    Installing the High Capacity Feeder (2 shelves) Follow the procedure below to install the High Capacity Feeder (2 shelves). CAUTION: To prevent electric shock, turn off the printer before connecting optional acces- sories or interface cables. The High Capacity Feeder (2 shelves) weighs 40 lbs. (18.5 kg). Make sure that 2 people carry it.
  • Page 142 Remove the tape from the cardboard spacer in the tray and remove the spacer. NOTE: Keep the spacer in case you need to transport the printer over long distances in the future. Remove the lower tray from the High Capacity Feeder and remove the cardboard spacer from the tray as explained in steps Publication No.
  • Page 143 To lift the printer, face the front and back of the printer and grip the recessed areas at the bottom left and right with both hands. Never try to lift the printer by gripping any other areas.
  • Page 144 GENICOM Intelliprint cL160 User Guide High Capacity Feeder (2 Shelves) NOTE: Be careful not to pinch your fingers when lowering the printer onto the High Capacity Feeder (2 shelves). Pull the printer’s paper tray out until it stops. Hold the tray with both hands, lift the front slightly and remove it from the printer.
  • Page 145 Insert the 4 screws provided into the 4 holes inside the printer and tighten them with a coin to secure the printer to the High Capacity Feeder (2 shelves). NOTE: Make sure the screws are firmly tightened. Install the tray covers provided with the High Capacity Feeder (2 shelves).
  • Page 146 Insert the High Capacity Feeder’s lower paper tray in to the High Capacity Feeder (2 shelves). Push the paper tray until it stops. NOTE: Do not use excessive force on the paper tray. Replace the High Capacity Feeder’s upper paper tray and the printer’s paper tray in the same manner. Publication No. GEG-99141 Genicom...

  • Page 147: Removing The High Capacity Feeder (2 Shelves)

    Bend your knees to avoid back injury when lifting the High Capacity Feeder (2 shelves). Pull the printer’s paper tray out until it stops. Hold the tray with both hands, lift the front slightly and remove it from the printer. Apr 02...
  • Page 148 High Capacity Feeder (2 Shelves) Remove the tray cover from the printer. Using a coin, remove the 4 screws inside the printer. Hold the paper tray with both hands, align it with the opening in the printer and gently insert it. Publication No. GEG-99141...
  • Page 149 NOTE: Do not use excessive force on the paper tray. Replace the printer’s tray cover. Gently lift the printer off the High Capacity Feeder, and place it on a level surface. Apr 02 GENICOM Intelliprint cL160 User Guide 6-11 High Capacity Feeder (2 Shelves) Genicom Publication No.
  • Page 150 To lift the printer, face the front and back of the printer and grip the recessed areas at the bottom left and right with both hands. Never try to lift the printer by gripping any other areas.

  • Page 151: Understanding And Navigating The Control Panel Menus

    “PS Menu” on page 7-12 “PCL Menu” on page 7-14 “System Menu” on page 7-17 “Quality Menu” on page 7-19 “Color Menu” on page 7-19 “Functions Menu” on page 7-23 “Status Menu” on page 7-25 Apr 02 Genicom Publication No. GEG-99141...

  • Page 152: Control Panel Features

    Control Panel Features About this Chapter This chapter explains the control panel and its functions, and also demonstrates how to navigate through the control panel menus and submenus that allow you to view and change the printer set- tings. Control Panel Features The control panel is located on the front of the printer, and contains the display, indicators, and pushbuttons that allow you to view and change the printer settings.

  • Page 153: Led Indicators

    LED Indicators The LED indicators also indicate printer status. The four indicators can each be on, off, or blink- ing, indicating different phases of printer operation. The table below explains the LED indicators. READY ACTIVE FAULT POWER Pushbuttons The control panel pushbuttons allow you to access and navigate menus, and also assist you in recovering from printer errors.
  • Page 154 GENICOM Intelliprint cL160 User Guide Control Panel Features PUSHBUTTON NEXT—Push this button to move to the next menu, submenu, or setting within NEXT the same level of the menu structure. SELECT—Push this button to select the menu or submenu that is shown on the second line of the display or to choose and save the setting shown on the second line of the display.

  • Page 155: Navigating The Control Panel Menus

    Navigating the Control Panel Menus When you press the MENU button on the control panel, you enter the printer’s menu system. At that point, the first line of the display contains the text “Menu”, indicating that you are in the menu system.
  • Page 156 GENICOM Intelliprint cL160 User Guide Navigating the Control Panel Menus The following figure shows the sequence of pushbuttons and display messages that would allow you to change the number of copies printed. This example illustrates the basic relationship between menus and submenus and demonstrates how the NEXT, PREVIOUS, SELECT, and RETURN buttons help you to navigate through the menus.

  • Page 157: Menu Structure

    Network Frame Delay Out Close Color Menu Functions Screening Mode Color Rendering Color Mgmt. Figure 7-3: Printer Menu Structure. Genicom GENICOM Intelliprint cL160 User Guide 7-7 Menu Structure PCL Menu Orientation Font Source Font Number Pitch Symbol Set Macro Filter...

  • Page 158: Paper Menu

    GENICOM Intelliprint cL160 User Guide Paper Menu NOTE: Additional menus and submenus may appear in the printer menu system when other options are installed. Paper Menu The Paper Menu provides access to the printer settings for various paper-handling functions. Use the following procedure to enter the paper menu: Press the MENU button on the control panel.
  • Page 159 The printer prints at half speed in this mode. Apr 02 GENICOM Intelliprint cL160 User Guide 7-9 Available Settings Procedure for Changing Setting Size Type 1. Press NEXT or PREVIOUS to scroll...

  • Page 160: Interface Menu

    Press the SELECT button to enter the interface menu. Press the NEXT button to move through the submenus: Port, Parallel Setup, and Network Setup. Use the procedures in the following table to access and change the printer interface settings: Submenus Default...
  • Page 161 Format: Mode: Bidirectional Delay Out Close: Apr 02 GENICOM Intelliprint cL160 User Guide 7-11 Available Procedure for Changing Setting Settings Interpreter: 1. Press NEXT or PREVIOUS to scroll through the Auto Switch INTERPRETER, FORMAT, MODE, and DELAY OUT CLOSE submenus.

  • Page 162: Ps Menu

    7-12 GENICOM Intelliprint cL160 User Guide PS Menu Submenus Default Setting Network 1 Setup Interpreter: This submenu allows you Auto Switch to set up the Network interface. Format: Network Channel: Netware Network Address: IP Address: (user-specified) Subnet Mask: (user-specified) Default...
  • Page 163 A setting of 0 will cause printer to wait indefinitely for a manual feed. Apr 02 GENICOM Intelliprint cL160 User Guide 7-13 Available Settings Procedure for Changing Settings 1. Press NEXT or PREVIOUS to toggle between ON (print) and OFF (do not print).

  • Page 164: Pcl Menu

    7-14 GENICOM Intelliprint cL160 User Guide PCL Menu PCL Menu The PCL Menu provides access to the PCL settings. Use the following procedure to enter the PCL menu: Press the MENU button on the control panel. Press the NEXT button until the text “PCL Menu” is shown on the second line of the display.
  • Page 165 Apr 02 GENICOM Intelliprint cL160 User Guide 7-15 Available Settings 5 - 128 CR = CR CR = CR/LF LF = LF LF = CR/LF...
  • Page 166 7-16 GENICOM Intelliprint cL160 User Guide PCL Menu Submenus Default Setting Print Area Normal This submenu allows you to set the print area. Parameter Values Paper Source: Paper Size: Executive Publication No. GEG-99141 Available Settings Normal Expanded Paper Source: Paper Size:...

  • Page 167: System Menu

    This setting applies to both PCL and PostScript print jobs. Apr 02 GENICOM Intelliprint cL160 User Guide 7-17 Default Setting Available Settings U.S. U.S. Non-U.S.
  • Page 168 7-18 GENICOM Intelliprint cL160 User Guide System Menu Submenus Job Timeout This submenu allows you to increase or decrease the time limit (in seconds) for PostScript jobs. A 0 setting indicates no timeout. This setting applies only to PostScript jobs.

  • Page 169: Quality Menu

    Quality Menu The Quality Menu provides access to the printer settings that are related to print quality. Use the following procedure to enter the Quality Menu: Press the MENU button on the control panel. Press the NEXT button until the text “Quality Menu” is shown on the second line of the display.
  • Page 170 7-20 GENICOM Intelliprint cL160 User Guide Color Menu Use the procedures in the following table to access and change the system settings: Submenus Screening Mode The screening mode setting determines the method used to produce the various tones to be printed.
  • Page 171 Depending on the type of printing you do, this setting should be set to an appropriate value Apr 02 GENICOM Intelliprint cL160 User Guide 7-21 Default Setting Available Settings Photographic Photographic: This setting will print the most realistic photographic images.
  • Page 172 7-22 GENICOM Intelliprint cL160 User Guide Color Menu Submenus Color Management This submenu allows you to enable automatic color correction when printer color documents in RGB format. Publication No. GEG-99141 Default Setting Available Settings With this setting set to Off, RGB colors...

  • Page 173: Functions Menu

    Functions Menu The Functions Menu provides access to several printer functions that can supply you with informa- tion about the printer and its settings. Use the following procedure to enter the Functions Menu: Press the MENU button on the control panel.

  • Page 174: Disk Menu

    The Disk Menu provides access to the printer settings that are related to the optional Hard Disk. Use the following procedure to enter the Disk Menu: Press the MENU button on the control panel.

  • Page 175: Status Menu

    WARNING! All files on the hard disk will be deleted if the Format Disk function is selected. Status Menu In addition to the main menus listed above, the printer also provides a status menu that allows you to view the current settings for the input and output trays and the toner cartridge. Use the follow- ing procedure to enter the Status Menu: Press the STATUS button on the control panel.
  • Page 176 7-26 GENICOM Intelliprint cL160 User Guide Status Menu Tray 1 This submenu allows you to view the current Media Size, Media Type, and Level for Tray 1. Tray 2 (optional) This submenu allows you to view the current Media Size, Media Type, and Level for Tray 2.
  • Page 177 GENICOM Intelliprint cL160 User Guide 7-27 Status Menu Apr 02 Publication No. GEG-99141 Genicom...
  • Page 178 7-28 GENICOM Intelliprint cL160 User Guide Status Menu Publication No. GEG-99141 Apr 02 Genicom...

  • Page 179: Using Dram Dimms And Power-On Files

    In this Chapter . . . • “About this Chapter” on page 8-2 • “Installing DRAM Memory DIMMS” on page 8-2 • “Installing a FLASH DIMM Module” on page 8-5 • “Using the Power-On Files Feature” on page 8-7 Apr 02 Genicom Publication No. GEG-99141...

  • Page 180: Installing Dram Memory Dimms

    DIMM modules. Downloading software to the FLASH DIMM module is also discussed in this chapter. Installing DRAM Memory DIMMS Ensure that the printer power switch is set to the OFF [ O ] position. Disconnect the power cord from the wall outlet. Publication No. GEG-99141...
  • Page 181 Turn thumbscrews on controller assembly counterclockwise until loose and gently pull con- troller assembly towards you to remove from printer. Carefully insert a DRAM DIMM which is compatible with your printer into any available DRAM DIMM slot as shown below. When properly seated, gently push down on the DIMM until the white braces close and snap onto the ends of the DIMM.
  • Page 182 Reinstall the controller assembly. Once firmly in place, push and hand tighten the thumb- screws in a clockwise direction. Connect the power cord to the wall outlet. Turn the printer power switch to the ON [ I ] position. Publication No. GEG-99141 Genicom...

  • Page 183: Installing A Flash Dimm Module

    Installing a FLASH DIMM Module Ensure that the printer power switch is set to the OFF [ O ] position. Disconnect the power cord from the wall outlet. Turn thumbscrews on controller assembly counterclockwise until loose and gently pull con- troller assembly towards you to remove from printer.
  • Page 184 GENICOM Intelliprint cL160 User Guide Installing a FLASH DIMM Module Carefully insert a FLASH DIMM module in FLASH DIMM slot as shown below. When properly seated, gently push down on the DIMM until the white braces close onto the ends of the DIMM.

  • Page 185: Using The Power-On Files Feature

    Using the Power-On Files Feature Power-on Files Defined If an optional FLASH DIMM or hard disk drive is installed in your printer, your printer has the capability of storing additional power-on files which can be read and interpreted at power-on. See “FLASH Menu”...
  • Page 186 GENICOM Intelliprint cL160 User Guide Using the Power-On Files Feature NOTE: Contact the technical support team at your point of purchase for additional information regarding loading and using power-on files. Publication No. GEG-99141 Genicom Apr 02...
  • Page 187 GENICOM Intelliprint cL160 User Guide 8-9 Using the Power-On Files Feature Apr 02 Publication No. GEG-99141 Genicom...
  • Page 188 8-10 GENICOM Intelliprint cL160 User Guide Using the Power-On Files Feature Publication No. GEG-99141 Apr 02 Genicom...

  • Page 189: Appendix A General Information

    In this Chapter . . . • “About this Appendix” on page A-2 • “Sources of Support” on page A-2 • “GENICOM LLC Worldwide Offices” on page A-3 • “GENICOM Part Numbers” on page A-4 Apr 02 Genicom Publication No. GEG-99141...

  • Page 190: About This Appendix

    The GENICOM LLC server provides access to technical reports, new product announcements, a trade show schedule, and other general information about GENICOM LLC. You can access the GENICOM LLC server via any one of the many world-wide web browsers avail- able to Internet users. The GENICOM LLC home page is http://www.genicom.com.

  • Page 191: Genicom Llc Service

    Other important GENICOM phone numbers: • GENICOM Sales - (800) 436-4266 • GENICOM Parts - (800) 436-4266 x 2 x 3, Parts ID: (800) 436-4266 x 2 x 4 • GENICOM Supplies - (800) 436-4266 x 2 x 1 GENICOM LLC Worldwide Offices...

  • Page 192: Genicom Part Numbers

    GENICOM Intelliprint cL160 User Guide GENICOM Part Numbers GENICOM Germany GENICOM Italy GENICOM The Netherlands GENICOM Singapore GENICOM U.K. GENICOM Part Numbers Below lists the part numbers for your local authorized GENICOM dealer. Publication No. GEG-99141 GENICOM GmbH Robert-Bosch-StraBe 52...

  • Page 193: Printers

    Apr 02 GENICOM Intelliprint cL160 User Guide A-5 GENICOM Part Numbers Description Intelliprint CL160 Color Laser Printer, Ethernet, US, 110V Intelliprint CL160 Color Laser Printer, Ethernet, CE, 220V Description CL160 High Capacity Feeder, 500 Sh (HCF) CL160 Univ Cass, 500 Sh A4/LTR...

  • Page 194: Consumables

    Italian, and Spanish.) *also available on the Electronic Library CD-ROM Description CL160 Black Toner Cartridge 8.5K CL160 Yellow Toner Cartridge 6K - CL160 Magenta Toner Cartridge 6K CL160 Cyan Toner Cartridge 6K Fuser Unit (110v) 100K Pages Fuser Unit (220v) 100K Pages...

  • Page 195: Safety Notes And Regulatory Compliance

    Safety Notes and Regulatory Compliance In this Chapter . . . • “About this Appendix” on page B-2 • “Safety Notes” on page B-2 • “Regulatory Compliance” on page B-2 Apr 02 Genicom Publication No. GEG-99141...

  • Page 196: Safety Notes

    Safety Notes • Be sure to switch off and unplug the printer before accessing the interior of the printer for cleaning, maintenance, or fault clearance. Accessing the interior of a live machine exposes you to the risk of electric shock.

  • Page 197: Emc Compliance

    AS/NZS 3548:1995 including A1:1997 and A2:1997 • EN55022: 1994 including A1:1995 and A2:1997 • FCC Part 15, Subpart B (CFR 47, 1995) • CISPR22: 1993 including A1:1995 and A2:1996 Apr 02 GENICOM Intelliprint cL160 User Guide B-3 Regulatory Compliance Genicom Publication No. GEG-99141...
  • Page 198 GENICOM Intelliprint cL160 User Guide Regulatory Compliance Publication No. GEG-99141 Apr 02 Genicom...

  • Page 199: Apr 02 Genicom Publication No. Geg

    Printing Font Summaries In this Chapter . . . “About this Appendix” on page C-2 “Printing a Font Summary” on page C-2 “PostScript Font Summary” on page C-3 “PCL Font Summary” on page C-7 Apr 02 Genicom Publication No. GEG-99141...

  • Page 200: Genicom Apr

    Printing a Font Summary Your printer has the capability of printing summaries of all installed PCL or PostScript fonts. To print a Font Summary, follow these steps: From the Ready status, press MENU, the control panel display will read:...

  • Page 201: Postscript Font Summary

    GENICOM Intelliprint cL160 User Guide C-3 PostScript Font Summary PostScript Font Summary Apr 02 Publication No. GEG-99141 Genicom...

  • Page 202: Postscript Font Summary (Cont'd

    GENICOM Intelliprint cL160 User Guide PostScript Font Summary (cont’d) PostScript Font Summary (cont’d) Publication No. GEG-99141 Genicom Apr 02...
  • Page 203 GENICOM Intelliprint cL160 User Guide C-5 PostScript Font Summary (cont’d) PostScript Font Summary (cont’d) Apr 02 Publication No. GEG-99141 Genicom...

  • Page 204: Postscript Font Summary (Cont'd

    GENICOM Intelliprint cL160 User Guide PostScript Font Summary (cont’d) PostScript Font Summary (cont’d) Publication No. GEG-99141 Genicom Apr 02...

  • Page 205: Pcl Font Summary (Cont'd

    GENICOM Intelliprint cL160 User Guide C-7 PostScript Font Summary (cont’d) PCL Font Summary Apr 02 Publication No. GEG-99141 Genicom...
  • Page 206 GENICOM Intelliprint cL160 User Guide PCL Font Summary (cont’d) PCL Font Summary (cont’d) Publication No. GEG-99141 Genicom Apr 02...
  • Page 207 GENICOM Intelliprint cL160 User Guide C-9 PCL Font Summary (cont’d) Apr 02 Publication No. GEG-99141 Genicom...
  • Page 208 C-10 GENICOM Intelliprint cL160 User Guide PCL Font Summary (cont’d) Publication No. GEG-99141 Apr 02 Genicom...

  • Page 209: Frequently Used Ethernet Commands

    Frequently Used Ethernet Commands In this Chapter . . . • “About this Appendix” on page D-2 • “Server Commands” on page D-3 • “Protocol Commands” on page D-6 Apr 02 Genicom Publication No. GEG-99141...
  • Page 210 Each section lists additional information needed to use the command table in that section. Publication No. GEG-99141 GENICOM Intelliprint cL160 User Guide Set Privileged ” is shown, you must choose either Enabled or Dis- {EN|DIS}...

  • Page 211: Server Commands

    GENICOM Intelliprint cL160 User Guide Server Commands Server Commands Command DEFINE SERVER BOOTP {EN|DIS} DEFINE SERVER DHCP {EN|DIS} DEFINE SERVER GATEWAY ipaddress DEFINE SERVER INCOMING option DEFINE SERVER IPADDRESS ipaddress DEFINE SERVER LOADHOST ipaddress DEFINE SERVER LOGIN PASSWORD DEFINE SERVER NAME “newname”...
  • Page 212 DEFINE SERVICE “name” PORT num DEFINE SERVICE “name” option DEFINE SERVICE “name” option Publication No. GEG-99141 GENICOM Intelliprint cL160 User Guide Frequently-used Server Commands Option(s) Description Specifies the name or path (TCP) of the software download file. The filename can be up to 11 characters, and the pathname can be up to 26.
  • Page 213 GENICOM Intelliprint cL160 User Guide Server Commands Command DEFINE SERVICE “name” option INITIALIZE option LOGOUT option PURGE SERVICE option SET PRIVILEGED {SHOW|MONITOR} QUEUE {SHOW|MONITOR} SERVER {SHOW|MONITOR} SERVICE option ZERO COUNTERS option Apr 02 Frequently-used Server Commands Option(s) Description TCPPORT string Specifies a service.

  • Page 214: Protocol Commands

    DEFINE PROTO LAT option DEFINE PROTO NETWARE option DEFINE PROTO NETWARE ENCAPSULATION option {EN|DIS} Publication No. GEG-99141 GENICOM Intelliprint cL160 User Guide is an abbreviation for the optional keyword PROTO Protocol Commands Option(s) {EN|DIS} ZONE newzone {EN|DIS} GATEWAY ipaddr IPADDRESS ipaddr...
  • Page 215 GENICOM Intelliprint cL160 User Guide Protocol Commands Command DEFINE PROTO NETWARE LOADHOST server PURGE PROTO NETWARE ACCESS option {SHOW|MONITOR} protocolname Apr 02 Protocol Commands Option(s) Description Same as see “DEFINE SERVER NETWARE LOADHOST server” on page D-3. Removes all entries from the NetWare access list.
  • Page 216 GENICOM Intelliprint cL160 User Guide Protocol Commands Publication No. GEG-99141 Apr 02 Genicom...

Table of Contents

Save PDF
