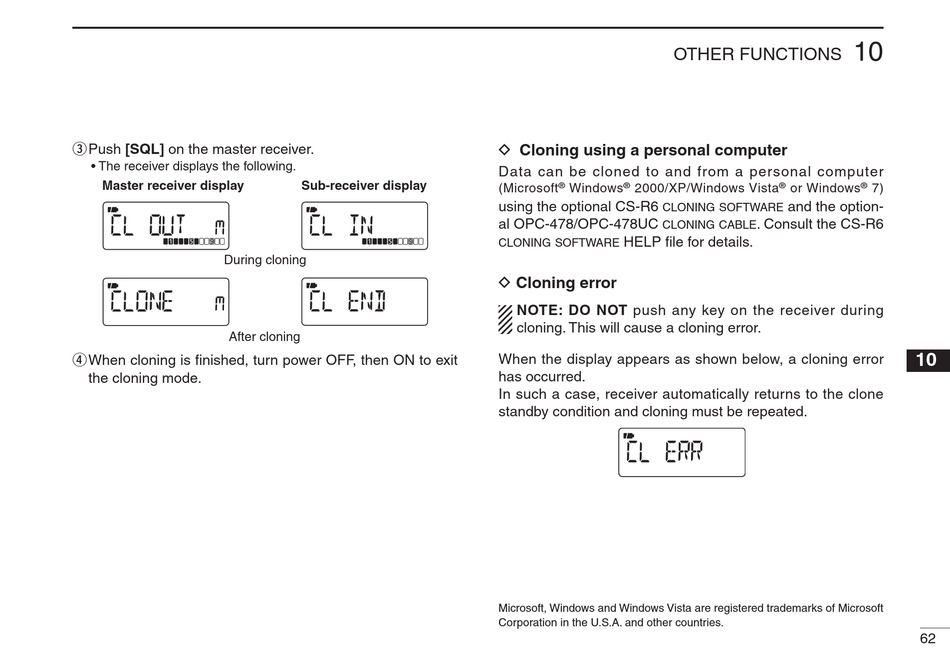

Icom IC-R6 Instruction Manual page 75

e Push [SQL] on the master receiver.
• The receiver displays the following.
Master receiver display
During cloning
After cloning
r When cloning is finished, turn power OFF, then ON to exit
the cloning mode.
Sub-receiver display
OTHER FUNCTIONS
DCloning using a personal computer
Data can be cloned to and from a personal computer
(Microsoft ® Windows ® 2000/XP/Windows Vista
using the optional CS-R6
cloning software
al OPC-478/OPC-478UC
cloning cable
HELP file for details.
cloning software
D Cloning error
NOTE: DO NOT push any key on the receiver during
cloning. This will cause a cloning error.
When the display appears as shown below, a cloning error
has occurred.
In such a case, receiver automatically returns to the clone
standby condition and cloning must be repeated.
Microsoft, Windows and Windows Vista are registered trademarks of Microsoft
Corporation in the U.S.A. and other countries.
10
1
2
3
® or Windows ® 7)
4
and the option-
5
. Consult the CS-R6
6
7
8
9
10
11
12
13
14
15
16
62
