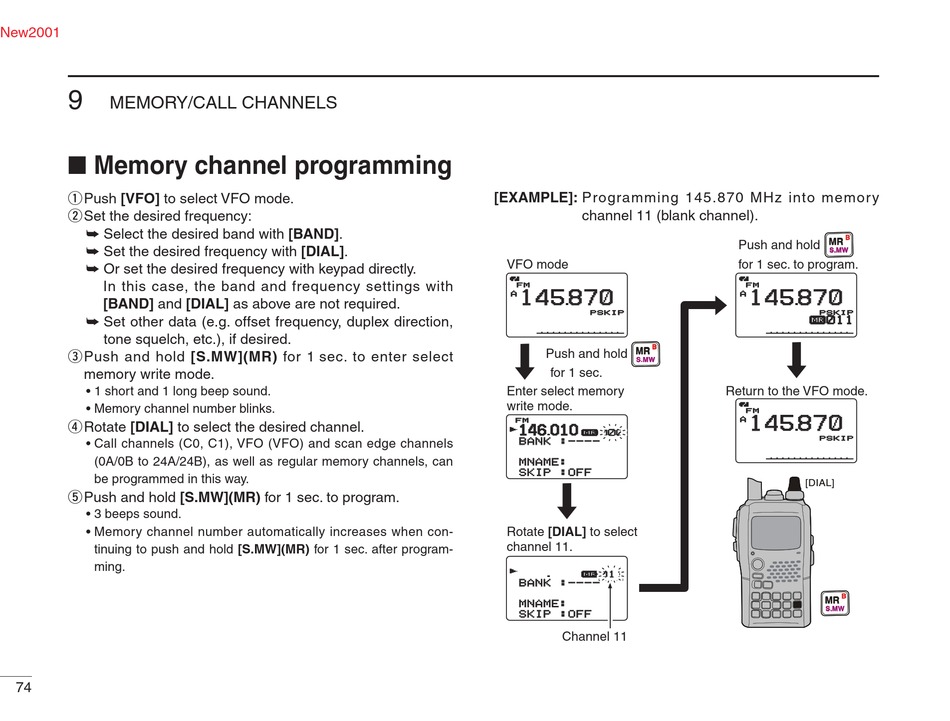

Memory Channel Programming - Icom IC-92AD Instruction Manual

9
MEMORY/CALL CHANNELS

■ Memory channel programming

q Push [VFO] to select VFO mode.
w Set the desired frequency:
➥ Select the desired band with [BAND].
➥ Set the desired frequency with [DIAL].
➥ Or set the desired frequency with keypad directly.
In this case, the band and frequency settings with
[BAND] and [DIAL] as above are not required.
➥ Set other data (e.g. offset frequency, duplex direction,
tone squelch, etc.), if desired.
e Push and hold [S.MW](MR) for 1 sec. to enter select
memory write mode.
• 1 short and 1 long beep sound.
• Memory channel number blinks.
r Rotate [DIAL] to select the desired channel.
• Call channels (C0, C1), VFO (VFO) and scan edge channels
(0A/0B to 24A/24B), as well as regular memory channels, can
be programmed in this way.
t Push and hold [S.MW](MR) for 1 sec. to program.
• 3 beeps sound.
• Memory channel number automatically increases when con-
tinuing to push and hold [S.MW](MR) for 1 sec. after program-
ming.
74
[EXAMPLE]: Programming 145.870 MHz into memor y
channel 11 (blank channel).
VFO mode
FM FM
14 145 870 870
A
PSKIP PSKIP
B
MR
Push and hold
S.MW
for 1 sec.
Enter select memory
write mode.
FM FM
14 146 010 010
r
µ 000 000
BANK :---- BANK :----
MNAME: MNAME:
SKIP SKIP :OFF :OFF
Rotate [DIAL] to select
channel 11.
r
µ 011 011
BANK :---- BANK :----
MNAME: MNAME:
SKIP :OFF SKIP :OFF
Channel 11
B
MR
Push and hold
S.MW
for 1 sec. to program.
FM FM
145 870 14 870
A
PSKIP PSKIP
µ 011 011
Return to the VFO mode.
FM FM
14 145 870 870
A
PSKIP PSKIP
[DIAL]
B
MR
S.MW
