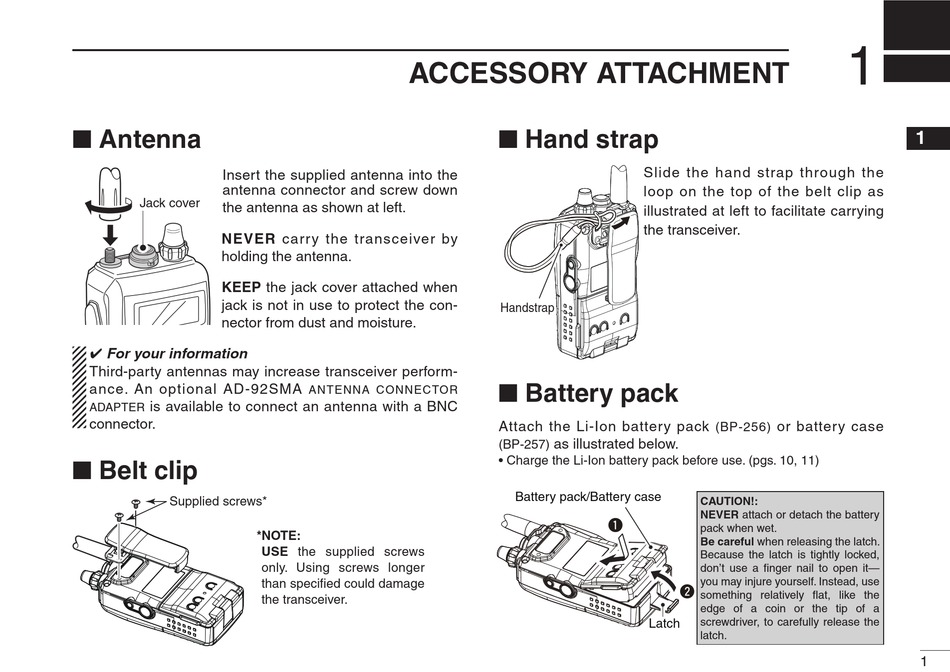

Accessory Attachment; Antenna; Belt Clip; Hand Strap - Icom IC-92AD Instruction Manual

■ Antenna

Insert the supplied antenna into the
antenna connector and screw down
Jack cover
the antenna as shown at left.
NEVER carr y the transceiver by
holding the antenna.
KEEP the jack cover attached when
jack is not in use to protect the con-
nector from dust and moisture.
✔ For your information
Third-party antennas may increase transceiver perform-
ance. An optional AD-92SMA
is available to connect an antenna with a BNC
ADAPTER
connector.

■ Belt clip

Supplied screws*

ACCESSORY ATTACHMENT

ANTENNA CONNECTOR
*NOTE:
USE the supplied screws
only. Using screws longer
than specified could damage
the transceiver.

■ Hand strap

Slide the hand strap through the
loop on the top of the belt clip as
illustrated at left to facilitate carrying
the transceiver.
Handstrap

■ Battery pack

Attach the Li-Ion battery pack
as illustrated below.
(BP-257)
• Charge the Li-Ion battery pack before use. (pgs. 10, 11)
Battery pack/Battery case
q
Latch
1
or battery case
(BP-256)
CAUTION!:
NEVER attach or detach the battery
pack when wet.
Be careful when releasing the latch.
Because the latch is tightly locked,
don't use a finger nail to open it—
you may injure yourself. Instead, use
w
something relatively flat, like the
edge of a coin or the tip of a
screwdriver, to carefully release the
latch.
1
1
