PANEL DESCRIPTION
I Front, top and side panels (Continued)
u CHANNEL UP/DOWN KEYS
• Selects an operating channel. (pgs. 7, 8)
• Selects the SET mode condition of the item. (p. 16)
• Checks tag channels or changes scanning direction dur-
ing scan. (p. 14)
• Sets or clears the displayed channel as a tag (scanned)
channel when pushed both keys for 1 sec. (p. 14)
• While pushing this key, turn power ON to clear all tag
channels in the channel group. (p. 14)
i DIAL/CHANNEL GROUP KEY [DIAL]
• Push to return to the channel selection before selecting
the channel 16 or the call channel with [16•
• Selects one of 2 regular channel groups in sequence
when pushed for 1 sec. (p. 8)
- International, U.S.A.*
1
* Available for the UK version only
2
* Available for the German version only
o CHANNEL 16 KEY [16•C]
• Selects Channel 16 when pushed. (p. 7)
• Selects the call channel when pushed for 1 sec. (p. 7)
• Enters call channel programming condition when the call
channel is selected and this key is pushed for 3 sec.
(p. 11)
• Exits set mode when pushed during set mode operation.
(p. 16)
!0 PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
5
[Y Y ]/[Z Z ]•
[TAG]
].
C
1 2
(or ATIS* ) channels are available.

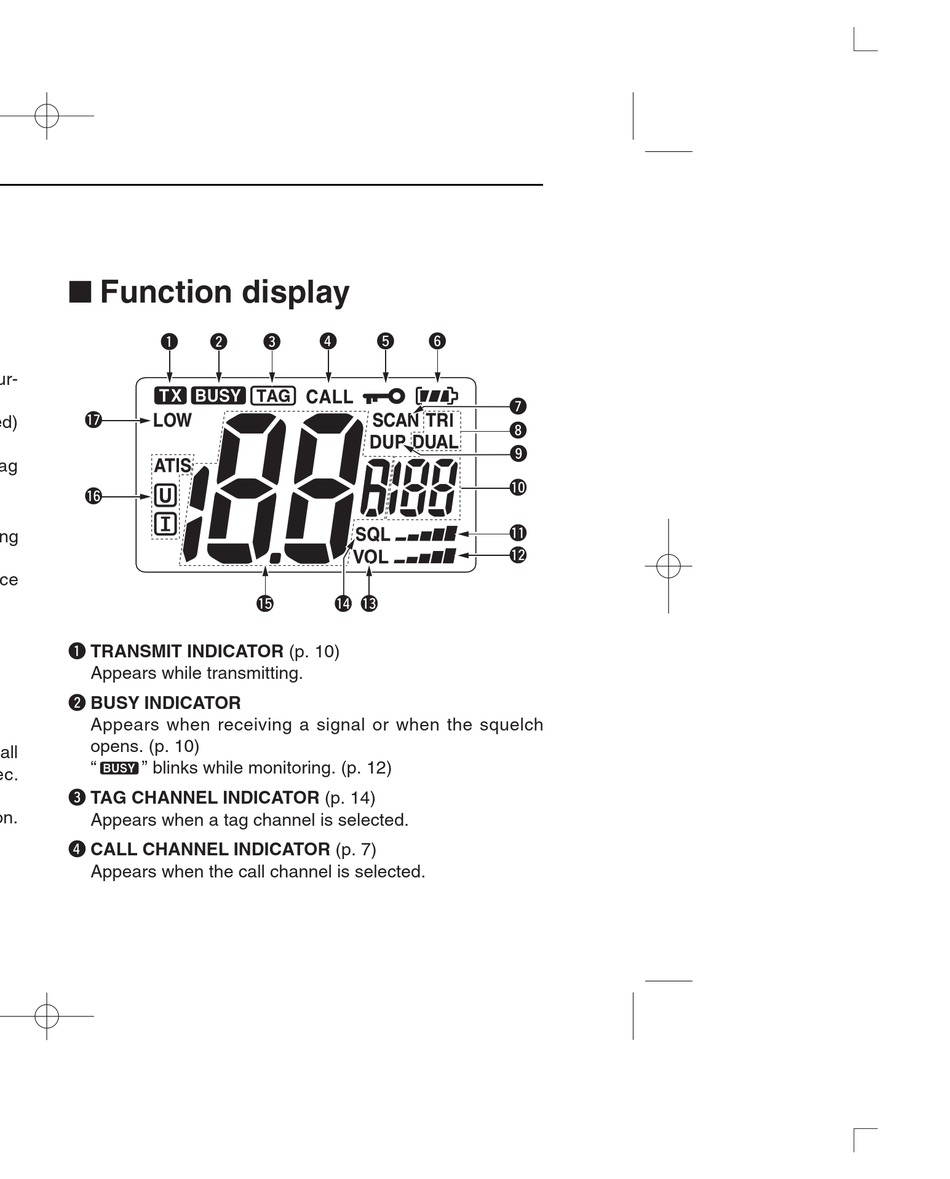

I Function display

q w e
!7
!6
!5
q TRANSMIT INDICATOR (p. 10)
Appears while transmitting.
w BUSY INDICATOR
Appears when receiving a signal or when the squelch
opens. (p. 10)
" " blinks while monitoring. (p. 12)
e TAG CHANNEL INDICATOR (p. 14)
Appears when a tag channel is selected.
r CALL CHANNEL INDICATOR (p. 7)
Appears when the call channel is selected.
r t y
u
i
o
!0
!1
!2
!4 !3
