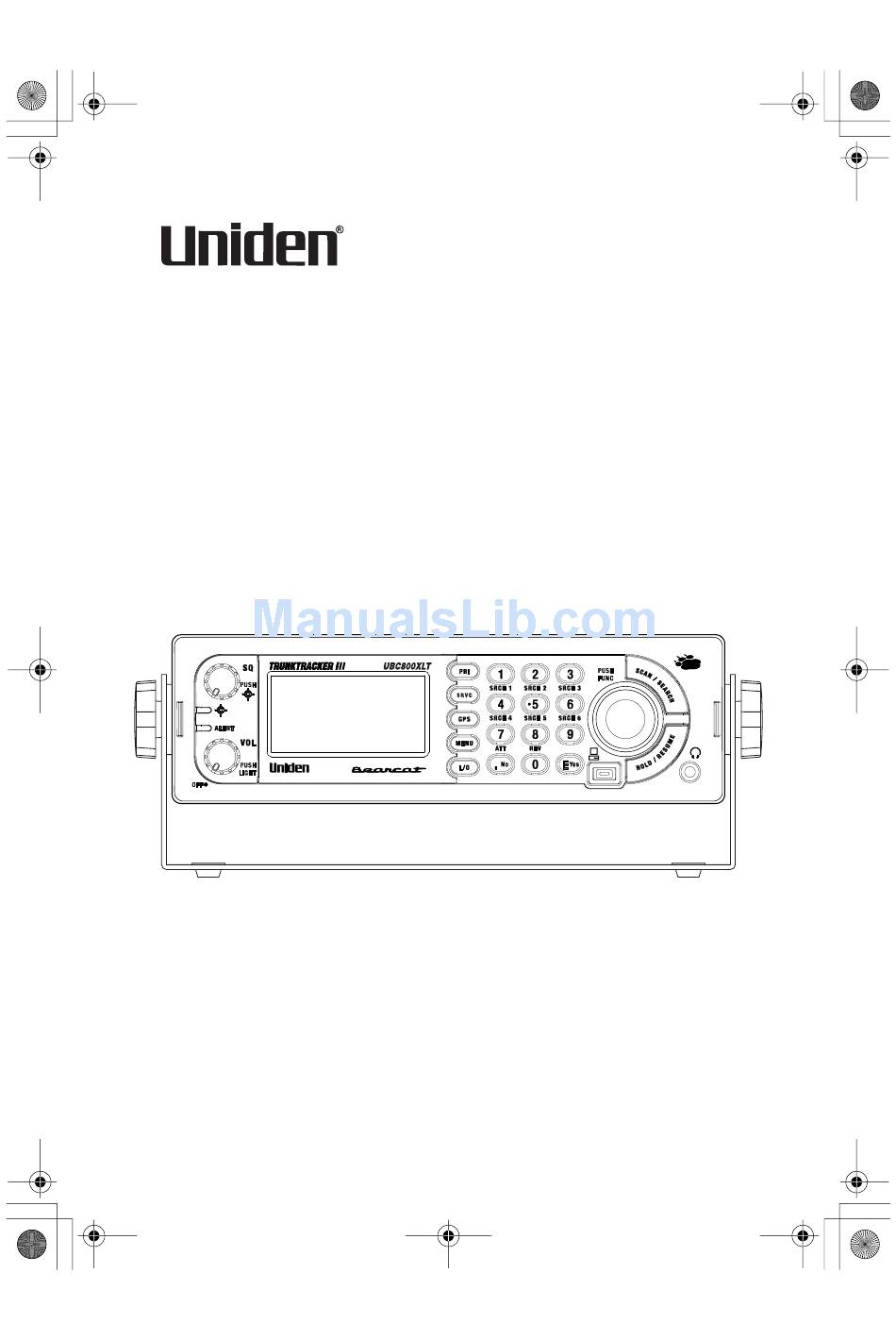

UB356ZH.fm Page 1 Wednesday, December 19, 2007 11:28 AM
UBC800XLT
OWNER'S MANUAL
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Uniden UBC800XLT

Summary of Contents for Uniden UBC800XLT

  • Page 1 C230-E UB356ZH.fm Page 1 Wednesday, December 19, 2007 11:28 AM UBC800XLT OWNER’S MANUAL OWNER’S MANUAL...

  • Page 2: Precautions

    This might be particularly true of the type of earphone that is placed in the ear canal. WARNING! Uniden does not represent this unit to be waterproof. To reduce the risk of fire or electrical shock, do not expose this unit to rain or moisture. ®...

  • Page 3: Power Related Issues

    UB356ZH.fm Page 3 Wednesday, December 19, 2007 11:28 AM Power Related Issues Important: To prevent memory from being corrupted, do not unplug the AC adapter during the time the memory is accessed for programming or auto store. Notes: • If when you connect the AC adapter the [VOL] /Power Switch is ON, the scanner may not power on.

  • Page 4: Table Of Contents

    Using the Scroll Control ....................... 17 How the Scanner’s Controls Are Represented in This Manual ............ 18 Entering Text Within A Menu Option.................... 18 Understanding Scanning and the UBC800XLT ................19 Understanding the Scanner’s Memory ................... 19 Understanding Quick Keys ......................19 What is Scanning?..........................
  • Page 5 UB356ZH.fm Page 5 Wednesday, December 19, 2007 11:28 AM Included With Your Scanner ......................28 Setting Up Your Scanner........................ 29 Base Station ........................... 29 Setting Up an Audio Recording Device or Computer Recording ............ 31 Vehicle Installation.......................... 31 Mounting Using the Bracket ......................31 Mounting Using the DIN-E Sleeve (Optional hardware)...............
  • Page 6 UB356ZH.fm Page 6 Wednesday, December 19, 2007 11:28 AM Displaying Scanner Information...................... 55 Viewing Memory Used ......................... 55 Viewing the Firmware Version ....................55 Initializing the Scanner’s Memory ....................55 Connecting Your Scanner to a Personal Computer................ 55 Volume/Squelch with PC Control ....................56 Wired Cloning ..........................
  • Page 7 Setting Tone-Out Standby ......................105 Setting Up Tone-Out........................105 Tone-Out Multi-Channel Monitoring ..................... 107 Set Record............................ 107 Using the UBC800XLT with a GPS ....................108 Device Compatibility ........................108 Connecting Your Scanner to a GPS Device ................. 108 Initial Scanner/GPS Operation ..................... 108 Location-Based (GPS) Scanning....................
  • Page 8 UB356ZH.fm Page 8 Wednesday, December 19, 2007 11:28 AM Troubleshooting ..........................116 Other Specifications ........................119 Reference ............................120 Preset Fleet Maps ........................120 User Defined Fleet Maps ......................122 Type I Programming Information ....................122 Size Code Restrictions ......................123 CTCSS Frequencies........................

  • Page 9: Introduction

    UB356ZH.fm Page 9 Wednesday, December 19, 2007 11:28 AM Introduction Your UBC800XLT scanner is a state-of-the-art scanner radio with Trunk Tracker III™ and automatic scanning capabilities. You can store in the dynamic memory conventional frequencies such as police, fire/emergency, marine, air, amateur, and other communications.

  • Page 10: Feature Summary

    UB356ZH.fm Page 10 Wednesday, December 19, 2007 11:28 AM FEATURE SUMMARY BAND COVERAGE < Band Plan 1 > Frequency (MHz) Modulation Step (kHz) Remark Lower Edge Upper Edge 25.0000 29.9950 30.0000 79.9875 12.5 80.0000 82.9900 83.0000 87.2875 12.5 87.3000 107.9500 108.0000 136.9875 12.5...
  • Page 11 UB356ZH.fm Page 11 Wednesday, December 19, 2007 11:28 AM < Band Plan 2 > Frequency (MHz) Modulation Step (kHz) Remark Lower Edge Upper Edge 25.0000 49.9950 50.0000 84.0100 20 with 84.0150 87.2950 15kHz Offset 87.3000 107.9500 108.0000 136.9875 12.5 AIR BAND 108.0000 136.9916 / 8.33...
  • Page 12 UB356ZH.fm Page 12 Wednesday, December 19, 2007 11:28 AM < Band Plan 3> Frequency (MHz) Modulation Step (kHz) Remark Lower Edge Upper Edge 25.0000 29.9950 30.0000 79.9937 6.25 80.0000 82.9937 6.25 83.0000 87.2937 6.25 87.3000 107.9500 108.0000 136.9875 12.5 AIR BAND 108.0000 136.9916 / 8.33...

  • Page 13: Feature Highlights

    UB356ZH.fm Page 13 Wednesday, December 19, 2007 11:28 AM Feature Highlights General DIN-E and ISO Vehicle Mountable — using an included DIN-E sleeve or a standard ISO technique, the scanner can be easily mounted in most vehicles. Close Call™ RF Capture Technology — Instantly detects and tunes to nearby transmissions with no additional programming.
  • Page 14 UB356ZH.fm Page 14 Wednesday, December 19, 2007 11:28 AM Fire Tone-Out Standby — Lets you set the scanner to alert you if a two-tone sequential page is transmitted. You can set up to 10 settings (transmit frequency, tone frequencies) then select one for standby monitoring. Up to ten tone-outs on the same RF setting can be scanned at one time.

  • Page 15: Gps

    UB356ZH.fm Page 15 Wednesday, December 19, 2007 11:28 AM Startup Configuration — Lets you easily manage multiple configurations for your scanner. Single-Handed Function Control Operation — You can tap the Function/Scroll Control to enable the Function mode. It reverts to normal mode in about 3 seconds from your last press if no other action occurs.

  • Page 16: Auto Store

    Internet and load them into the scanner. PC control and programming software will be available at http://www.butelsoftware.com/. Clone Mode — You can clone all programmed data, including the contents of the scanner’s memory, menu settings, and other parameters from one UBC800XLT scanner to another UBC800XLT scanner.

  • Page 17: Memory Storage Limits

    When used in this manner, you see in this manual. Located prominently on the right of the UBC800XLT’s front panel, the knob/switch lets you easily control channel selection, plus Normal and Function Modes, as well as how most of the information appears on the display.

  • Page 18: How The Scanner's Controls Are Represented In This Manual

    Scroll Control again. f flashes at approximately 1 second intervals. If you select Function while scanning, the UBC800XLT continues to scan, but holds on the current system until the function operation is cancelled.

  • Page 19: Understanding Scanning And The Ubc800Xlt

    Traditional “Banked” scanners let you select and deselect banks by pressing a single digit on the keypad. The UBC800XLT uses a similar method to turn on and off scanning sites and systems. When you program a system or site, you assign a quick key (System/Site Quick Key, or SQK) from 0 to 99.

  • Page 20: What Is Scanning

    What is Searching? The UBC800XLT can search each of its 6 service search ranges and up to 10 custom search ranges to find active frequencies. This is different from scanning because you are searching for frequencies that have not been programmed into the scanner’s channels.

  • Page 21: Conventional Scanning

    A scanner, such as your UBC800XLT, equipped with CTCSS and DCS, can code each received frequency with a specific sub-audible CTCSS or DCS frequency or code.

  • Page 22: Repeater Operation

    What is Trunk Tracking? Your UBC800XLT is designed to track the following types of trunking systems. • Motorola Type I, Type II, Type IIi hybrid, SMARTNET, and PRIVACYPLUS analog trunking systems, which are extensively used in 800 MHz communication systems.

  • Page 23: Trunked Scanning

    This semi-random frequency assignment made monitoring such a system impossible prior to Uniden’s invention of the TrunkTracker scanner. Not only does your UBC800XLT scan channels like a conventional scanner, it actually follows the users of a trunked radio system. Once you know and program a talk group’s ID (TGID), you won’t miss any of the action.

  • Page 24: Edacs Trunking

    Talk groups are assigned in an Agency-Fleet-Subfleet (AFS) hierarchy.There is one variation of EDACS called SCAT that your UBC800XLT can monitor. Logical Channel Numbers — each frequency used by the system is assigned an LCN. This information is programmed into each user radio. When a user presses PTT, their radio sends their AFS information to the control channel.

  • Page 25: Ltr Trunking

    Because of the logical hierarchy of the AFS system, your UBC800XLT lets you assign wildcard ID’s that let you, for example, use only one ID memory to identify all units in either an agency or a fleet.

  • Page 26: Startup Configuration

    I-Call (Motorola/EDACS) I-calls are direct unit-to-unit transmissions that are not heard by other system users. Your UBC800XLT can receive I-call transmissions. See “Setting I-Call...

  • Page 27: Where To Get More Information

    Many web sites have lists of frequencies for your area. You can use a search engine to find and use them. Make a list of the agencies you want to listen to, then look up the frequencies and systems used by those agencies. www.butelsoftware.com — Programming software. Understanding Scanning and the UBC800XLT...

  • Page 28: Included With Your Scanner

    UB356ZH.fm Page 28 Wednesday, December 19, 2007 11:28 AM Included With Your Scanner Cigarette Lighter AC Adapter Adapter Power Cord (P/N AD-968) UBC800XLT Scanner Three Wire DC (with Orange Wire – See Step6 on Page 33) Power Cord Mounting Bracket Push-on type...

  • Page 29: Setting Up Your Scanner

    These guidelines will help you install and set up your new scanner: The UBC800XLT can be placed on a convenient surface in your home as a base station, and connected to a standard outlet. You must use either the supplied antenna or an electrically correct outdoor antenna, properly and safely mounted at your chosen site.
  • Page 30 Once the radio is positioned, connect it to a source of AC power using the supplied 13.8V, 750 mA AC adapter. Insert the barrel of the AC adapter to the jack on the rear, upper right side of the radio marked WARNING! Use only the Uniden-supplied AC adapter with this scanner.

  • Page 31: Setting Up An Audio Recording Device Or Computer Recording

    UB356ZH.fm Page 31 Wednesday, December 19, 2007 11:28 AM Insert the connector of the supplied indoor telescoping antenna to the BNC Antenna Connector and apply moderate pressure to secure it. Setting Up an Audio Recording Device or Computer Recording It is best if you plan ahead when you initiate the basic setup of the scanner if you include the components to record incoming reception.

  • Page 32: Mounting Using The Din-E Sleeve (Optional Hardware)

    Bracket Mounting Screws UBC800XLT 1. Using appropriate screws or other hardware, secure the bracket. 2. Insert the scanner and insert the bracket knobs to lock the scanner in position. 3. Attach the Cigarette Lighter Power Cord to the rear of the scanner and plug the adapter end into a dash mounted 12V DC socket.
  • Page 33 UB356ZH.fm Page 33 Wednesday, December 19, 2007 11:28 AM Opening in dash DIN-E Sleeve UBC800XLT with outer case removed 1. Remove the bracket if previously attached. 2. Remove the four Philips screws on the rear that secure the outer metal case and pull off the case with care.

  • Page 34: Removing The Scanner From The Din-E Sleeve

    Slide the cover toward the rear and off. Once the sleeve is removed, you will see threaded, metric machine screw holes on either side of the chassis cabinet. Uniden does not supply these screws. Their diameter, length, and screw type should be chosen by a qualified installer based on the internal vehicle bracket...

  • Page 35: Removing The Display Sticker

    UB356ZH.fm Page 35 Wednesday, December 19, 2007 11:28 AM Once the original radio is removed from the vehicle dash and the fit of the scanner is correct, be sure to connect all the power, audio, antenna, and any other cables or wires, to the scanner before the scanner is secured.

  • Page 36: Connecting An Extension Speaker

    UB356ZH.fm Page 36 Wednesday, December 19, 2007 11:28 AM WARNING! Never connect anything other than the recommended amplified extension speaker to the scanner’s headphone jack. Damage to the scanner might occur. Connecting an Extension Speaker In a noisy area, an optional amplified extension speaker, positioned in the right place, might provide more comfortable listening.

  • Page 37: Controls, Keys, And Functions

    GPS/Remote External Spkr The knobs and keys on the UBC800XLT produce several different actions. You can, for example, rotate the knobs as well as press them to achieve a different result. Pressing a key briefly can produce one result while pressing and holding, gives a different result.
  • Page 38 UB356ZH.fm Page 38 Wednesday, December 19, 2007 11:28 AM Control/Key Label Mode Action Result Squelch Rotate Sets the Squelch Level to permit strong signals to be heard with no background noise or lower strength signals with some background noise Press Toggle: Close Call DND-CC Pri-OFF Press &...
  • Page 39 UB356ZH.fm Page 39 Wednesday, December 19, 2007 11:28 AM Control/Key Label Mode Action Result [L/O] Scan Press Temporarily locks out a system channel, a Search search frequency, or location data. Hold Cancelled when Power is turned off. Press 2X Permanently locks out system channel, a search frequency, or location data.
  • Page 40 UB356ZH.fm Page 40 Wednesday, December 19, 2007 11:28 AM Control/Key Label Mode Action Result [.No] Press Cancel error or warning messages Hold Press Enter [.No] For frequency Close Call Press Enter “-” or “I” for TGID Only Tone-Out Press 2X Delete current character in name edit Press 3X Clear all letters in name edit...
  • Page 41 UB356ZH.fm Page 41 Wednesday, December 19, 2007 11:28 AM Control/Key Label Mode Action Result [MENU] Scan F + Press Initiates edit menu for current system, Scan Hold current search range, or current location data Menu Press Back up one level in the menu. Press Use with Scroll Control to select menu settings...

  • Page 42: A Look At The Display

    UB356ZH.fm Page 42 Wednesday, December 19, 2007 11:28 AM A Look At The Display The display has indicators that show the scanner’s current operating status. The display information helps you understand how your scanner operates. The LCD screens shown here are only a few of many that you will see while in different modes.

  • Page 43: Operation

    UB356ZH.fm Page 43 Wednesday, December 19, 2007 11:28 AM Operation Turning On the Scanner and Setting the Squelch To turn the scanner on, rotate [VOL] clockwise. Turn the knob to a comfortable sound level. Rotate the squelch control [SQ] clockwise until you either hear a broadcast or noise just stops.

  • Page 44: Scanning Systems

    • Within a system, channels are scanned according to the assigned channel group, with the same priority as described above for systems. • The UBC800XLT scans a system for the duration you set using the System Hold Time option (see “Setting the System Hold Time” on Page 65). For trunked systems, the scanner moves to the next system after the hold time expires, the current transmission ends, and the channel delay expires.

  • Page 45: Selecting Systems To Scan

    UB356ZH.fm Page 45 Wednesday, December 19, 2007 11:28 AM Selecting Systems to Scan To select systems to scan, press Scan then press the quick key assigned to the system or systems you want to scan. For quick keys [0] - [9], press the quick key’s number.

  • Page 46: Locking/Unlocking Channels

    UB356ZH.fm Page 46 Wednesday, December 19, 2007 11:28 AM Locking/Unlocking Channels If the scanner has stopped on a channel press [L/O] once to temporarily lock it out or quickly press [L/O] twice to permanently lock it out. Cycling power off/on automatically unlocks temporarily locked-out channels.

  • Page 47: Holding On A Channel

    UB356ZH.fm Page 47 Wednesday, December 19, 2007 11:28 AM scan only the current system. To hold on a different site or system, rotate the Scroll Control to select the new site or system then press [E Holding On a Channel To hold on a channel, press [HOLD/RESUME] while the channel is active.

  • Page 48: Trunking Activity Indicators

    UB356ZH.fm Page 48 Wednesday, December 19, 2007 11:28 AM Trunking Activity Indicators To get a visual indication of the activity on trunking systems, press [HOLD/RESUME] to hold on any channel. Then tap and then press [.No] The scanner replaces the third line on the display with trunking activity indicators. When the scanner is monitoring on EDACS or Motorola system, the activity indicators will show which system frequencies have activity.

  • Page 49: Toggling The Display Mode

    UB356ZH.fm Page 49 Wednesday, December 19, 2007 11:28 AM Toggling the Display Mode To change the display so the channel and frequency or Talk Group ID appear instead of extended channel information, hold on any channel then press + [0]. The scanner displays Display Mode 2.

  • Page 50: Using The Menu

    UB356ZH.fm Page 50 Wednesday, December 19, 2007 11:28 AM Using the Menu The UBC800XLT incorporates an effective menu system that lets you make all the necessary setting options required to program the scanner and effectively use the many features. To use the menu, press [MENU].

  • Page 51: Programming General Settings

    UB356ZH.fm Page 51 Wednesday, December 19, 2007 11:28 AM Programming General Settings This section covers your scanners general settings. Setting and Using the Backlight The LCD has a backlight that can be set with three levels of intensity plus OFF. To make your selection, press [VOL].

  • Page 52: Adjusting The Key Beep

    UB356ZH.fm Page 52 Wednesday, December 19, 2007 11:28 AM Adjusting the Key Beep [MENU] Settings Adjust Key Beep Auto — the scanner automatically sets the key beep to match the master volume setting level you select. Level 1 - 15 — the scanner lets you manually select one of fifteen key beep levels.

  • Page 53: Setting The Gps Format

    UB356ZH.fm Page 53 Wednesday, December 19, 2007 11:28 AM [MENU] Settings Adjust Contrast Select a level Level 1 to Level 15 Setting the GPS Format [MENU] Settings Set GPS Format These settings control how the scanner handles GPS input when you are using the location-based functions.

  • Page 54: Setting The Distance Units

    UB356ZH.fm Page 54 Wednesday, December 19, 2007 11:28 AM This setting controls the format used for adjusting Universal time to local time. Set your local time’s offset from UTC (formally known as GMT). Setting the Distance Units [MENU] Settings Set GPS Format Set Unit This setting controls the distance units shown in the GPS data screens and used for entering distance for POI’s...

  • Page 55: Displaying Scanner Information

    UB356ZH.fm Page 55 Wednesday, December 19, 2007 11:28 AM Displaying Scanner Information Viewing Memory Used [MENU] Settings See Scanner Info % Memory Used The scanner displays the percent of memory that is used and the number and the percent of systems, sites and channels that are created. Press any key to return to the previous menu, then press any key to exit the menu.

  • Page 56: Volume/Squelch With Pc Control

    Wired Cloning Using the scanner in a cloning setup lets you transfer programmed data directly from a source or master UBC800XLT to a target or slave UBC800XLT. Wired cloning between other models to the UBC800XLT is not possible. [MENU]...
  • Page 57 UB356ZH.fm Page 57 Wednesday, December 19, 2007 11:28 AM 4. When you are ready to clone the scanner, press [SCAN/SEARCH] on the slave scanner first, then [SCAN/SEARCH] on the master scanner. The master scanner checks the connection between the two scanners, then transfers its data to the slave scanner.

  • Page 58: Programming Your Scanner

    UB356ZH.fm Page 58 Wednesday, December 19, 2007 11:28 AM Programming Your Scanner 1. Plan the system. 2. Program the system into your scanner according to the plan you prepared in Step 1. General Notes You can store up to 6000 channels in up to 500 systems. Each trunking system can have up to 256 sites and up to 250 trunked channels (TGID).

  • Page 59: System Settings

    UB356ZH.fm Page 59 Wednesday, December 19, 2007 11:28 AM System Settings MOTOROLA EDACS System Wide Settings Pages TYPE I TYPE II SCAT /Narrow • • • • • • Edit Name P. 63 • • • • • • Edit Sys P.
  • Page 60 UB356ZH.fm Page 60 Wednesday, December 19, 2007 11:28 AM MOTOROLA EDACS System Option WIDE/ Settings Pages TYPE I TYPE II SCAT NARROW • • • Set I-Call P. 68 • • • Emergency P. 68 Alert • EDCS ID P. 69 Format •...

  • Page 61: Site Settings

    UB356ZH.fm Page 61 Wednesday, December 19, 2007 11:28 AM Site Settings MOTOROLA MOTOROLA TYPE II EDACS TYPE I Site Setting 800MHz 800MHz 800MHz 800MHz 900MHz WIDE NARROW SCAT Standard Splinter Standard Splinter Band Band Band • • • • • •...

  • Page 62: Channel Settings

    UB356ZH.fm Page 62 Wednesday, December 19, 2007 11:28 AM Channel Settings Channel Setting MOT TYPE I MOT TYPE II EDACS • • • • • Edit Name • Edit Frequency • • • • Edit TGID • Set CTCSS/DCS • Set Modulation •...

  • Page 63: Programming Trunked Radio Systems

    UB356ZH.fm Page 63 Wednesday, December 19, 2007 11:28 AM Programming Trunked Radio Systems [MENU] Program System New System Then, select the system type: MOT TYPE 1 — Motorola Type I systems MOT TYPE 2 — Motorola Type II systems EDCS WIDE/NARROW — EDACS Wide and Narrow systems EDCS SCAT —...

  • Page 64: Specifying The Correct System Type

    UB356ZH.fm Page 64 Wednesday, December 19, 2007 11:28 AM Specifying the Correct System Type In order for trunk tracking to work properly, you have to specify the correct system type when you create the system. Here are some tips for selecting the correct type: •...
  • Page 65 UB356ZH.fm Page 65 Wednesday, December 19, 2007 11:28 AM Setting the Startup Key [MENU] Program System Select a conventional system Edit Sys Option Set Startup Key Select a startup key from 0-9 or select [.No] for no startup key. Notes: •...
  • Page 66 UB356ZH.fm Page 66 Wednesday, December 19, 2007 11:28 AM Setting ID Scan/ID Search [MENU] Program System Select a system Edit Sys Option ID Scan/Search Sets whether the scanner only stops on talk groups you have programmed in (ID Scan) or whether the scanner stops on any unlocked channel (ID Search). Setting Channel Delay Time MELCS [MENU]...
  • Page 67 UB356ZH.fm Page 67 Wednesday, December 19, 2007 11:28 AM This setting control whether the system is automatically enabled and disabled when you connect a GPS to the scanner. Set Latitude — Enter the system’s latitude using the format you selected in the system settings.
  • Page 68 UB356ZH.fm Page 68 Wednesday, December 19, 2007 11:28 AM Note: Motorola analog systems use talk group ID’s in multiples of 16. ID numbers that fall between these ID’s indicate special status flags for the system. This setting determines how the scanner will handle ID’s that are not multiples of 16. Select your setting then press Setting End Code Operation [MENU]...
  • Page 69 UB356ZH.fm Page 69 Wednesday, December 19, 2007 11:28 AM Edit Sys Option Emergency Alert Off — the scanner does not alert you to emergency transmissions. Alert 1 - 9 — the scanner sounds an alert beep to notify you of the emergency transmission.
  • Page 70 UB356ZH.fm Page 70 Wednesday, December 19, 2007 11:28 AM Marked Channel — The scanner only sends the audio for channels that have the Record option turned on to the REC jack. Off — The scanner does not send any audio from any channel in the system to the REC jack, even if the record option is turned on for a channel.

  • Page 71: Programming Sites

    UB356ZH.fm Page 71 Wednesday, December 19, 2007 11:28 AM channel group information for trunked systems, but doing so makes it easier to follow specific talk groups. Copying Systems MECSL Occasionally you might want to copy and rename a system to highlight one group over another.
  • Page 72 UB356ZH.fm Page 72 Wednesday, December 19, 2007 11:28 AM The default site names include the following letter in the 16th position to indicate the system type: MS1: Motorola 800 MHz Type I Standard MS2: Motorola 800 MHz Type II Standard MP1: Motorola 800 MHz Type I Splinter MP2: Motorola 800 MHz Type II Splinter M92: Motorola 900 MHz...

  • Page 73: Edit Site

    UB356ZH.fm Page 73 Wednesday, December 19, 2007 11:28 AM Notes: • Access single-digit system/site Quick Keys by pressing the single digit on the keypad during scanning. Access two-digit system Quick Keys by pressing [.No] then both digits. • You can assign as many systems to the same quick key as you want. •...
  • Page 74 UB356ZH.fm Page 74 Wednesday, December 19, 2007 11:28 AM Note: If you select Control Channel Only mode (see “Setting Control-Channel Only (Motorola Systems Only)” on Page 76), you only need to enter the frequency(s) that can be assigned as the control channel. Most frequency lists usually indicate which of the frequencies are the control channel frequencies.
  • Page 75 UB356ZH.fm Page 75 Wednesday, December 19, 2007 11:28 AM Edit Site Select a site Set Lockout Select from the following choices then press Unlocked — the system is scanned when its quick key is enabled. Temporary L/O — the system is locked for this session. Lockout —...
  • Page 76 UB356ZH.fm Page 76 Wednesday, December 19, 2007 11:28 AM Select a site Edit Band Plan You can enter up to 3 band plans. Select the plan to enter or edit, then follow the prompts to enter the Base Frequency, Channel Step, and Channel Offset for the site.

  • Page 77: Programming Channel Groups

    UB356ZH.fm Page 77 Wednesday, December 19, 2007 11:28 AM Deleting Sites [MENU] Program System Select a trunked system Edit Site Select a site Delete Site Confirm Delete? Yes=”E” / No= ”.” Important: Deleted sites cannot be restored. You must re-enter them. Programming Channel Groups MECL Setting Up a Channel Group...

  • Page 78: Setting The Group Quick Key

    UB356ZH.fm Page 78 Wednesday, December 19, 2007 11:28 AM • The group and system (for conventional, SCAT, and LTR systems) or site (for Motorola and EDACS systems) name alternate in the top line of the display when the scanner stops on a channel. •...

  • Page 79: Deleting Channel Groups

    UB356ZH.fm Page 79 Wednesday, December 19, 2007 11:28 AM Deleting Channel Groups MECL [MENU] Program System Select a system Edit Group Select a channel group Delete Group Confirm Delete? Yes=”E” / No= ”.” Important: Deleted channel groups cannot be restored. You must re-enter them. Programming Channels MECL Creating a Channel...

  • Page 80: Editing Frequencies

    UB356ZH.fm Page 80 Wednesday, December 19, 2007 11:28 AM 4. Repeat the Scroll Control action to change the character. To move one character to the left, press [4]. Press [.No] twice to delete the current character. Press [.No] three times to clear the entire alpha tag. 5.

  • Page 81: Selecting Ctcss/Dcs Tones

    UB356ZH.fm Page 81 Wednesday, December 19, 2007 11:28 AM Selecting CTCSS/DCS Tones To program a channel with a CTCSS or DCS setting, your conventional system audio must be set to Analog Only first. [MENU] Program System Select the system Edit Group Select the channel group Edit Channel Select the channel...

  • Page 82: Setting Channel Modulation Method

    UB356ZH.fm Page 82 Wednesday, December 19, 2007 11:28 AM Setting Channel Modulation Method [MENU] Program System Select the conventional system Edit Group Select a channel group Edit Channel Select the Channel Set Modulation Auto — the scanner uses the default modulation for the channel. The default setting is Auto.

  • Page 83: Setting Channel Priority

    UB356ZH.fm Page 83 Wednesday, December 19, 2007 11:28 AM Setting Channel Priority [MENU] Program System Select a conventional system Edit Group Select a channel group Edit Channel Select the channel Set Priority This setting controls whether the scanner treats the channel as a priority channel while scanning.

  • Page 84: Setting Channel Record

    UB356ZH.fm Page 84 Wednesday, December 19, 2007 11:28 AM Setting Channel Record MECL [MENU] Program System Select a system Edit Group Select a channel group Edit Channel Select a channel Set Record On — the scanner outputs the signal. Off — the scanner does not output any audio. Note: In order for the function to work, you must set the channel to record.
  • Page 85 UB356ZH.fm Page 85 Wednesday, December 19, 2007 11:28 AM Select a channel Copy Channel You see Copy Channel Copied to Buffer. Press [MENU] to return to one level before You see Paste Channel as the last list item. At this point you can paste that channel information to another group or compatible system.

  • Page 86: Searching And Storing

    UB356ZH.fm Page 86 Wednesday, December 19, 2007 11:28 AM Searching and Storing Service Search Service Search lets you select and search the scanner’s preprogrammed search ranges. During service search, the scanner searches starting with the lowest frequency in the search range you select to the highest frequency in the range. There are three ways to do this.

  • Page 87: Quick Search

    UB356ZH.fm Page 87 Wednesday, December 19, 2007 11:28 AM Notes: • If all frequencies in the search range you selected are locked out, All Locked! appears and the scanner does not search the range. • If the service range you select uses channels (such as CB Radio or Marine), the scanner displays the service channel number.

  • Page 88: Editing A Custom Search Range

    UB356ZH.fm Page 88 Wednesday, December 19, 2007 11:28 AM Notes: • Search ranges are preset. These ranges can be edited. See “Editing a Custom Search Range” on Page 88 to change the range. • You cannot turn off all custom search ranges. [MENU] Search for ...
  • Page 89 UB356ZH.fm Page 89 Wednesday, December 19, 2007 11:28 AM Another approach is + [SCAN/SEARCH] Quick Search? Yes=”E” / No=”.” Press [.No] then to Edit Custom At this point you can edit each of the settings that comprise a custom search. Edit Name —...

  • Page 90: Search With Scan

    Search With Scan When you press [SCAN/SEARCH] the UBC800XLT starts a scan of those sites, channels, etc you have manually programmed or the Uniden preprogrammed data for your metropolitan area that are unlocked and have their System Quick key enabled.

  • Page 91: Set Delay Time

    UB356ZH.fm Page 91 Wednesday, December 19, 2007 11:28 AM [MENU] Search for ... Edit Service Select a service range: Set Delay Time Choose a delay time to set how long the scanner stays on a transmission after it ends. to select a value from 1 sec, 2 sec, 3 sec, 4 sec, 5 sec, and Off. Set Attenuator Choose to attenuate all frequencies by about 20 dB.

  • Page 92: Saving A Found Channel (Quick Save)

    UB356ZH.fm Page 92 Wednesday, December 19, 2007 11:28 AM The default settings are: SRCH 1: 25.000~87.2875MHz (Plan1) 25.000~87.2950MHz (Plan2) 25.000~87.2937MHz (Plan3) SRCH 2: 87.3000~107.950MHz SRCH 3: 108.000~136.9875MHz SRCH 4: 137.000~173.9900MHz (Plan1,2) 137.000~173.9937MHz (Plan3) SRCH 5: 174.000~215.9500MHz SRCH 6: 216.000~224.995MHz Saving a Found Channel (Quick Save) If you hold on a channel or receive a desired channel, you can save it by pressing ] instead of using Direct Entry.

  • Page 93: Trunked Search And Store

    UB356ZH.fm Page 93 Wednesday, December 19, 2007 11:28 AM Follow the steps in the preceding section but be sure to select a Conventional System. A search option appears that lets you choose from a Custom Search to the other service search ranges previously mentioned (Air, Marine…etc). Turn the Scroll Control until the search range you want appears, then press select it.

  • Page 94: Using The Close Call Feature

    UB356ZH.fm Page 94 Wednesday, December 19, 2007 11:28 AM Using the Close Call Feature Your scanner’s Close Call™ feature lets you set the scanner so it detects, displays the frequency and lets you hear a nearby strong radio transmission. You can set the scanner so the Close Call feature works “in the background”...
  • Page 95 UB356ZH.fm Page 95 Wednesday, December 19, 2007 11:28 AM CC Auto Store — Lets you select whether the scanner automatically stores Close Call hits into channels. If you turn this option on, the scanner starts Close Call mode and stores any Close Call hits, up to the maximum you specified in the Max Auto Store setting.

  • Page 96: Close Call Hits

    UB356ZH.fm Page 96 Wednesday, December 19, 2007 11:28 AM Infinite — The scanner stops and requires you to manually select another operation to enable its return. Set CC Bands — Lets you select the Close Call band settings. You can turn the following bands on or off.

  • Page 97: Close Call Hits With Scan

    UB356ZH.fm Page 97 Wednesday, December 19, 2007 11:28 AM Close Call Hits with Scan The scanner automatically stores and scans the last 10 Close Call hits received. You can assign a Quick Key to this special scan. This lets you continue to hear transmissions detected with the Close Call feature, even after you are no longer close enough to receive it as a Close Call hit.

  • Page 98: Search And Close Call Options

    UB356ZH.fm Page 98 Wednesday, December 19, 2007 11:28 AM Search and Close Call Options The settings in this section affect custom searches, service searches, and Close Call operation. The following table shows what options are available for various search modes. Service Custom Quick...

  • Page 99: Unlocking All Frequencies

    UB356ZH.fm Page 99 Wednesday, December 19, 2007 11:28 AM Unlocking All Frequencies [MENU] Srch/CloCall Opt Freq Lockouts Unlock All The scanner prompts you to confirm the change in lockout status. To confirm the change of all locked-out frequencies, press . If no frequencies are locked, you see Nothing Locked Press Any Key.

  • Page 100: Setting The Maximum Auto Store Value

    UB356ZH.fm Page 100 Wednesday, December 19, 2007 11:28 AM This setting determines whether the scanner automatically ignores transmissions found during Custom Search, Quick Search, or Close Call operation that are on common broadcasts, paging systems, and other annoyance radio sources. Note: Broadcast screening does not work in All service search ranges.

  • Page 101: Setting The Modulation Type

    UB356ZH.fm Page 101 Wednesday, December 19, 2007 11:28 AM Setting the Modulation Type This setting controls the modulation method used to receive frequencies during Quick Search and Close Call operations. In most cases, if you leave this set to Auto, the scanner automatically selects the correct modulation type for the system you are programming.

  • Page 102: Setting The Delay Time

    UB356ZH.fm Page 102 Wednesday, December 19, 2007 11:28 AM On — the scanner stops briefly on the channel, but then immediately resumes scanning automatically. Off — the scanner remains on the channel until the transmission stops. The default setting is Off. Note: If you are trying to test the Close Call feature with a nearby transmitter (such as a CB) and you do not talk into the transmitter, the scanner detects this unmodulated carrier as data and skips the frequency when Data Skip is on.

  • Page 103: Setting Air Band Step

    UB356ZH.fm Page 103 Wednesday, December 19, 2007 11:28 AM Setting Air Band Step [MENU] Srch/CloCall Opt Air Band Step Select Air Band Step 8.33kHz 12.5kHz Setting Record You can set the REC jack to provide an audio signal to a sound recording device (tape, PC, flash memory) for live recording of transmissions.
  • Page 104 UB356ZH.fm Page 104 Wednesday, December 19, 2007 11:28 AM Plus On — The scanner only scans priority channels in unlocked conventional systems. PRI flashes when you select this mode. 2. You can choose how the scanner treats Priority Channels using the Menu options.

  • Page 105: Fire Tone-Out

    UB356ZH.fm Page 105 Wednesday, December 19, 2007 11:28 AM Fire Tone-Out Your scanner can be set to respond to fire tone-outs, a system comprised of standardized two-tone sequential paging, short one-tone paging, and long group tone paging. You can save up to 10 settings. When you select a setting in standby mode, the scanner also monitors for any other setting that uses the same transmit frequency, modulation, and attenuation settings.
  • Page 106 UB356ZH.fm Page 106 Wednesday, December 19, 2007 11:28 AM • Edit Frequency — Enter the desired frequency that the scanner should monitor for the tone-out. • Set Modulation — Set the modulation type for the paging signal. Next choose the modulation setting: •...

  • Page 107: Tone-Out Multi-Channel Monitoring

    UB356ZH.fm Page 107 Wednesday, December 19, 2007 11:28 AM After you select an alert pattern, the scanner prompts for the alert level for a received alert. Level options 1 to 15 sets a fixed audio level independent of the main volume setting. AUTO uses the main volume setting for the alerts. Tone-Out Multi-Channel Monitoring The scanner can check multiple tone combination pages for channels whose settings are the same.

  • Page 108: Using The Ubc800Xlt With A Gps

    UB356ZH.fm Page 108 Wednesday, December 19, 2007 11:28 AM Using the UBC800XLT with a GPS The scanner lets you connect a compatible GPS device to it to provide two very convenient operation features: • automatically locks and unlocks systems and sites based on data you input.

  • Page 109: Location-Based (Gps) Scanning

    UB356ZH.fm Page 109 Wednesday, December 19, 2007 11:28 AM Location-Based (GPS) Scanning The UBC800XLT can make use of data transmitted from an attached GPS unit that lets the radio automatically enable and disable systems based on the geographic information you provide such as:...
  • Page 110 UB356ZH.fm Page 110 Wednesday, December 19, 2007 11:28 AM In general, an alert based on location is comprised of the following data: • Latitude • Longitude • Speed (optional setting) • Name (optional setting) • Alert Type and Sound level (optional setting) •...

  • Page 111: Setting The Options

    L/O status is automatically canceled. If you turn off the switch, the scanner is unlocked. Deleting a Location If you have programmed a location that you no longer want, you can delete it as follows. Using the UBC800XLT with a GPS...

  • Page 112: For Poi Only

    UB356ZH.fm Page 112 Wednesday, December 19, 2007 11:28 AM [MENU] Program Location Select a location such as Dangerous Xing Select Location to be deleted Delete Location Confirm Delete? Yes=”E” / No=”.” Make your choice to either delete the location or to cancel your action. For POI Only Choose Off so no tone sounds or one of the alert Set Alert Beep...

  • Page 113: Gps Review Location Mode

    However, if you are in Review Mode and press and hold [GPS], the data of the new point will overwrite the currently displayed data. The some of the following keys have a somewhat different function while in GPS Review Mode. Using the UBC800XLT with a GPS...
  • Page 114 UB356ZH.fm Page 114 Wednesday, December 19, 2007 11:28 AM [GPS] — Press and Hold: overwrites and stores current location data. [MENU] — returns to GPS Mode. [L/O] — changes the status of the currently displayed location data. [L/O] — press and hold to unlock all locations of the current type (POI, DXG, or DRD) Unlocked All TTTs? and Yes=”E”...

  • Page 115: Care And Maintenance

    Do not use excessive amounts of water. Repairs Do not attempt any repair. The scanner contains no user serviceable parts. Contact the Uniden Customer Service Center or take it to a qualified repair technician. Birdies All radios can receive “birdies” or undesired signals. If your scanner stops during Scan mode and no sound is heard, it might be receiving a birdie.

  • Page 116: Troubleshooting

    UB356ZH.fm Page 116 Wednesday, December 19, 2007 11:28 AM Troubleshooting If your UBC800XLT is not performing properly, try these steps. Problem Possible Cause Suggestion The scanner doesn’t The scanner might not be Make sure the AC adapter is connected to work.
  • Page 117 UB356ZH.fm Page 117 Wednesday, December 19, 2007 11:28 AM Problem Possible Cause Suggestion Scan won’t start. You must press Press [SCAN/SEARCH]. [SCAN/SEARCH] to scan. The squelch might need to be Adjust the squelch threshold. See “Turning adjusted. On the Scanner and Setting the Squelch” on Page 43.
  • Page 118 UB356ZH.fm Page 118 Wednesday, December 19, 2007 11:28 AM Problem Possible Cause Suggestion Missing replies to The scanner might need to be Change to a Type 1 scanner setup. See conversations. changed to a Type 1 scanner the programming instructions on the web setup.

  • Page 119: Other Specifications

    UB356ZH.fm Page 119 Wednesday, December 19, 2007 11:28 AM Other Specifications ANT. Jack BNC Type Phone Jack 3.5mm (Stereo Type) Ext. SP Jack 3.5mm (mono Type) REC. Output Jack 3.5mm (Stereo Type) DC Power Jack 5.5mm (Center Positive) Remote Interface Jack 4pin Mini Type GPS Interface Jack D-sub 9 pin (Male Wire)

  • Page 120: Reference

    UB356ZH.fm Page 120 Wednesday, December 19, 2007 11:28 AM Reference Preset Fleet Maps Note: Size Codes in parenthesis indicates that the Size Code spans more than one block. Preset Map 1 Preset Map 2 Block Size Code Block Size Code Size Code 11 Size Code 4 Size Code 11...
  • Page 121 UB356ZH.fm Page 121 Wednesday, December 19, 2007 11:28 AM Preset Map 7 Preset Map 8 Block Size Code Block Size Code Size Code 10 Size Code 1 Size Code 10 Size Code 1 Size Code 11 Size Code 2 Size Code 4 Size Code 2 Size Code 4 Size Code 3...

  • Page 122: User Defined Fleet Maps

    UB356ZH.fm Page 122 Wednesday, December 19, 2007 11:28 AM Preset Map 15 Preset Map 16 Block Size Code Block Size Code Size Code 4 Size Code 3 Size Code 4 Size Code 10 Size Code 4 Size Code 10 Size Code 11 Size Code 11 Size Code 11 Size Code 0...

  • Page 123: Size Code Restrictions

    UB356ZH.fm Page 123 Wednesday, December 19, 2007 11:28 AM seems. Select a size code for a block, and then press Scan. Now listen to the communications. If you decide you are receiving most of the replies to the conversations with ID’s assigned to the block you just programmed, then you’ve probably selected the right size code and can work on the next block of the map.

  • Page 124: Ctcss Frequencies

    UB356ZH.fm Page 124 Wednesday, December 19, 2007 11:28 AM CTCSS Frequencies 67.0 69.3 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7 159.8 162.2 165.5 167.9 171.3 173.8...

  • Page 125: Appendix

    UB356ZH.fm Page 125 Wednesday, December 19, 2007 11:28 AM Appendix SERVICE SEARCH RANGES The modulation for the service search frequencies depends on selected band plan except for the CB FM Radio and CB AM Radio service search. 108.000 MHz to 136.9875 MHz (12.5 KHz STEP) 108.000 MHz to 136.9916 MHz (8.33 KHz STEP) Marine 90 frequencies.

  • Page 126: Cb Am Radio

    UB356ZH.fm Page 126 Wednesday, December 19, 2007 11:28 AM 160.8750 156.8250 157.1750 156.3250 156.8750 161.7750 160.9250 156.9250 157.2250 156.3750 161.5250 161.8250 156.4250 156.9750 157.2750 156.4750 161.5750 161.8750 156.5250 157.0250 157.3250 156.5750 161.6250 161.9250 156.6250 157.0750 157.3750 156.6750 161.6750 157.4250 156.7250 157.1250 156.7750 161.7250...
  • Page 127 UB356ZH.fm Page 127 Wednesday, December 19, 2007 11:28 AM Band C 27.4750 26.8950 27.4850 CH No. Frequency 26.9050 27.5050 26.5150 26.9150 27.5150 26.5250 26.9250 27.5250 26.5350 26.9350 27.5350 26.5550 26.9450 27.5550 26.5650 26.9550 27.5650 26.5750 Band D 27.5750 26.5850 CH No. Frequency 27.5850 26.6050...
  • Page 128 UB356ZH.fm Page 128 Wednesday, December 19, 2007 11:28 AM 28.1750 26.3050 28.4650 28.1850 26.3150 28.4750 28.1950 26.3250 28.4850 28.2050 26.3550 28.5050 28.2150 26.3350 28.5150 28.2250 26.3450 28.5250 28.2350 26.3650 28.5350 28.2450 26.3750 28.5550 28.2550 26.3850 28.5650 28.2650 26.3950 28.5750 28.2750 26.4050 28.6050 28.2850...
  • Page 129 UB356ZH.fm Page 129 Wednesday, December 19, 2007 11:28 AM Band H 25.6750 29.1450 25.6850 CH No. Frequency 29.1550 25.7050 28.7650 29.1650 25.7150 28.7750 29.1750 25.7250 28.7850 29.1850 25.7350 28.8050 29.1950 25.7550 28.8150 29.2050 25.7650 28.8250 Band I 25.7750 28.8350 CH No. Frequency 25.7850 28.8550...
  • Page 130 UB356ZH.fm Page 130 Wednesday, December 19, 2007 11:28 AM 29.5250 29.9050 26.6850 29.5350 29.9150 26.6950 29.5450 29.9250 26.7050 29.5550 29.9550 26.7150 29.5650 29.9350 26.7250 29.5750 29.9450 26.7350 29.5850 29.9650 26.7450 29.5950 29.9750 26.7550 29.6050 29.9850 26.7650 29.6150 29.9950 26.7750 29.6250 30.0050 26.7850 29.6350...
  • Page 131 UB356ZH.fm Page 131 Wednesday, December 19, 2007 11:28 AM POLAND 27.65125 27.3400 27.66125 CH No. Frequency 27.3500 27.67125 26.9600 27.3600 27.68125 26.9700 27.3700 27.69125 26.9800 27.3800 27.70125 27.0000 27.3900 27.71125 27.0100 27.4000 27.72125 27.0200 27.73125 27.0300 27.74125 27.0500 27.75125 27.0600 27.76125 27.0700 27.77125...

  • Page 132: Cb Fm Radio

    UB356ZH.fm Page 132 Wednesday, December 19, 2007 11:28 AM CB FM Radio 520 frequencies. The unit of frequencies is MHz. The “CH No.” shows CB FM Radio channel numbers. Band A 27.3050 27.6250 CH No. Frequency 27.3150 27.6350 26.9650 27.3250 27.6550 26.9750 27.3350...
  • Page 133 UB356ZH.fm Page 133 Wednesday, December 19, 2007 11:28 AM Band D 26.5750 28.2450 26.5850 CH No. Frequency 28.2550 26.6050 27.8650 28.2650 26.6150 27.8750 28.2750 26.6250 27.8850 28.2850 26.6350 27.9050 28.2950 26.6550 27.9150 28.3050 26.6650 27.9250 Band E 26.6750 27.9350 CH No. Frequency 26.6850 27.9550...
  • Page 134 UB356ZH.fm Page 134 Wednesday, December 19, 2007 11:28 AM 26.3750 28.5550 25.7650 26.3850 28.5650 25.7750 26.3950 28.5750 25.7850 26.4050 28.6050 25.8050 26.4150 28.5850 25.8150 26.4250 28.5950 25.8250 26.4350 28.6150 25.8350 26.4450 28.6250 25.8550 26.4550 28.6350 25.8650 26.4650 28.6450 25.8750 26.4750 28.6550 25.9050 26.4850...
  • Page 135 UB356ZH.fm Page 135 Wednesday, December 19, 2007 11:28 AM Band I 28.8250 29.5950 28.8350 CH No. Frequency 29.6050 28.8550 29.2150 29.6150 28.8650 29.2250 29.6250 28.8750 29.2350 29.6350 28.8850 29.2550 29.6450 28.9050 29.2650 29.6550 28.9150 29.2750 Band J 28.9250 29.2850 CH No. Frequency 28.9350 29.3050...
  • Page 136 UB356ZH.fm Page 136 Wednesday, December 19, 2007 11:28 AM 29.9750 26.7550 27.72125 29.9850 26.7650 27.73125 29.9950 26.7750 27.74125 30.0050 26.7850 27.75125 30.0150 26.7950 27.76125 30.0250 26.8050 27.77125 30.0350 26.8150 27.78125 30.0450 26.8250 27.79125 30.0550 26.8350 27.80125 30.0650 26.8450 27.81125 30.0750 26.8550 27.82125 30.0850...

  • Page 137: Pmr

    UB356ZH.fm Page 137 Wednesday, December 19, 2007 11:28 AM 27.0200 27.1700 27.3000 27.0300 27.1800 27.3100 27.0500 27.2000 27.3200 27.0600 27.2100 27.3300 27.0700 27.2200 27.3400 27.0800 27.2500 27.3500 27.1000 27.2300 27.3600 27.1100 27.2400 27.3700 27.1200 27.2600 27.3800 27.1300 27.2700 27.3900 27.1500 27.2800 27.4000 27.1600...

  • Page 138: Lpd

    UB356ZH.fm Page 138 Wednesday, December 19, 2007 11:28 AM 69 frequencies. The unit of frequencies is MHz. The “CH No.” shows LPD channel numbers. 433.825 434.600 CH No. Frequency 433.850 434.625 433.075 433.875 434.650 433.100 433.900 434.675 433.125 433.925 434.700 433.150 433.950 434.725...

  • Page 139: Index

    UB356ZH.fm Page 139 Wednesday, December 19, 2007 11:28 AM Index Display Mode 49 Editing 70 Alert 68 Found, Saving 92 Channel 14 Group 16 Custom 14 Group Name 42 Dangerous Xing-Road 112 Holding 47 Duplicate Frequency 14 Lock/Unlock 46 Emergency 68 Lockout 13 GPS 15 Logical Number 24...
  • Page 140 UB356ZH.fm Page 140 Wednesday, December 19, 2007 11:28 AM Display Indicator 42 Custom Search Range 88 Frequencies 124 Frequencies 80 Quick Save 81 Service Search 90 Selecting 81 Sites 70 What is 20 System Quick Key 64 Talk Group ID 80 End Code 68 Dangerous Deleting Location 112...
  • Page 141 UB356ZH.fm Page 141 Wednesday, December 19, 2007 11:28 AM Setting 84 Fleet Maps 120 Sites 74 Search Ranges 88 Systems 65 Display 78 Range ID 25 All 112 LCN 73 Display 114 Scan Time 75 Edit 88 Site Limit 71 GPS 15 Trunking 25 Search 20...
  • Page 142 UB356ZH.fm Page 142 Wednesday, December 19, 2007 11:28 AM Range 43 Reviewing ID Lockouts 70 Scan Delay 14 Service 86 Store ID 47 Trunked and Store 93 What Is 20 Squelch 13 Subfleet 24 subfleet 24...

  • Page 143: Declaration Of Conformity

    Chuo-Ku, Tokyo 104-8512 Japan declare, under our sole responsibility, that this equipment “Uniden Bearcat model UBC800XLT” is in compliance with the essential requirements and other relevant provisions of the EMC, R&TTE and LVD Council Directives of the EU. Declaration of Conformity...
  • Page 144 UB356ZH.fm Page 144 Wednesday, December 19, 2007 11:28 AM © 2008 Uniden Corporation. All rights reserved. UBZZ01356ZZ(0) Printed in P.R.C.

Table of Contents
