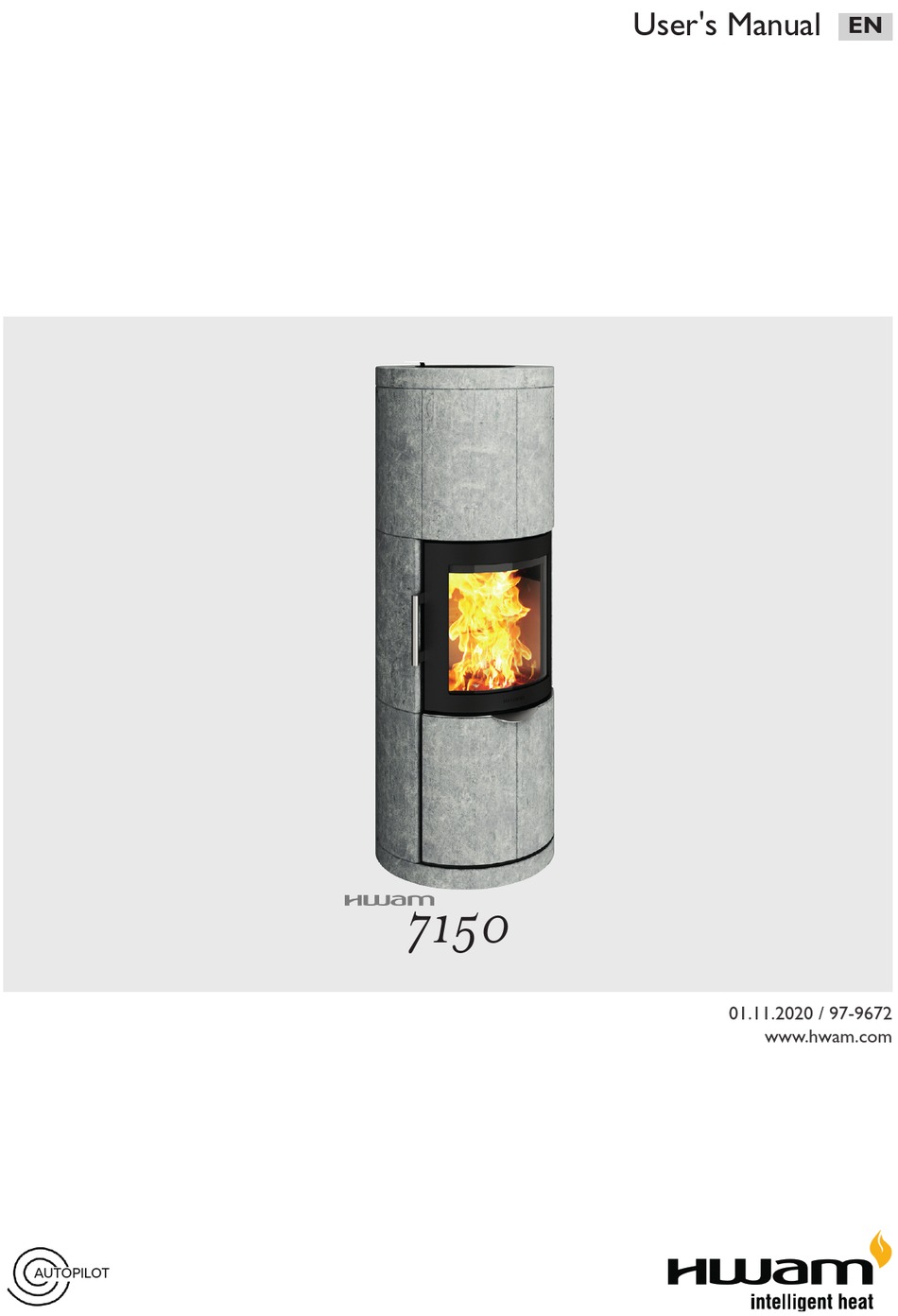

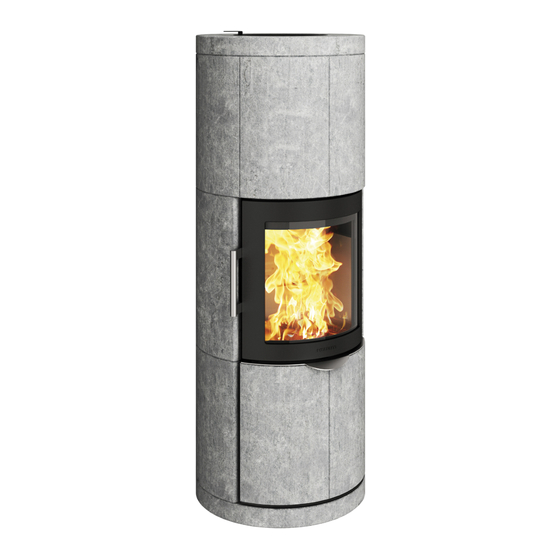

- Page 1 User's Manual 7150 01.11.2020 / 97-9672 www.hwam.com AUTOPILOT...
-
Page 3: Table Of Contents
Table of contents Drawings ........... .4-7 Installation . -
Page 4: Drawings
45˚ Page 4 of 20 pages... - Page 5 Page 5 of 20 pages...
- Page 6 Page 6 of 20 pages...
- Page 7 Page 7 of 20 pages...
-
Page 8: Installation
In general Congratulations on your new HWAM woodburning stove. We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. - Page 9 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
- Page 10 • Built-in pipe sleeve (12). Fits smoke flue. • Wall rosette (13). Covers disruption to wall around pipe sleeve. • Joint (14). Sealed with gasket. • Smoke outlets (15) of the HWAM stove. • Smoke flue regulating damper (16). • Soot door (17).
-
Page 11: Firing Manual - Wood
IrIng manual wood Your first heating session The lacquer will be fully hardened after the stove has been used, and the door and the ashpan should be opened very carefully as there will otherwise be a risk that the gaskets will stick to the lacquer. In addi- tion the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated. - Page 12 The stove can then be stoked again. Important! The ash pit must not be opened when lighting up. It must always be closed when the stove is in use. Otherwise the HWAM Autopilot™ does not function. The door should only be opened when ®...
- Page 13 the stove burn slower. Turning to maximum (clockwise) will increase the rate of combustion and make the stove burn faster. Wait until the layer of embers is suitably low before stoking again. During combustion, the outer surfaces of the stove will become hot, and due care must therefore be shown.
-
Page 14: Firing In General
Insufficient firing If the fireproof materials in the combustion chamber are blackened after a fire, then the stove is polluting, and the HWAM Autopilot™ is malfunctioning. Therefore, more air must be supplied by turning the air ®... -
Page 15: Maintenance
All service checks must be performed by an authorised fitter. Use only original spare parts. Inside cleaning Before chimney sweeping can be performed, the air control knob must be set to its minimum position to prevent soot and ash from entering the HWAM ® Autopilot™. Unless the safety fittings for transportation have not already been removed, twist the safety fittings for transportation off the two hooks by using pliers or a screwdriver. - Page 16 Start with the uppermost slab, two slabs in all for HWAM 7150 and three slabs for HWAM 7180. Please be careful; the stone slabs are quite heavy. If the stove has rear outlet, lift off the convection grate (1) and both top plates (2 + 3). Lift off the slabs (4) on the front left-hand side of the stove by first lifting the slabs and then removing them.
-
Page 17: Operational Problems
peratIonal problems Blackened glass • The wood is too damp. Only use wood stored for at least 12 months under cover and with a moisture level not exceeding 18% RH. • Faulty seal in door. Fit new seal. Smoke in the room when opening door •... -
Page 18: Declaration Of Performance
The DoP can be downloaded from our website via the following links: www.hwam.com/dop/7150 Page 18 of 20 pages... -
Page 19: Product Information Ecodesign
• Always dispose of items in a way that is as sustainable as possible and that is in line with the current environmental protection, reprocessing/recycling and disposal technology HWAM A/S • Nydamsvej 53 • DK-8362 Hørning Page 19 of 20 pages... - Page 20 www.hwam.com...
