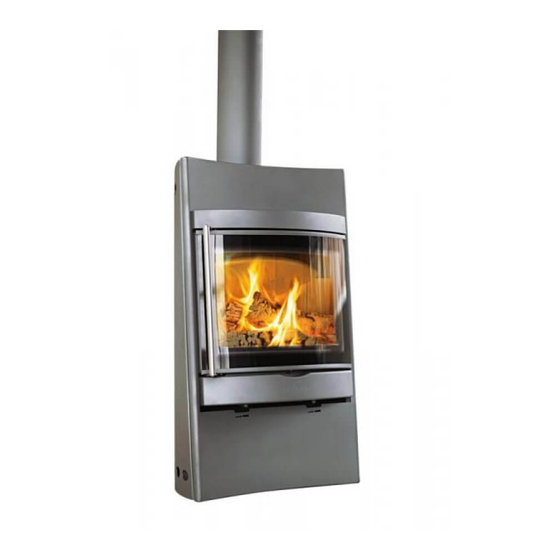

HWAM Figaro Operating Instructions Manual
Hide thumbs
Also See for Figaro:
- Installation, commissioning and maintenance instructions (22 pages) ,
- User manual (36 pages) ,
- Installation and user manual (52 pages)
Table of Contents
Advertisement
This Manual Must Always be Available to the Stove Operator
© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Nov 2006
Lighting, Operating and
Maintenance Instructions
For Wood and Multifuel Stoves
Figaro
Vivaldi
Monet
Mozart
Hwam 30
Hwam 60
Beethoven
Ravel
Dali
Part No.
Model Name
Serial Number
1
E & OE
Instructions Part number IN1141 Ed B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HWAM Figaro
Summary of Contents for HWAM Figaro
- Page 1 Lighting, Operating and Maintenance Instructions For Wood and Multifuel Stoves Figaro Vivaldi Monet Mozart Hwam 30 Hwam 60 Beethoven Ravel Dali This Manual Must Always be Available to the Stove Operator Part No. Model Name Serial Number E & OE Instructions Part number IN1141 Ed B ©...
- Page 2 The Hwam models Beethoven, Vivaldi, Mozart, Ravel and Hwam 30 are considered as exempt for use in smoke control areas if they have been modified to ensure the air wash/secondary air control cannot be fully closed. If this modification has not been carried out by the manufacturer or Distributor then the appliance is not considered exempt under the Clean Air Act.
-
Page 3: The Model Range Explained
Our aims are to produce stoves with the latest innovations, user friendly operation and high efficiency for lower cost operation. This operation manual offers user information for the range of Figaro, Vivaldi, Monet, Mozart, Hwam 30, Hwam 60, Beethoven, Ravel and Dali. - Page 4 Multifuel And Wood Stoves Gas and oil are consistent fuels and stoves can be designed to obtain the maximum heat from them with the user having to do no more than choose a heat setting. Solid fuels are almost infinitely variable and however well a stove has been designed, its performance will ultimately depend on the way the user operates it.
-
Page 5: Choice Of Fuels
Smoke control area`s The Hwam models Beethoven, Vivaldi, Mozart, Ravel and Hwam 30 are only considered suitable for exemption under the Clean Air Act when burning untreated dry wood. The appliance should only be used to burn wood or authorised fuels. - Page 6 Choice Of Logs Never burn wood that is not dry or wood that has been subject to a manufacturing process, such as chipboard, as these contain resins of uncertain toxicity when burned. For the same reasons, wood that has been painted or treated with a preservative should never be burned.
-
Page 7: Stove Controls
Stove Controls Burn Rate Control The rate at which the stove burns is controlled by adjusting the air entering the stove. Moving the control from minimum to maximum increases the size of the air inlets, primary or secondary air, in the automatic combustion system. - Page 8 Once the stove has reached its operating temperature the control should be set in its mid position. Control for the Beethoven, Beethoven H, Mozart, Ravel, Vivaldi & Hwam 30 Control for the Monet, Monet H, Dali & Hwam 60 Riddling Rod The rod is pulled out and pushed in to oscillate the grate, so shaking ashes into the ash pan below.
-
Page 9: Grate Cover Plate
Grate Cover Plate Your HWAM stove is supplied with a loose cover plate for the riddling grate. This is a 3 mm thick steel plate. It is placed on top of the riddling grate and prevents the embers from falling into the ash pan. The cover plate is raised approx. -
Page 10: First Lighting Of The Stove
First Lighting of the Stove When you light the stove for the first few times it should be with small fires increasing in size, as all the materials must be given time to adapt to the effects of heat. The paint on the body of the stove will be fully hardened after the stove has been cured, however the door and the ash pan should be opened very carefully before this as there will otherwise be a risk that the gaskets will stick to the paint. -
Page 11: General Lighting And Operation
General Lighting and Operation Lightly crumple two tabloid sized pieces of newspaper and lay them in the middle of the grate. Resist the temptation to use more paper than this, or to crumple it too tightly; doing either will prevent the rapid development of flames and will cause smoke to be produced. - Page 12 Wearing the stove glove place a few logs larger than kindling wood over, but not smothering the kindling. When the previous loading of wood is burning brightly add two larger split logs to bridge the fire. Always avoid putting wood directly onto wood burning with flame, try and leave air space under the wood for the flame to form, because the new, cold log will tend to cool the fire.
-
Page 13: Air Inlet Controls
Lighting and Operation of the Beethoven, Beethoven H, Monet, Monet H, Mozart, Ravel, Vivaldi, Hwam 30 & Hwam 60 Air inlet controls Monet, Monet H, Dali & Hwam 60 Diagram Diagram Beethoven, Beethoven H, Mozart, Ravel,Vivaldi & Hwam 30 Diagram... - Page 14 Continuous Operation (Diagrams A2) When the kindling is burning at its maximum rate, and a bed of embers has been formed, you can reload the stove with dry seasoned split logs. A bed of embers is when all the bottom is covered, and the embers glow in a ring around the riddling grate. Place at least two logs in the stove.
-
Page 15: Continuous Operation
Lighting and Operation of the Figaro Air inlet controls Lighting (Diagram E1) The control knob (1) should be pushed to the far right (max. primary air). Lay about 2-3 logs worth of split kindling sticks in the stove. Place 2 pieces of firelighter amongst the upper layer of kindling. Light these and allow the fire to spread gradually. -
Page 16: Ash Removal
General Maintenance of the Stove Ash Removal The ash pan should NOT be removed and emptied when the stove is operating. Removal of the ash pan when the stove is lit will allow unregulated air to enter the stove which can damage the automatic combustion control system. - Page 17 Maintenance of Soapstone What is soapstone? Soapstone is a natural material, a natural stone, which absorbs and stores heat effectively. The result is that the heat from the stove is given off over a longer period of time. There are different types of soapstone. The type is determined by the composition of minerals of the stone e.g. talcum powder, magnesium and chloride.
-
Page 18: Other Maintenance
It is important that all the stove seals are replaced when any signs of wear are apparent or they become degraded and that only parts approved by Hwam/Euroheat are fitted, these may be obtained from local retailer or directly from Euroheat. -
Page 19: Operational Problems
25%. Insufficient intake of secondary air for the glass air wash. Open sliding damper under the door (Monet, Monet H, Dali and HWAM 60) or in the door (Beethoven, Beethoven H, Ravel, Vivaldi, Mozart and HWAM 30). Smoke in the room when opening door Open the door slowly, a few millimetres at first, then gradually to allow the pressure changes within the stove to equal out. -
Page 20: The Door Will Not Open
The combustion chamber lining has cracked or broken The fireproof Skamolex lining in the combustion chamber is made of vermiculite, which is a specially manufactured material that can withstand very high temperatures and also provides efficient insulation and thereby ensures the optimum temperature and combustion in the combustion chamber. -
Page 21: Spare Parts
Smoke plate* HW22-0464 Beethoven Cover plate for grate HW22-0350 Beethoven H Grate and frame, round Ravel HW22-0742 (not Hwam 30) Hwam 30 Gasket set for door and ash pan HW22-0744 Gasket for glass HW22-0900 Hwam 30 Grate HW22-0143 Glass incl. gaskets... - Page 22 The information provided for the room heater fuelled by wood and Lignite (solid mineral fuel), has been measured as specified in EN13240:2001 and EN 13240-A2:2004. Hwam and Euroheat have a policy of continual research and development and reserve the right to modify its appliances without prior notice.
