Physical Description - Crestron CLS-EXP-DIM Specfications

CLS-EXP-DIM

Physical Description

This section provides information on the connectors,
controls, and indicators available on the CLS-EXP-DIM.

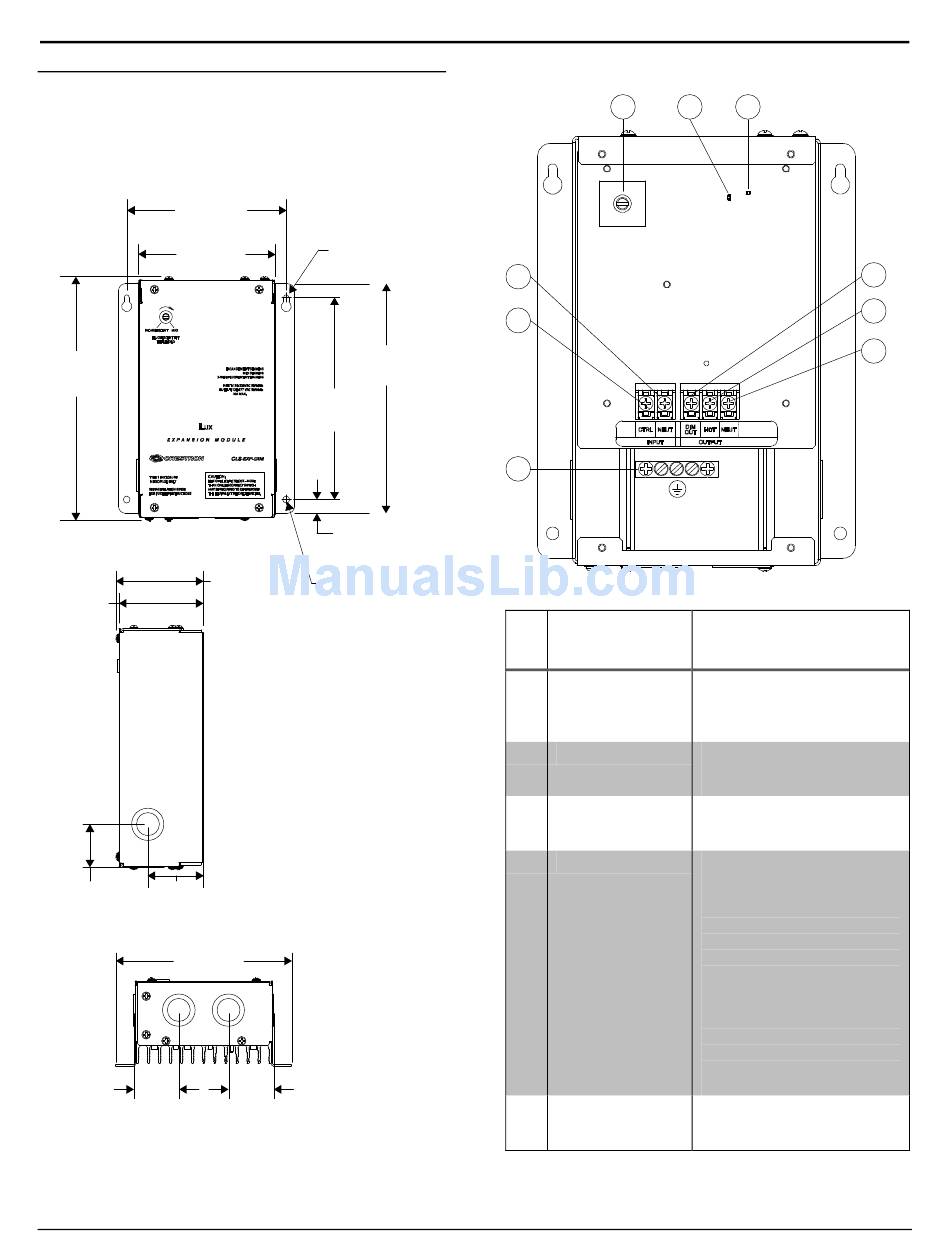

CLS-EXP-DIM Overall Dimensions
5 13/16 in
(147 mm)
5 in
(127 mm)
8 13/16 in
(224 mm)
3 3/16 in
(81 mm)
3 1/16 in
(78 mm)
1 9/16 in
2 in
(40 mm)
(51 mm)
6 3/8 in
(162 mm)
1 5/8 in
(42 mm)
4 • iLux Expansion Module: CLS-EXP-DIM
Ø 3/16 in
Ø (5 mm)
8 5/16 in
(211 mm)
7 5/16 in
(186 mm)
1/2 in
(13 mm)
Ø 1/4 in
Ø (7 mm)
1 5/8 in
(42 mm)
iLux Expansion Module
CLS-EXP-DIM (Cover Removed)
1
5
4
9
Connectors, Controls, and Indicators
# CONNECTORS,
CONTROLS, AND
INDICATORS
1 FLUORESCENT
OFF THRESHOLD
2 STATUS
3 POWER
4 INPUT–CTRL
5 INPUT–NEUT
(Continued on following page)
Installation Guide – DOC. 6638E
2 3
DESCRIPTION
(1) Recessed screwdriver-
adjustable trim pot behind
removable cap, adjusts
minimum brightness level
(1) Red LED behind front
panel, illuminates when load
output is on
(1) Green LED behind front
panel, indicates power is
applied to the HOT terminal
1
(1) Captive screw terminal
control input from CLS(I)-C6
2
Series, CLW-DIM Series ,
CLX(I)-DIM Series, GLX-DIM6,
GLXX-2DIM8, DIN-1DIM4, or
DIN-1DIMU4 dimmers;
Presents a 25 watt load to the
controlling dimmer;
A maximum of five
CLS-EXP-DIM modules may be
connected to the controlling
dimmer, which cannot be wired
to control any other loads
besides the CLS-EXP-DIM
modules
(1) Captive screw terminal,
neutral connection for control
input
6
7
8
,
