Crestron CLW-DIMS1RF Manual

Introduction
Features and Functions

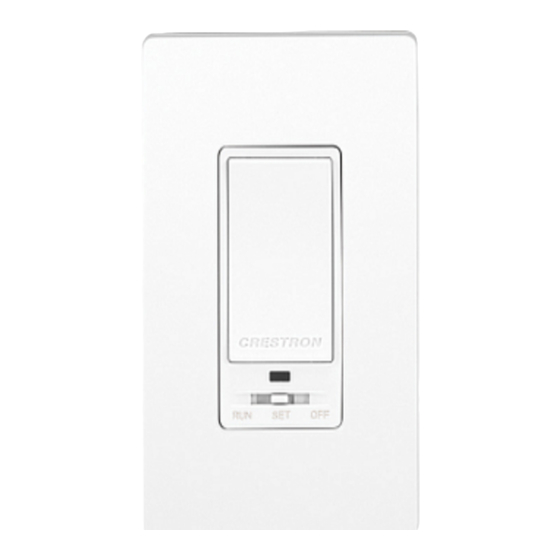

The CLW-DIM1RF (-DIM1RF) is a stand-alone wall box
dimmer that can also act as a wireless Cresnet
®
that reports to a Crestron
gateway such as the Crestron C2N-MNETGW. The CLW
-DIM1RF has two preset lighting levels that can be
adjusted (refer to note below). The CLW-DIM1RF
features an internal antenna for communication with
Crestron wireless switches using the 2.4 GHz ISM
frequency range.
NOTE: The two preset levels are noted as Preset 1-High
and Preset 1- Low. "Preset 1-High" is usually used for
turning lights on to full brightness while preset "Preset 1-
Low" is usually used for turning the lights off. Although
"Preset 1-High" and "Preset 1-Low" are usually used for
"On" and "Off" respectively, the light level for each
preset can be customized by the user. Refer to "Operating
Button and Switch" on page 4 for more information on
customizing light levels.
The CLW-DIM1RF features a three-position mode
selection switch. Refer to "Operating Button and Switch"
on page 5 for more information. In the absence of Cresnet
communications, the dimmer can still be used to control
lighting.
The CLW-DIMS1RF (-DIMS1RF) is similar to the -
DIM1RF with the added capability of working with a
slave unit (CLW-SLVD1RF) in a multi-switch / single
circuit application.
The CLW-SLVD1RF (-SLVD1RF) is a slave unit that
when used in conjunction with the -DIMS1RF acts as an
additional dimmer control point in a multi-dimmer /
single circuit application. It does not connect to a Cresnet
system and cannot be used without a -DIMS1RF. The
-SLVD1RF does not have a mode selection switch and is
not programmable. It emulates the operation of the
-DIMS1RF to which it is connected.
The -DIM1RF, -DIMS1RF, and -SLVD1RF are available
in white, almond, and black. White units are designated
by part numbers ending in "W". Almond units are
designated by part numbers ending in "A". Black units are
designated by part numbers ending in "B". Each dimmer
can be covered with a decorative faceplate (not supplied).
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)
®
device
control processor via a wireless
Specifications
Following are specifications for the -DIM1RF,
-DIMS1RF, and -SLVD1RF.
CLW-DIM1RF, CLW-DIMS1RF, & CLS-SLVD1RF
Specifications
SPECIFICATION
Power Requirements
Operating Frequency
Default RF ID
Switch Type
Load Type
2-Series Control System
1,2
Update File
3
Load Ratings
Incandescent/Tungsten
Halogen
4
Magnetic Low Voltage
Operating Temperature
and Humidity
Dimensions and Weight
1. The latest software versions can be obtained from the Crestron
website. Refer to the NOTE following these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2.
Consult the latest Crestron Product Catalog for a complete list of
2-Series control systems.
3. Refer to Derating Charts for Multigang Installations on page 3.
4. VA ratings are for input power to the transformer. If you do not
know the input power requirement of the transformer, use the
bulb's wattage rating to determine proper rating.
NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).
Installation Guide – DOC. 6292
DETAILS
Line Power, 120 VAC, 60 Hz
2.4 GHz ISM
-DIM1RF: 00
-DIMS1RF: 00
Dimmer
Incandescent, Tungsten-Halogen,
Magnetic Low Voltage
Version 3.117 or later
-DIM1RF: 1000W
-DIMS1RF: 1000W
-SLVD1RF: N/A
-DIM1RF: 1000VA/750W
-DIMS1RF: 1000VA/750W
-SLVD1RF: N/A
32°F to 104°F (0°C to 40°C)
10 to 90% Relative Humidity
(Non-Condensing)
-DIM1RF and -DIMS1RF:
Height: 4.13 in (10.48 cm)
Width: 2.38 in (6.03 cm)
Depth: 1.88 in (4.77 cm)
Weight: 4.9 oz (0.67 kg)
-SLVD1RF:
Height: 4.13 in (10.48 cm)
Width: 1.75 in (4.45 cm)
Depth: 1.88 in (4.77 cm)
Weight: 3.6 oz (0.50 kg)
02.05
Specifications subject to
change without notice.
