Crestron CLX-1DIM4 Specifications

CLX-1DIM4
4 Channel Dimmer Module, Single Feed
> 4 channels of dimming for incandescent, magnetic low-voltage,
neon/cold cathode, and dimmable 2-wire fluorescent loads
> Single 120 Volt feed
> Air-gap relays on every channel output
> Override preset capability
> Convection cooled
> Occupies 1 module space in a CAEN or CAEN-MLO
automation enclosure
> Easy termination using CLT-Series terminal block
As part of a complete Crestron lighting system, the CLX-1DIM4 lighting
control module provides 4 channels of dimming for incandescent,
magnetic low-voltage, neon/cold cathode, and dimmable 2-wire
fluorescent loads. Each channel is rated for 1920 Watts, with a total
module rating of 1920 Watts. Air-gap relays are provided on every channel
output allowing individual circuits to be serviced without disabling the
entire module.
CLX-Series dimmers are rigorously built using 40 Amp triacs and oversized
heat sinks for ultimate reliability. Split-bobbin transformers and ground
referenced electronics deliver superior performance. Lamp flicker is
minimized through Crestron's innovative zero-crossing detection technique
backed by proprietary firmware. Low-maintenance convection cooling
assures quiet and trouble-free operation.
An override feature allows each channel to be adjusted to a preset state
during setup. In the event that Cresnet communications should be
disrupted for any reason, a simple contact closure can be used to activate
the override presets on a global or semi-global basis.
The CLX-1DIM4 occupies a single module space in any
CAEN-MLO automation enclosure. Termination of high-voltage wiring to the
module is facilitated by a CLT-1DIM4
enable termination of the wiring any time prior to installing the module.
CLX modules are controlled by the
automation control systems via the Cresnet network. A 5-wire link provides
bussing of the Cresnet and override signals between modules within an
enclosure (interconnect jumpers included).

SPECIFICATIONS

Load Ratings
Dimmer Channels: 4
Per Channel: 16 Amps (1920 Watts)
Module Total: 16 Amps (1920 Watts)
Minimum Load: 25 Watts
Load Types: Incandescent, Magnetic Low-voltage, Neon/Cold Cathode,
Dimmable 2-Wire Fluorescent

Power Requirements

120 Volts AC, 50/60Hz, single-phase
|
crestron.com 800.237.2041
CAEN or
terminal block, sold separately to
PAC2 and PAC2M professional

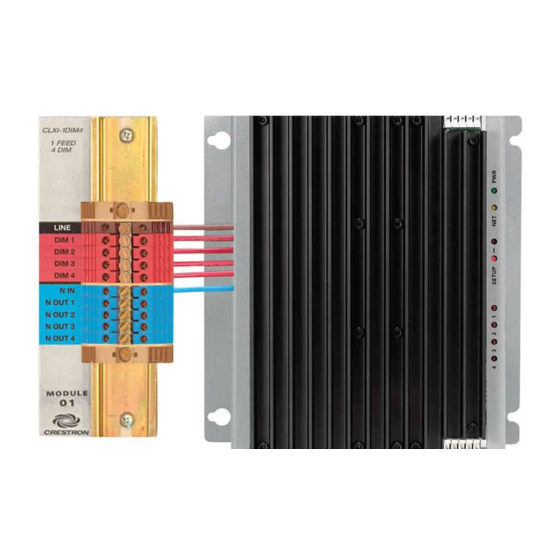

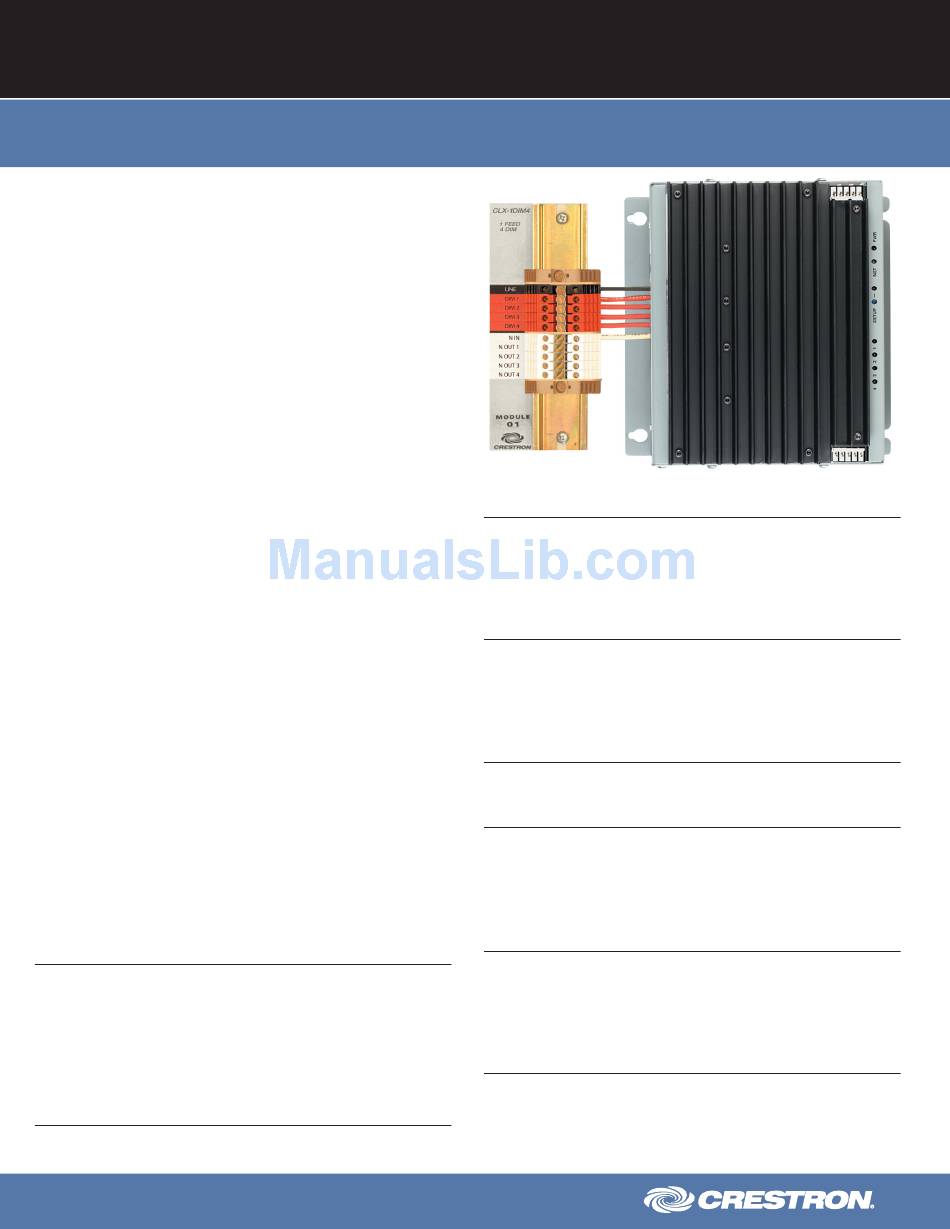

Shown with CLT-1DIM4 Terminal Block
Connectors on Module
Module Interconnect: (2) 5-pin 0.156 inch headers;
Cresnet/Override interconnect ports;
Connect to PAC2, PAC2M, CAEN-BLOCK, or adjacent CLX-Series module
using interconnect cable provided
Connections via CLT Terminal Block (sold separately)
LINE: (1) DIN rail terminal block, black, line power input
DIM 1 - 4: (4) DIN rail terminal blocks, red, channel outputs
N IN: (1) DIN rail terminal block, white, line input neutral
N OUT 1 - 4: (4) DIN rail terminal blocks, white, channel output neutrals
Buttons
SETUP: Used for manual channel activation and TSID
LED Indicators
PWR: (green) Indicates line power is applied to the LINE terminal
NET: (yellow) Indicates communication with the control system
1 – 4: (red x4) Indicates state of each channel
SETUP: (red) Indicates unit is in setup/manual mode
Environmental
Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 23 BTU/Hr + (4.7 BTU/Hr x Load Current in Amps), 98
BTU/Hr at maximum load
Enclosure
Gray metal with black heat sink, surface mount module with (2) integral
mounting flanges;
Occupies 1 module space in any CAEN or CAEN-MLO enclosure
