Crestron CLI-D120N
120 VAC
OR
277 VAC
(FACTORY
MODIFICATION)
TIGHTENING TORQUE
10-12 IN-LB
EACH CHANNEL LOAD NOT TO EXCEED 1920 WATTS
THIS PRODUCT USES SCR'S FOR SWITCHING THE LOADS.
ALTHOUGH THIS PRODUCT CAN BE USED IN NON-DIM MODE TO
SWITCH FLUORESCENT LAMPS ON AND OFF, CERTAIN ELECTRONIC
BALLASTS ARE NOT COMPATIBLE WITH SCR CONTROL. CHECK
WITH BALLAST MANUFACTURER FOR COMPATIBILITY.
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
20A BREAKERS
(SAME PHASE)
L
L
N.BUS
N.BUS
1
TO CRESNET

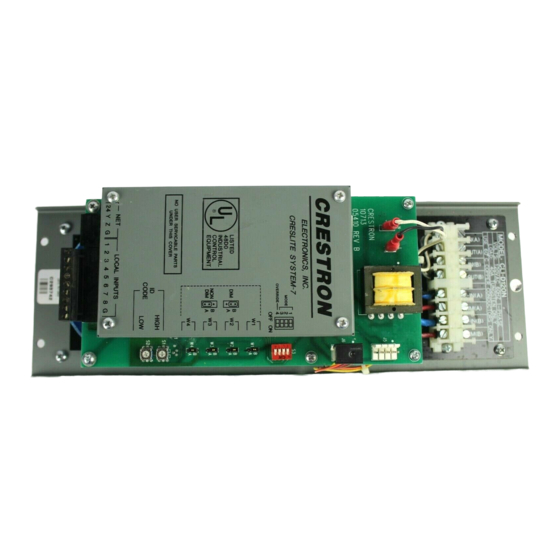

2-Channel Network Dimmer Module
2 3 4 5 6 7 8
CRESTRON
ELECTRONICS, INC.
CRESLITE SYSTEM-7
1
MODE 2
3
4
OVERRIDE
OFF ON
W1
B
LISTED DIM W2
A
48D0
INDUSTRIAL
CONTROL
B
R R
NON
W3
EQUIPMENT
DIM
A
W4
NO USER SERVICABLE PARTS
UNDER THIS COVER
HIGH
ID
CODE
LOW
NET LOCAL INPUTS
24 Y Z G 1 2 3 4 5 6 7 8 G
1 2 3 4 1 2 3 4 5 6 7 8 9
Specifications subject to change without notice.
N (A)
L (A)
TO LIGHTS
N (B)
L (B)
OVERRIDE & LOCAL
CONFIGURATION
SWITCHES
DIM / NON-DIM
CONFIG. JUMPERS
ID CODE
LOCAL INPUTS
DOC. 5578
www.crestron.com
01.04
