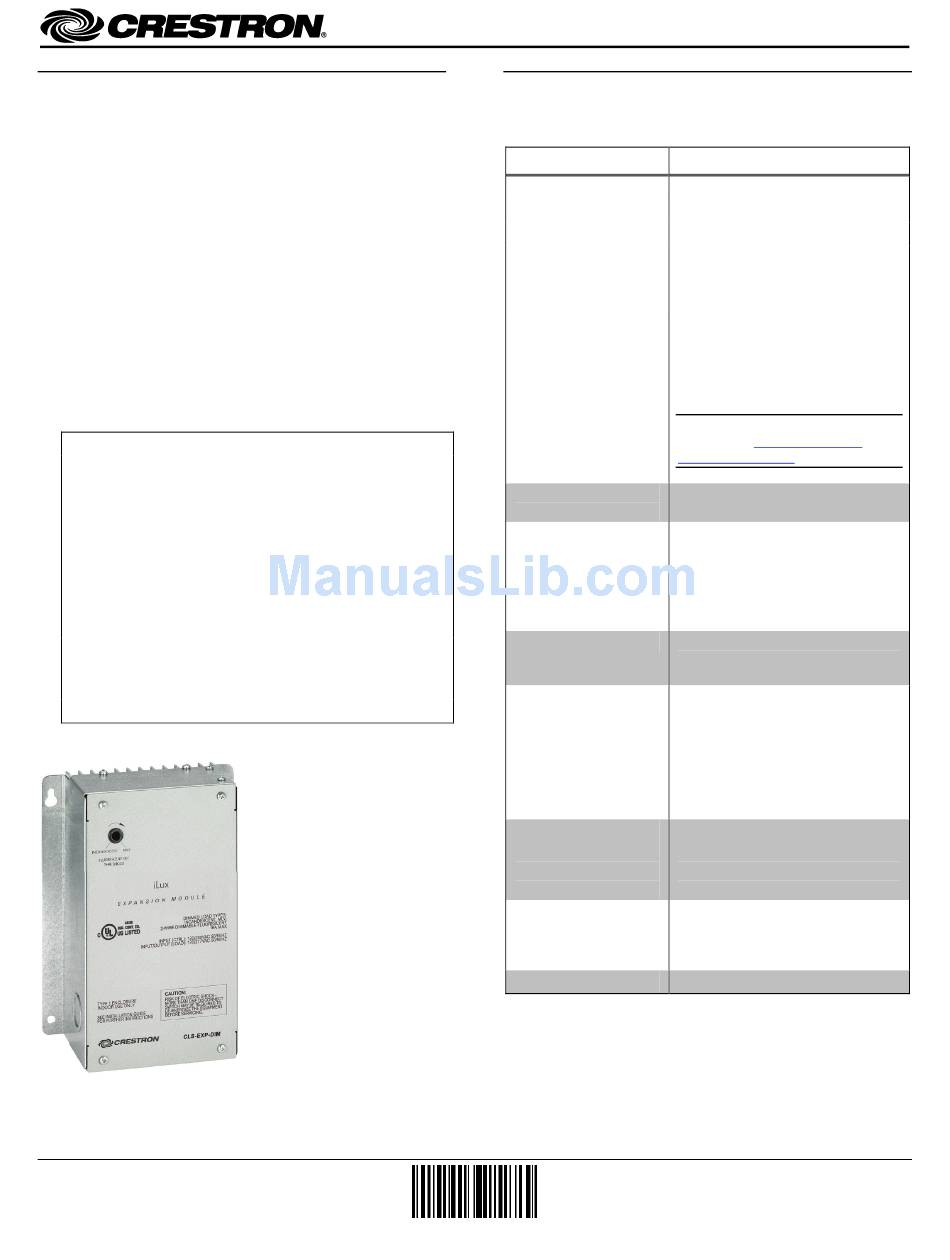

Crestron CLS-EXP-DIM Specfications

Functional Summary
The CLS-EXP-DIM enables the expansion of the
® ®
Crestron iLux integrated lighting system and other
Crestron lighting dimmers to support 120, 230, and 277
volt loads up to 16 amps. It allows any output channel of
a compatible dimmer to dim a fully loaded circuit of
incandescent, magnetic low-voltage, 2-wire dimmable
fluorescent, or neon/cold cathode lighting. It is also
compatible with CLW-Series
CLX-Series lighting control modules
The CLS-EXP-DIM is designed for mounting to a vertical
surface and can be installed in a space used for
environmental air as defined in NEC
Conduit knockouts are provided on the bottom and lower
sides. All connections are made via screw terminals
behind the front cover.
• Works with Crestron iLux (CLS(I)-C6), CLW
CLX Series, GLX-DIM6, and DIN-1DIMU4
dimmers
• Emulates the characteristics of the dimmer that is
controlling it
• Up to five expansion modules can be connected
to a single iLux dimmer channel
• Supports 120, 230, and 277 volt LED;
incandescent; NCC; MLV; and 2-wire dimmable
fluorescent loads
• Can be installed in an air-handling space
• Includes threshold adjustment for setting
minimum fluorescent dimming level
• Built-in air gap relay at the output

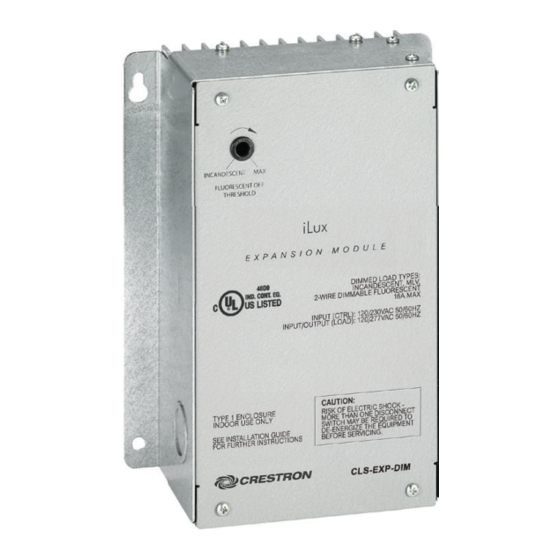

CLS-EXP-DIM Physical View
1. CLW-Series devices must have a dedicated neutral.
2. The CLS-EXP-DIM can only be controlled by forward-phase
dimmer modules. It is not compatible with the CLX(I)-1DELV4.
3. As defined in NEC Article 300.22(C).
Crestron Electronics, Inc.
15 Volvo Drive Rockleigh, NJ 07647
Tel: 888.CRESTRON
Fax: 201.767.7576
www.crestron.com
1
in-wall dimmers and most
2
.
®
Article 300.22(C).
1
3

Specifications

CLS-EXP-DIM Specifications
SPECIFICATION
Load Ratings
Dimmer Channels
Load Rating
Minimum Load
120 volts
230 volts
277 volts
Load Types
,
Maximum Modules per
Dimmer Output
Input Voltages
Line Power
Control Input
Electrical Terminals
Enclosure
Environmental
Temperature
Humidity
Heat Dissipation
Dimensions
Height
Width
Depth
Weight
(Continued on the following page)
CLS-EXP-DIM
DETAILS
1
16 amps
15 watts
25 watts
30 watts
LED, incandescent, neon/cold
cathode, magnetic low voltage,
2-wire dimmable fluorescent
(Advance Mark 10 Powerline
equivalent)
NOTE: For a list of compatible LED
ballasts, visit www.crestron.com/
lightingcompatibility (PDF).
5
120 to 277 volts ac, 50/60 Hz
120 or 230 volts ac, 50/60 Hz,
phase independent of line power
and load, presents 25 watt load to
the controlling device
Captive screw type; Accommodates
two 22–12 AWG (0.34–4.0 mm
wires
Surface mount module with (2)
integral mounting flanges,
galvanized steel with gray matte
powder coat front panel, extruded
aluminum heat sink, (4) 1/2 in and
3/4 in conduit knockouts provided
on bottom and lower left and right
sides
32° to 104°F (0° to 40°C)
10% to 90% RH (non-condensing)
140 Btu/h at maximum load, 16 A
8 13/16 in (224 mm)
6 3/8 in (163 mm)
3 3/16 in (81 mm)
3.34 lbs (1.52 kg)
Installation Guide – DOC. 6638E
(2019574)
Specifications subject to
change without notice.
®
or
2
)
01.14
