  • Page 1 Crestron Green Light ® DIN-1DIM4 DIN Rail 4-Channel Dimmer Operations & Installation Guide...
  • Page 2 This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. (E103692) As of the date of manufacture, the DIN-1DIM4 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

  • Page 3: Table Of Contents

    Crestron DIN-1DIM4 DIN Rail 4-Channel Dimmer Contents ® Crestron Green Light DIN Rail Four Channel Dimmer: DIN-1DIM4 Introduction ..........................1 Features and Functions ....................1 Applications......................... 3 Specifications ......................4 Physical Description....................6 Setup ............................11 Network Wiring......................11 Identity Code ......................11 Installation .........................

  • Page 5: Crestron Green Light Din Rail Four Channel Dimmer: Din-1Dim4

    DIN Rail Four Channel Dimmer: DIN-1DIM4 Introduction The DIN-1DIM4 is a DIN rail mounted lighting control module with four channels of dimming. A single model supports both 120 and 220-277 Volt electronic and magnetic low-voltage, incandescent, neon/cold cathode, 2-wire dimmable fluorescent, and non-dimmable lighting loads up to 5 Amps per channel, 10 Amps total.
  • Page 6 DIN Rail Installation The DIN-1DIM4 is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the bottom, clearly accessible from the front for easy installation and servicing.

  • Page 7: Applications

    Crestron DIN-1DIM4 DIN Rail 4-Channel Dimmer Applications The following diagram shows a DIN-1DIM4 in a typical application. DIN-1DIM4 in a Typical Application DIN Rail 4-Channel Dimmer: DIN-1DIM4 • 3 Operations & Installation Guide – DOC. 6928A...

  • Page 8: Specifications

    DIN Rail 4-Channel Dimmer Crestron DIN-1DIM4 Specifications Specifications for the DIN-1DIM4 are listed in the following table. DIN-1DIM4 Specifications SPECIFICATION DETAILS Load Ratings Dimmer Channels Maximum Per Channel 5 Amps @ 120-240 Volts AC, 50/60 Hz; 600 Watts @ 120 Volts AC;...
  • Page 9 60 mm (2.35 in) Weight 912 g (34 oz) 1. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes. 2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.

  • Page 10: Physical Description

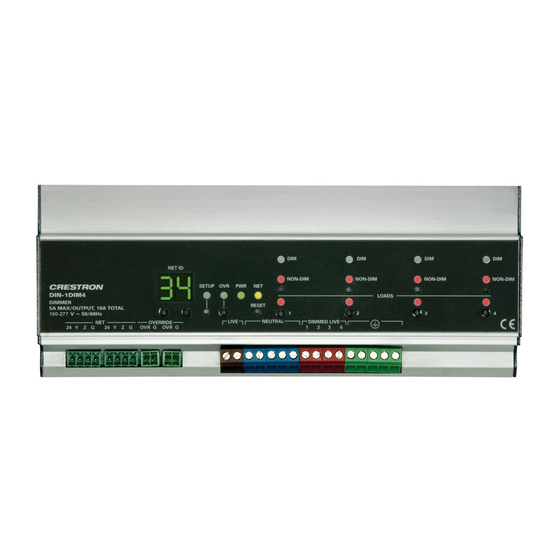

    DIN Rail 4-Channel Dimmer Crestron DIN-1DIM4 Physical Description This section provides information on the connections, controls and indicators available on your DIN-1DIM4. DIN-1DIM4 Physical View 6 • DIN Rail 4-Channel Dimmer: DIN-1DIM4 Operations & Installation Guide – DOC. 6928A...
  • Page 11 95 mm (3.71 in) DIN-1DIM4 Overall Dimensions (Side View) 5 8 m m (2 .2 8 in ) 6 0 m m (2 .3 5 in ) DIN Rail 4-Channel Dimmer: DIN-1DIM4 • 7 Operations & Installation Guide – DOC. 6928A...
  • Page 12 Cresnet NET LED (1) Yellow LED, indicates communication with the control processor RESET (1) Recessed miniature pushbutton, resets internal processor (Continued on following page) 8 • DIN Rail 4-Channel Dimmer: DIN-1DIM4 Operations & Installation Guide – DOC. 6928A...
  • Page 13 Cresnet slave port Maximum wire size: 1.5 mm (16 AWG) 24: Power (24 Volts DC) Y: Data Z: Data G: Ground (Continued on following page) DIN Rail 4-Channel Dimmer: DIN-1DIM4 • 9 Operations & Installation Guide – DOC. 6928A...
  • Page 14 1. Interface connectors for NET and OVERRIDE ports are provided with the unit. 2. Captive screw terminals accept up to 2.5 mm (12 AWG) wires per terminal. 10 • DIN Rail 4-Channel Dimmer: DIN-1DIM4 Operations & Installation Guide – DOC. 6928A...

  • Page 15: Setup

    For more details, refer to “Check Network Wiring” which starts on page Identity Code The Net ID of the DIN-1DIM4 has been factory set to 98. The Net IDs of multiple DIN-1DIM4 devices in the same system must be unique. Net IDs are changed on the front panel of the DIN-1DIM4 or from a personal computer (PC) via Crestron Toolbox™...

  • Page 16: Installation

    NOTE: Regardless of the method used to set the NET ID, a small label (with numbers and letters) is provided on the front panel of the DIN-1DIM4 to document the unit’s Net ID in the case where power is not available. Apply a mark over the digits that correspond to the assigned Net ID.
  • Page 17 DIN rail release tab while snapping the device onto the DIN rail. 3. Tilt the top of the DIN-1DIM4 toward the DIN rail until it is secure on the top edge of the rail. Push the DIN rail release upward to lock the DIN-1DIM4 into place.

  • Page 18: Hardware Hookup

    NOTE: Use copper wire only. For high-voltage connections, use wire rated for at least 75º C (167º F). NOTE: The DIN-1DIM4 power feed must be protected by a 10 A (trip curve C) breaker or equivalent. NOTE: The DIN-1DIM4 outputs must be used for control of permanently installed lighting loads only.
  • Page 19 Crestron DIN-1DIM4 DIN Rail 4-Channel Dimmer When making connections to the DIN-1DIM4, use Crestron power supplies for Crestron equipment. Hardware Connections for the DIN-1DIM4 NET: LIVE: Ground To Control System Line Power Input and Other Cresnet from AC Power Devices...

  • Page 20: Programming Software

    Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at www.crestron.com/support.

  • Page 21: Programming With Simpl Windows

    The lighting system includes the control system logic program, touchpanel projects and keypad programming, documentation and real- time lighting adjustment capabilities. As with all Crestron software, D3 Pro provides extensive right-click and drag-and-drop functionality in addition to convenient keyboard shortcuts for frequently used functions and commands.
  • Page 22 Net ID as shown in the following illustration. C2Net Device, Slot 9 3. Additional DIN-1DIM4 devices are assigned different Net ID numbers as they are added. 4. If necessary, double click a device to open the “Device Settings”...

  • Page 23: Example Program

    Detail View. Each signal in the symbol is described in the SIMPL Windows help file (F1). Example Program An example program for the DIN-1DIM4 is available from the Crestron website (www.crestron.com/exampleprograms). DIN Rail 4-Channel Dimmer: DIN-1DIM4 • 19 Operations & Installation Guide – DOC. 6928A...

  • Page 24: Uploading And Upgrading

    (such as changing the device ID or creating an IP table) to ensure proper functioning. Establishing Communication Use Crestron Toolbox for communicating with the DIN-1DIM4; refer to the Crestron Toolbox help file for details. There is a single method of communication: indirect communication. Indirect Communication PC Running...

  • Page 25: Programs And Firmware

    Crestron website as new features are developed after product releases. One has the option to upload programs via the programming software or to upload and upgrade via the Crestron Toolbox. For details on uploading and upgrading, refer to the SIMPL Windows help file or the Crestron Toolbox help file.

  • Page 26: Operation

    Crestron DIN-1DIM4 Operation NET ID Use the NET ID buttons to change the Net ID of the DIN-1DIM4. For information on Net ID, refer to “Identity Code” which starts on page 11. Manual The lighting level of each output can be manually controlled from the Control front panel.
  • Page 27 * Once a program has been downloaded to the DIN-1DIM4, the manual selection of load types will be restricted. For example, if the program defines a channel as non-dim, it cannot be set to dim locally.
  • Page 28 The NON-DIM LED will illuminate when operating as a switch. Operating mode should be set to NON-DIM when controlling non-dimmable fixtures. 24 • DIN Rail 4-Channel Dimmer: DIN-1DIM4 Operations & Installation Guide – DOC. 6928A...

  • Page 29: Problem Solving

    Crestron DIN-1DIM4 DIN Rail 4-Channel Dimmer Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. DIN-1DIM4 Troubleshooting TROUBLE POSSIBLE CORRECTIVE CAUSE(S) ACTION Device does not...
  • Page 30 CORRECTIVE CAUSE(S) ACTION Unit ignores Unit is in Override Take out of Override Cresnet mode. mode by pressing OVR commands. button or releasing override contact closure. 26 • DIN Rail 4-Channel Dimmer: DIN-1DIM4 Operations & Installation Guide – DOC. 6928A...

  • Page 31: Check Network Wiring

    Calculate CAUTION: Use only Crestron power supplies for Crestron equipment. Power Failure to do so could cause equipment damage or void the Crestron warranty. CAUTION: Provide sufficient power to the system. Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (www.crestron.com/calculators).
  • Page 32 DIN Rail 4-Channel Dimmer Crestron DIN-1DIM4 NOTE: All Crestron certified Cresnet wiring must consist of two twisted pairs. One twisted pair is the +24V conductor and the GND conductor and the other twisted pair is the Y conductor and the Z conductor.

  • Page 33: Reference Documents

    Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

  • Page 34: Return And Warranty Policies

    Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures.
  • Page 35 Crestron DIN-1DIM4 DIN Rail 4-Channel Dimmer This page is intentionally left blank. DIN Rail 4-Channel Dimmer: DIN-1DIM4 • 31 Operations & Installation Guide – DOC. 6928A...
  • Page 36 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6928A 15 Volvo Drive Rockleigh, NJ 07647 (2026315) Tel: 888.CRESTRON 12.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
