INSTRUMENT AND CONTROL FUNCTIONS

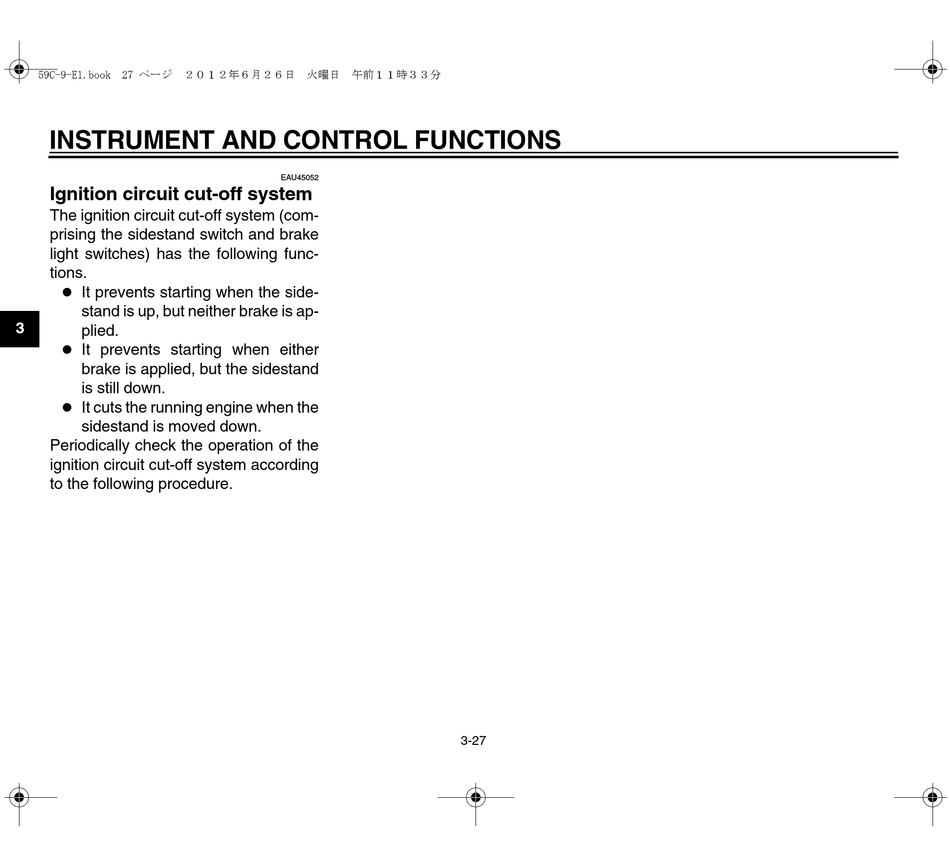

Ignition circuit cut-off system

The ignition circuit cut-off system (com-
prising the sidestand switch and brake
1
light switches) has the following func-
tions.
2

It prevents starting when the side-
stand is up, but neither brake is ap-
3
plied.

It prevents starting when either
brake is applied, but the sidestand
4
is still down.

It cuts the running engine when the
5
sidestand is moved down.
Periodically check the operation of the
6
ignition circuit cut-off system according
to the following procedure.
7
8
9
EAU45052
3-27
