Polycom SoundStructure C16 Hardware Installation Manual page 24

Hardware Installation Guide for the Polycom SoundStructure C16, C12, C8, And SR12
2 - 14
Data
+12V
GND
RS-232
The RS-232 interface is capable of running up to 115,200 bps and has a default
rate of 9,600 bps, eight data bits, no parity, one stop bit (8-N-1). The pinout of

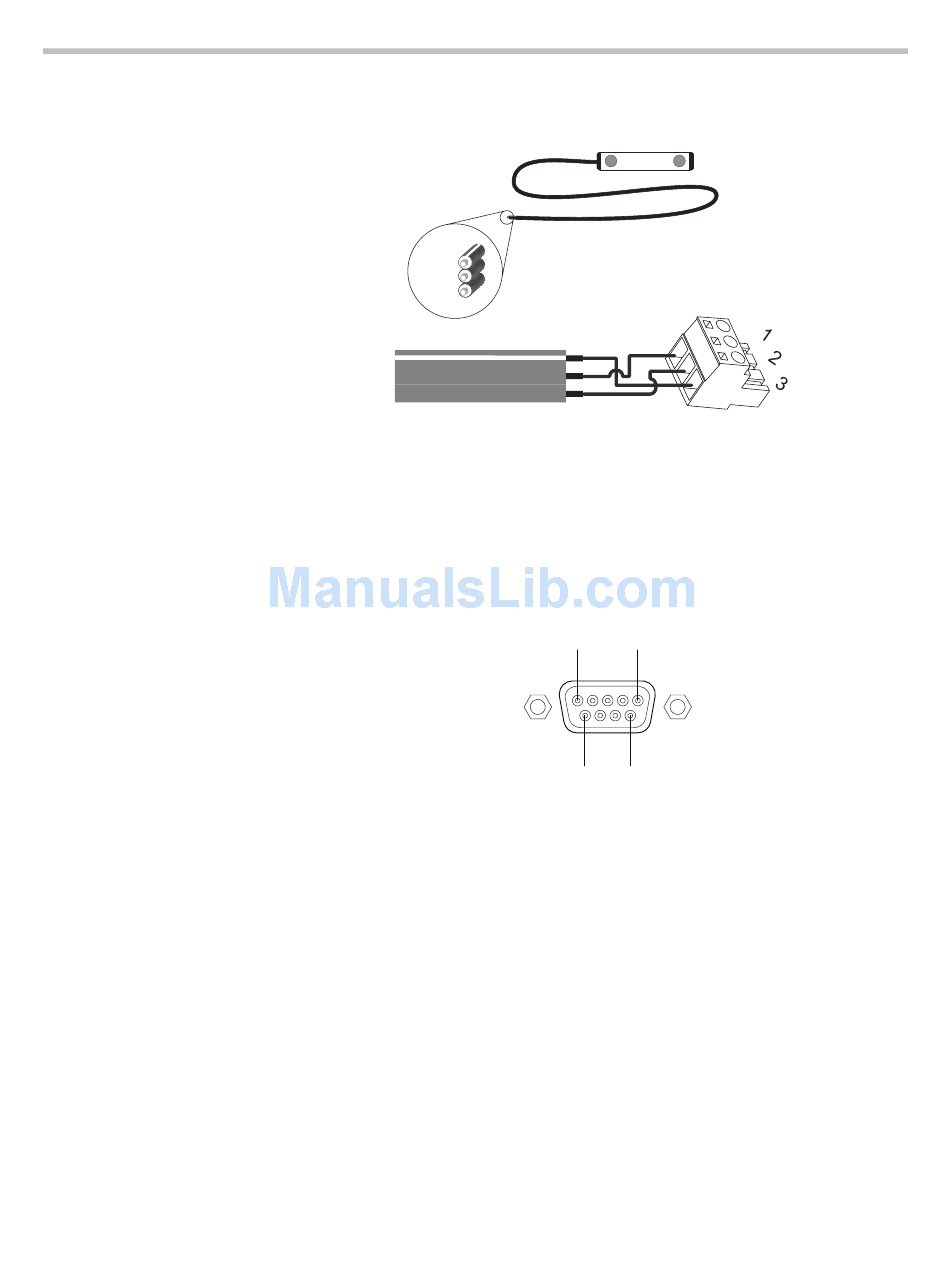

the connection and the recommended straight-through cabling to a control
system is shown in the following figure.
480-00 Series
Pin 5 Pin 1
Pin 9 Pin 6
