Hardware Installation Guide for the Polycom SoundStructure C16, C12, C8, And SR12
Warning
Warning
2 - 8
have an RJ45 plug form-factor (with a different pinout from standard Ethernet
cables - see Conference Link2
custom length cables using standard RJ45 plugs and crimping tools.
Connecting a Conference Link2 cable to the Ethernet interface could damage the
connecting device and/or the SoundStructure device.

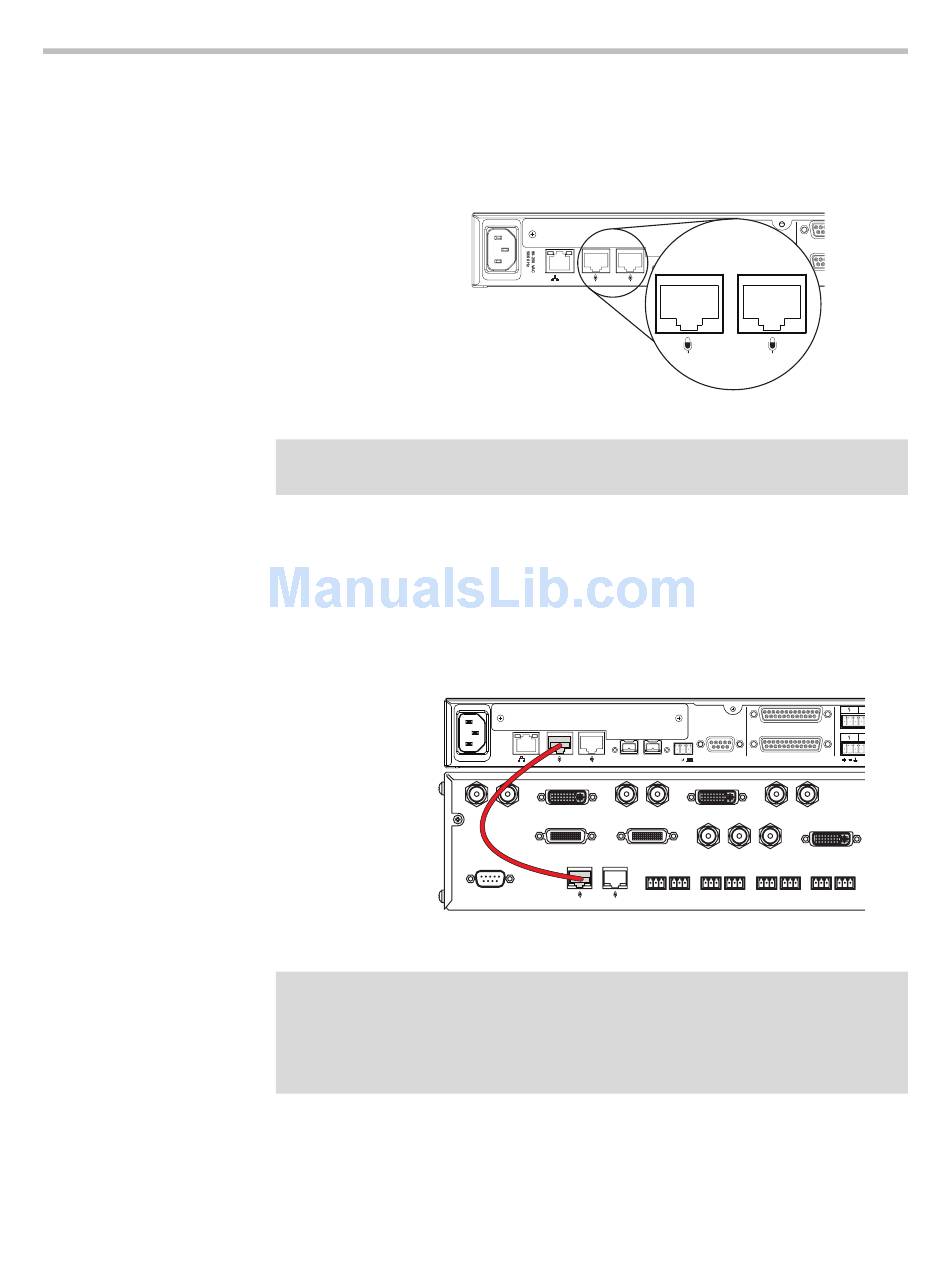

Using the supplied 18" Conference Link2 cable, connect the left Conference
Link2 port (when viewed from the rear panel) on the SoundStructure device
to a Polycom microphone Input port on the Polycom HDX system as shown in
the following figure. If there are multiple SoundStructure devices linked
together with OBAM Link, only one SoundStructure device should be
connected to a Polycom HDX system.
A CAT5e cable that is terminated with standard T568A or T568B pin/pair
assignments will not work with Conference Link2. The Conference Link2 pinout is
different from T568A or T568B pin/pair termination.
Do not use a standard Ethernet cable to connect SoundStructure to a Polycom HDX
system.
If a longer Conference Link2 cable is required, one may be constructed using
the custom pinout (see
eight conductors, e.g., RJ45) connectors, shielded Cat5e cable or better, and
for pinout details) to enable field termination of
LAN C-LINK2
LAN C-LINK2 OBAM
IN
Conference Link2) and standard 8P8C (eight positions,
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
R
RS-232
R
OBAM IR
IN OUT 12V
C-LINK2
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
REMOTE CONTROL 1
RS-232
REMOTE CONTROL 2
IR
OUT 12V
