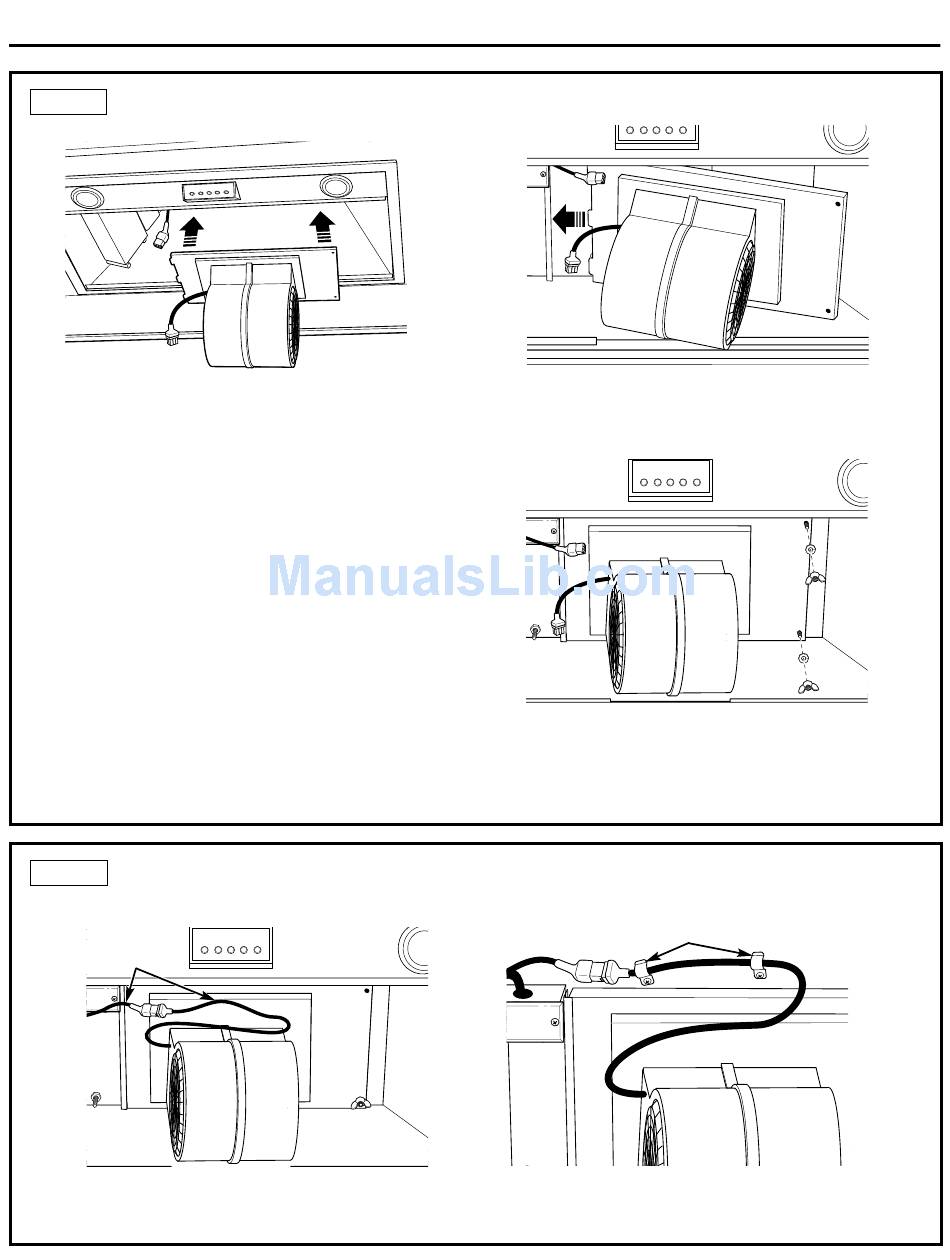

STEP 5 INSTALL BLOWER MOTOR

1. Pick up blower motor and rotate so tabs align
with damper plate bracket.
2. Insert blower motor into insert sleeve through
cutout opening of custom cabinet frame.

STEP 6 CONNECT WIRING HARNESS

NOTE: Connect three routing clips annd two wiring harnesses on double blower models.
Wiring
harness
1. Locate both ends of wiring harness.
2. Connect wiring harness by inserting male into
female opening.
Installation Instructions
21
3. Place blower motor on damper plate assembly
by sliding blower motor tabs into slots of damper
plate assembly.
4. While holding blower motor in place, lift right side
so that blower motor bolt holes align with bolts
protruding from damper plate assembly and
secure with lock washers and wing nuts (hand
tighten).
Brackets
3. Carefully route wiring harness and ground wire
through two clips attached to blower plate
assembly.
