GE MONOGRAM ZVC48LSS Dimensions And Specifications

ZVC48LSS
GE Monogram
Custom Insert Liner
The custom canopy must be sized to fit the insert sleeve.
Construct the canopy with an opening that is:
38-3/4"W x 13-3/16"D
The opening must be constructed of 3/4" thick material to
allow the sleeve locking clips to engage.
The Supplied Liner
A stainless steel liner is shipped with each hood insert. This
non-combustible liner protects the underside of the canopy.
Custom Liner
If you are not using the supplied liner, you may construct a
custom non-combustible liner. Use the supplied liner as a
template. The opening must be 38-3/4"W x 13-3/16"D.
3/4" thick material must surround the opening to allow the
sleeve locking clips to engage. The insert sleeve inside the
cabinet should be positioned 1/2" from the rear wall so that
the center of the 8" duct is 5-1/2" from the rear wall.
For answers to your Monogram,
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
800.626.2000.

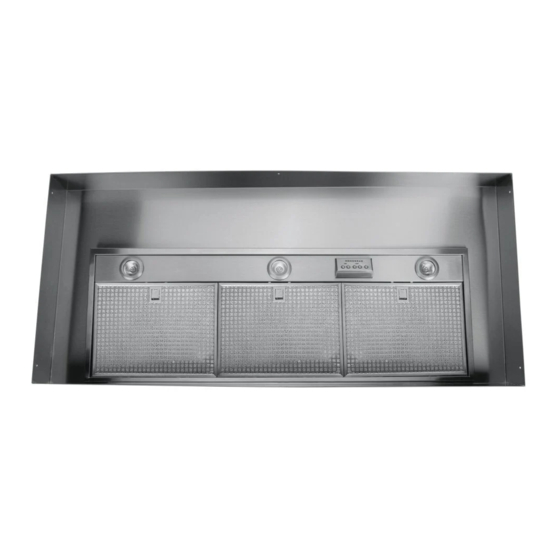

48" Custom Hood Insert
®
GE Profile or
® ™
® service,

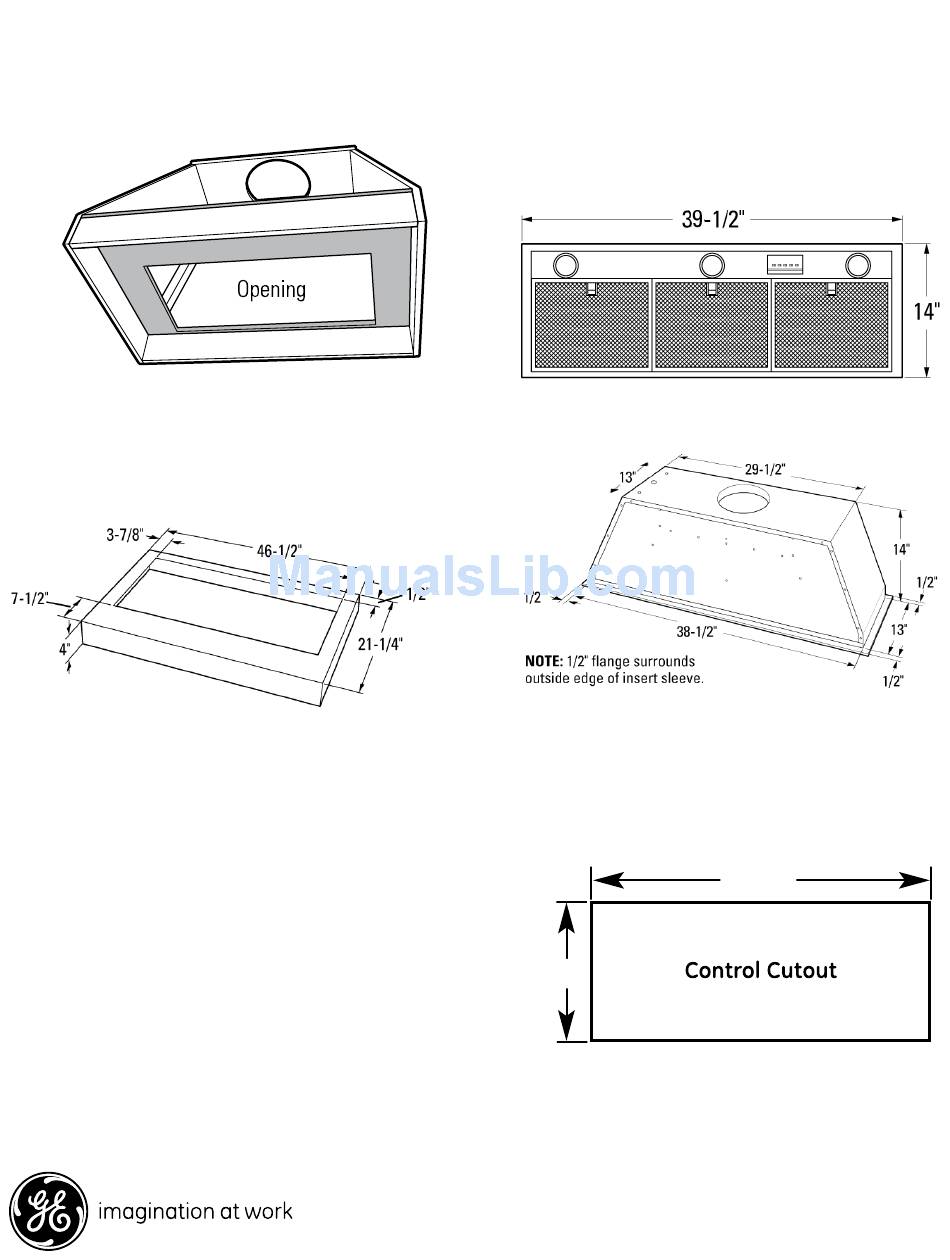

Dimensions and Specifications (in inches)

Outside Dimensions

The Insert Sleeve
Remote Location for the Control
The control may be removed from the hood and installed
into a wall or countertop. A 30-ft length of wire is supplied to
accommodate most installations. A blanking plate covers the
opening when the controls are removed. The overall size of
the control is 4-1/4" wide and 2-1/4" deep.
1-11/16"
We recommend that the cutout in granite or other hard
surfaces be made before the countertop is installed.
Specification Created 10/06
3-11/16"
130670
